Ubiquiti NanoBeam M2 400
We are sorry, this product is no longer in our offer.
Ubiquiti NanoBeam M2 400
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 GHz
WiFi standards:
802.11b/g, airMAX, 802.11n
Transmission speed - 2.4GHz [Mb/s]:
300
Tx power 2.4GHz [dBm]:
28
Security:
WPA2 AES
2.4GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
18
Connectors and Interfaces
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
6
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 70
Weight [g]:
1795
Width [mm]:
400
Height [mm]:
400
Depth [mm]:
289
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
560
RAM [MB]:
64
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Transparent (bridge mode)
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description
UBNT NBE-M2-400 is a powerful completely outdoor unit including 2x 18dBi (2x2 MIMO) antennas for the 2.4GHz band as a PtP or PtMP solution. The unit allows transmission speed up to 300Mbps.
Inside NanoBeam is a powerful MIPS processor Atheros 74KC with 560MHz frequency, 64MB RAM DDR2 memory and 8MB of Flash memory. Unit has also one ethernet port supports 10/100Mbps speed, and passive PoE 24V / 0.5A (802.3af PoE is not supported).

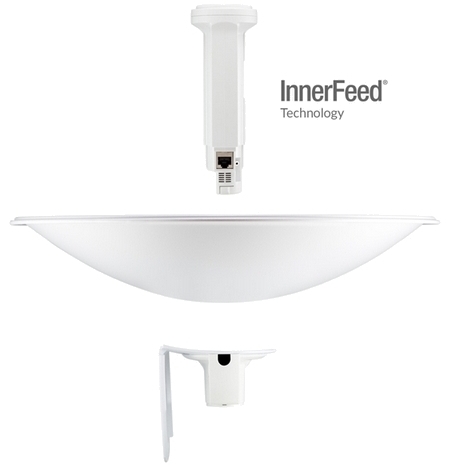

Ubiquiti’s InnerFeed™ technology integrates the radio into the feedhorn of an antenna, so there is no need for cables to connect the radio to the antenna. This improves performance because it eliminates cable losses.
The form factor of the NanoBeam® features the highest gain for its size. The NanoBeam’s excellent beam directivity provides the best performance in high-noise environments.
Ubiquiti’s airMAX® technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in multipoint networks.

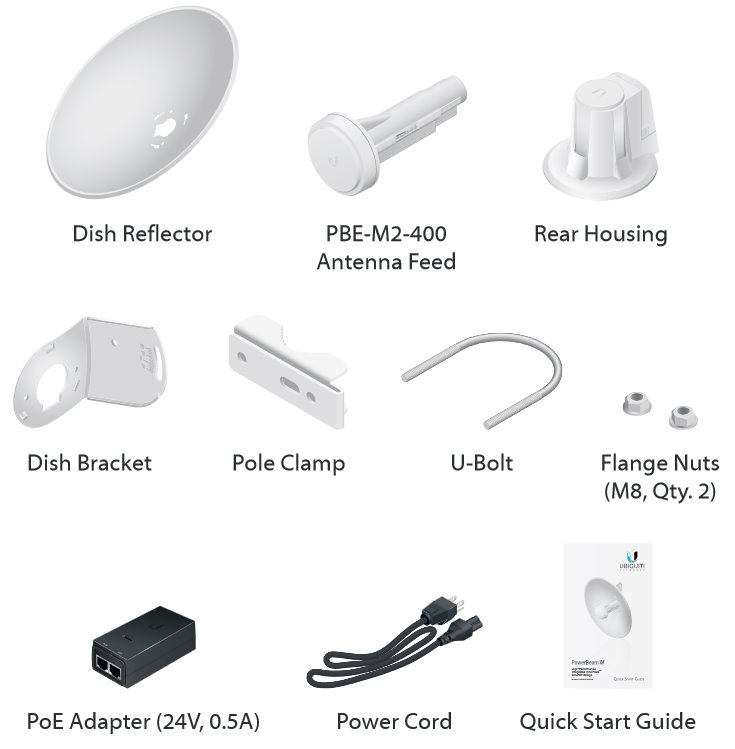

Package contains
Download
Datasheet Návod k použití Quick Start GuideGPSR
