Ubiquiti NanoBeam NBE-5AC-Gen2, 19dBi - Bazar
Your price excl. VAT
67.47 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 67.54 EUR |
| Your price incl. VAT (21%) | 81.72 EUR |
| blank |
Availability
at our branches
at our branches
Per orig. box:
10 pcs.
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | B10900390 | |
| Part No. | B-NBE-5AC-Gen2 | |
| Warranty | 6 months | |
You have a choice of 2 variantscompare all
Unpacked / rozbalené
B-NBE-5AC-Gen2
Unpacked
67.47 EUR
Quick-Mount
17.03 EUR excl. VAT
20.61 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
airMAX ac
Transmission speed - 5GHz [Mb/s]:
866
Tx power 5GHz [dBm]:
25
Security:
WPA2 AES
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Internal antennas:
2
Antenna gain [dBi]:
19

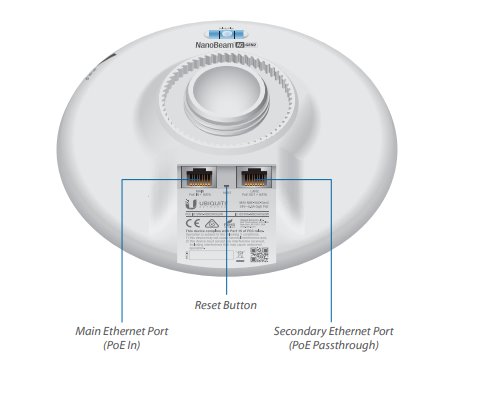

Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
Other features:
WiFi management radio
Power
Power over Ethernet:
24V DC
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
8,5
Physical characteristics
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 80
Weight [g]:
530
Width [mm]:
189
Height [mm]:
189
Depth [mm]:
125
Hardware
CPU:
Atheros MIPS 74KC
CPU frequency [MHz]:
720
RAM [MB]:
128
Software
Operating mode:
Client, Repeater, AP Router, Access Point, Client Router (wisp)
IPv6 support:
Yes
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Video
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
The product is complete only unpacked.

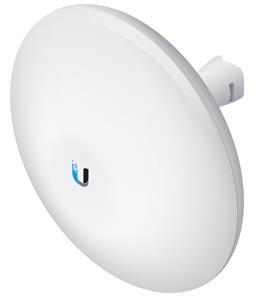

Incorporating innovative industrial design with proprietary airMAX ac technology, the NanoBeam AC is ideal for CPE deployments requiring maximum performance from the smallest possible footprint.
Management Wi-Fi Radio
The NanoBeam AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge Protection
The NanoBeam AC features enhanced protection against ESD events.

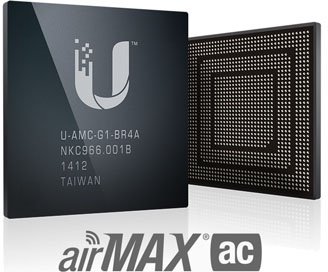

Superior Processing
Ubiquiti's airMAX engine with custom IC dramatically improves TDMA latency and network scalability. The custom silicon provides hardware acceleration capabilities to the airMAX scheduler, to support the high data rates and dense modulation used in airMAX ac technology.

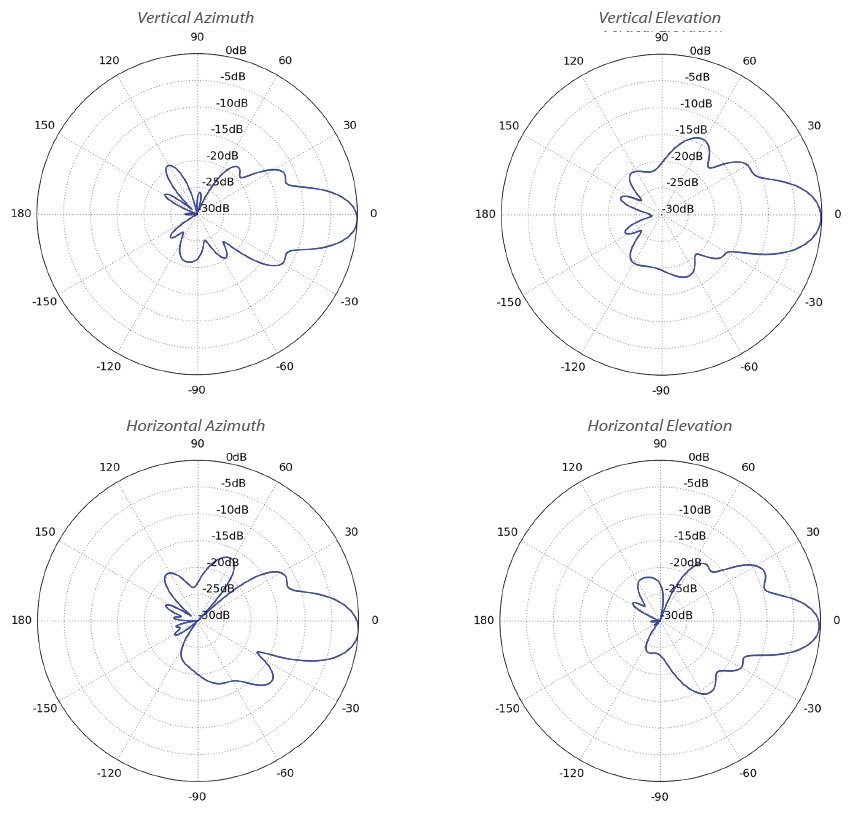

Incredible Antenna “Beam” Performance
The form factor of the NanoBeam® AC features the highest gain for its size. The NanoBeam AC’s excellent beam directivity provides the best performance in high-noise environments.

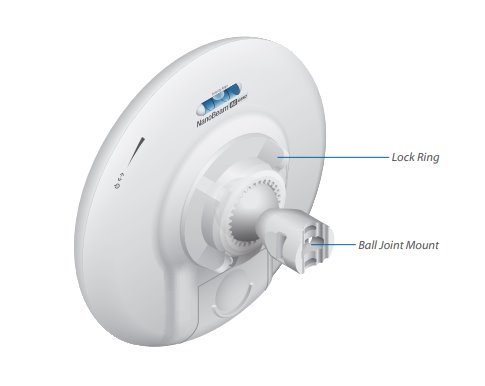

Plug and Play Installation
The NanoBeam AC mounts to a variety of surfaces including poles or walls, and offers the freedom of three-axis alignment. No screws are required for pole-mounting, and only a single wall screw (not included) is required for wall-mounting.
Now with airOS 8
airOS 8 provides powerful features, including airMAX ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Package contains
Download
AirOS 8 User guide Datasheet Návod Quick GuideGPSR
