Ubiquiti Pro XG 10 PoE switch
Ubiquiti Pro XG 10 PoE switch
×
0/0
New product
Your price excl. VAT
574.07 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 574.14 EUR |
| Your price incl. VAT (21%) | 694.71 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904521 | |
| Part No. | USW-Pro-XG-10-PoE | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(10) 10G/5G/2.5G/1G/100M
Optical interfaces:
(2) 1G/10Gbps
Other features:
Touchscreen
Power
Power type:
Mains power (230V), UniFi SmartPower RPS
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
Redundant power supply:
Yes
PoE Out ports:
10
PoE budget [W]:
400
Max. power consumption [W]:
65
Power via connector/terminal:
52V DC, 230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40

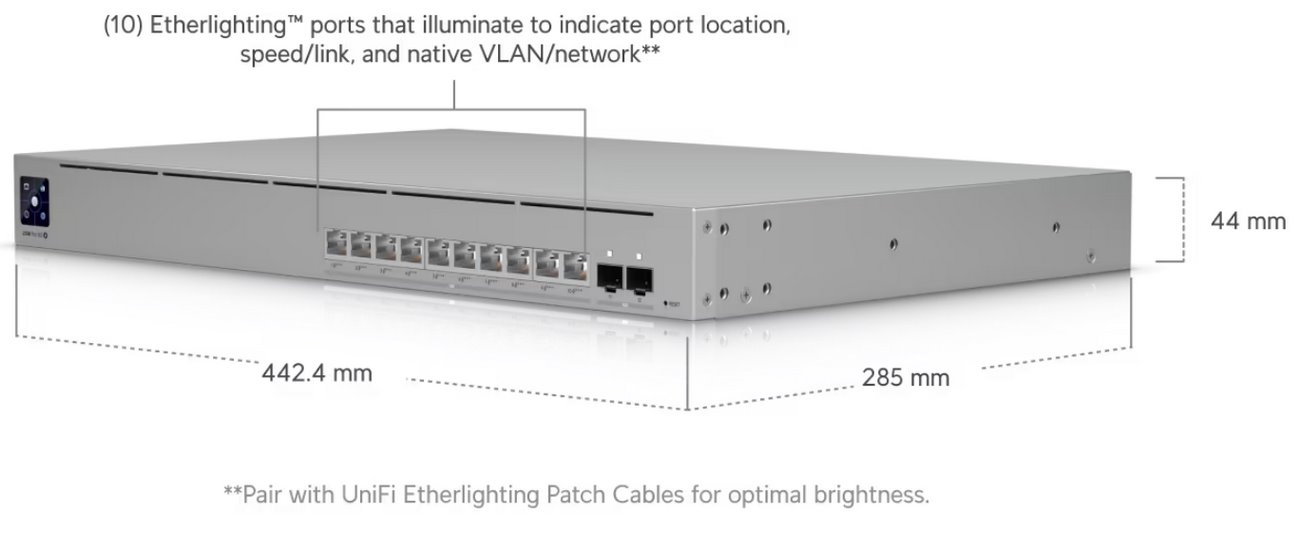

Width [mm]:
442
Height [mm]:
44
Depth [mm]:
285
General
Switchning capacity [Gbps]:
240
MAC address table:
32000
Packet forwarding rate [Mpps]:
179
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping, L2, L3
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

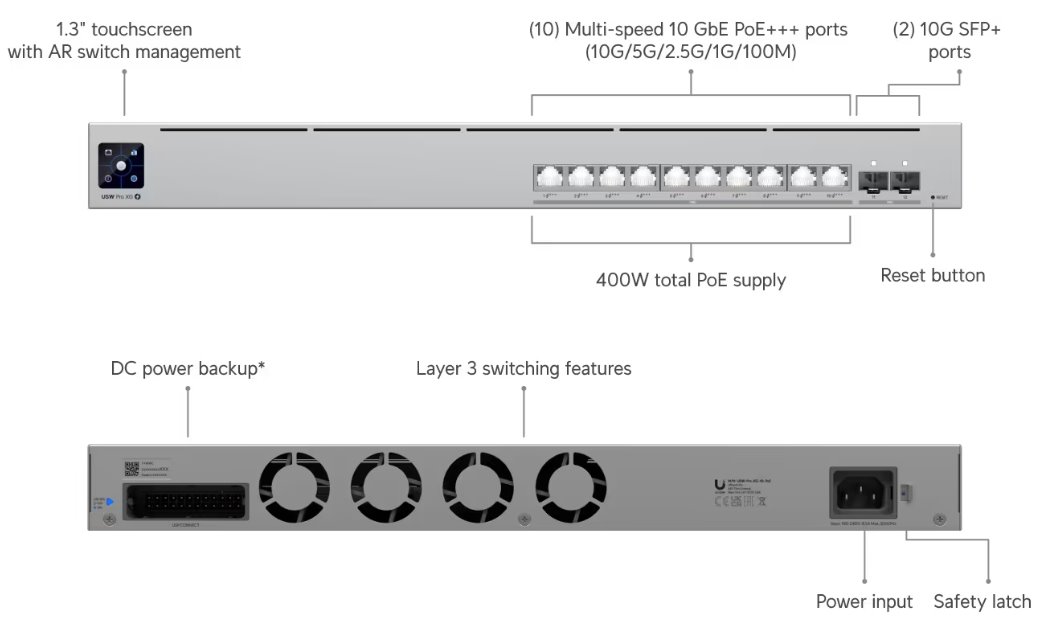

The UniFi Switch USW-Pro-XG-10-PoE is a managed L3 PoE switch with a switching capacity of 240 Gbps, (10) 10-Gigabit LAN ports and two SFP+ (1/10Gbps) ports. All Ethernet ports support PoE+++ 802.3af/at/bt PoE-Out with an output power of up to 90W/port and a total PoE budget of 400 W. The ports feature Etherlighting, which allows you to illuminate ports in different colors to indicate port location, speed/connection, and VLAN. The switch is powered via 230V AC, and the USP RPS DC port serves as a backup in case of primary power failure. Maximum power consumption including PoE is 520W.
Key Features
Management via UniFi Network Server
The USW-Pro-XG-10-PoE does not have a web interface but is centrally managed through the UniFi Network Server with support for the UniFi mobile app. It offers an extensive set of advanced L2 and L3 switching protocols and features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch functions through a graphical user interface from anywhere.

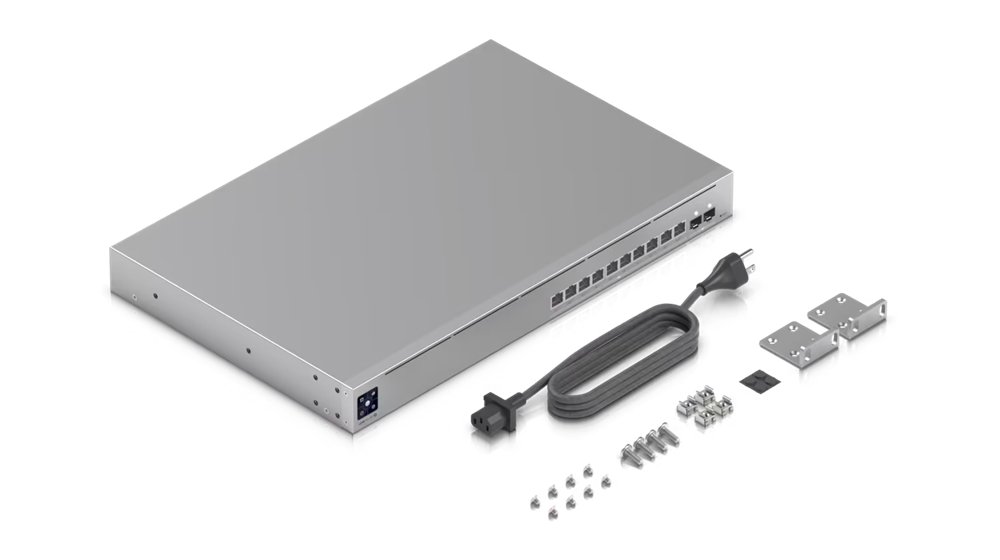

Package Contents
Download
Datasheet Qucik GuideGPSR
