Ubiquiti ToughSwitch PRO
We are sorry, this product is no longer in our offer.
Ubiquiti ToughSwitch PRO
×
0/0
Sale
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps + (1) 10/100Mbps (managment)
Management LAN:
(1) 10/100Mbps
USB ports 2.0:
1 (reserved for future use)
Power
Output Power [W]:
150
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
Passive 24V, Passive 48V
PoE Out ports:
8
Output Voltage [V]:
24, 48
PoE budget [W]:
150
Output Current [A]:
6,25
Max. power consumption [W]:
150
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Desktop
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-25 up to 55
Width [mm]:
210
Height [mm]:
41
Depth [mm]:
186
Software
Web management:
Yes
Management:
Web management
Features:
VLAN
Default IP address:
192.168.1.20
Default login and password:
ubnt / ubnt
Product description

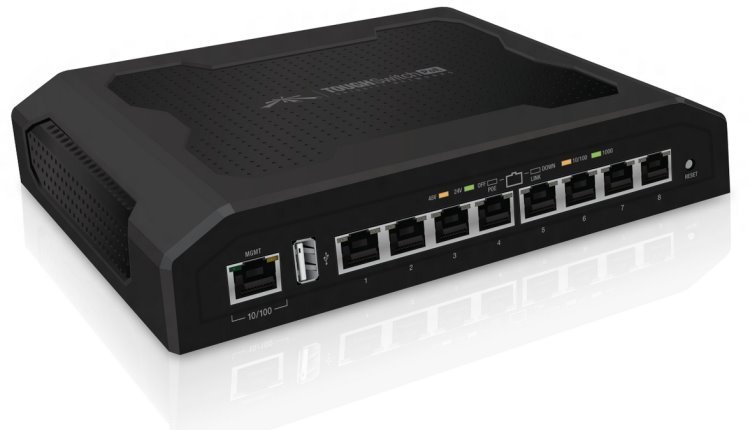

TOUGHSwitch PRO is a PoE switch with a built-in 150W industrial power supply. TOUGHSwitch PRO is able to supply up to 8 devices with passive PoE 24V or 48V. The voltage can be set for individual ports in the switch configuration.
Unified power supply for everything
Using the manager, it is possible to switch between 24V and 48V PoE power supply on each port separately. Suitable for powering PowerBeam units (24V) as well as UniFi PRO (48V).
Intuitive web interface
Web management has been built from the beginning to be simple and very intuitive. Managmant allows you to configure eg:
Package contains
Download
CE Datasheet FirmwareGPSR
