Ubiquiti U6-IW - UniFi6 In-Wall
Ubiquiti U6-IW - UniFi6 In-Wall
×
0/0
Your price excl. VAT
178.90 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 178.97 EUR |
| Your price incl. VAT (21%) | 216.55 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903472 | |
| Part No. | U6-IW | |
| Warranty | 24 months | |
RPI303-CK-RM
76.89 EUR excl. VAT
93.12 EUR incl. VAT
In Stock
UAP-IW-P
2.78 EUR excl. VAT
3.36 EUR incl. VAT
In Stock
MAXPI30
14.39 EUR excl. VAT
17.50 EUR incl. VAT
In Stock
U-POE-af
6.95 EUR excl. VAT
8.49 EUR incl. VAT
In Stock
POE-48-24W-G
12.80 EUR excl. VAT
15.57 EUR incl. VAT
In Stock
RM-4PCS-MS
0.95 EUR excl. VAT
1.15 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11ax, 802.11ac, 802.11n, 802.11a, 802.11b/g
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
4804
Transmission speed - 2.4GHz [Mb/s]:
574
Tx power 2.4GHz [dBm]:
22
Tx power 5GHz [dBm]:
26
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
4 x 4
Type of antenna:
Built-in
Internal antennas:
4
Roaming:
Yes
Antenna gain [dBi]:
5, 6
Connectors and Interfaces
LAN speed:
(5) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 44 .. 57V DC
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
13,5
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
460
Width [mm]:
96
Height [mm]:
140
Depth [mm]:
31
Software
Operating mode:
Access Point
IPv6 support:
Transparent (bridge mode)
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description
U6-IW is a MU-MIMO WiFi 6 access point from the UniFi family, which is designed to be built into a data box on the wall. The wireless part is Dual Band, in the 5 GHz band it supports 4x4 MU-MIMO with a maximum modulation speed of 4804 Mbps and in of the 2.4 GHz band, it is 2x2 MIMO with a modulation speed of 574 Mbps. Power supply is 802.3af/at or passive PoE 44 to 57 V DC. In the case of using the PoE passthrough function, the maximum power on the output port is 15.4 W. The device is supported by UniFi Controller version 6.4.52 and later.

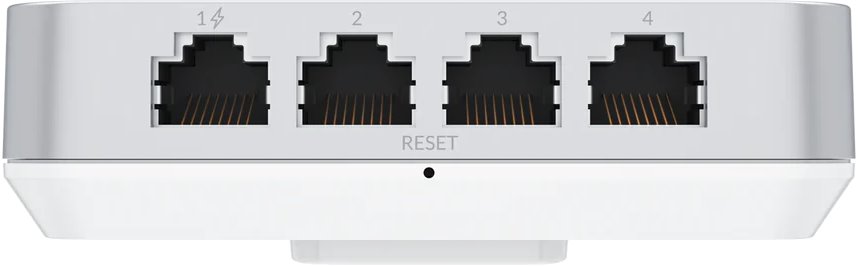

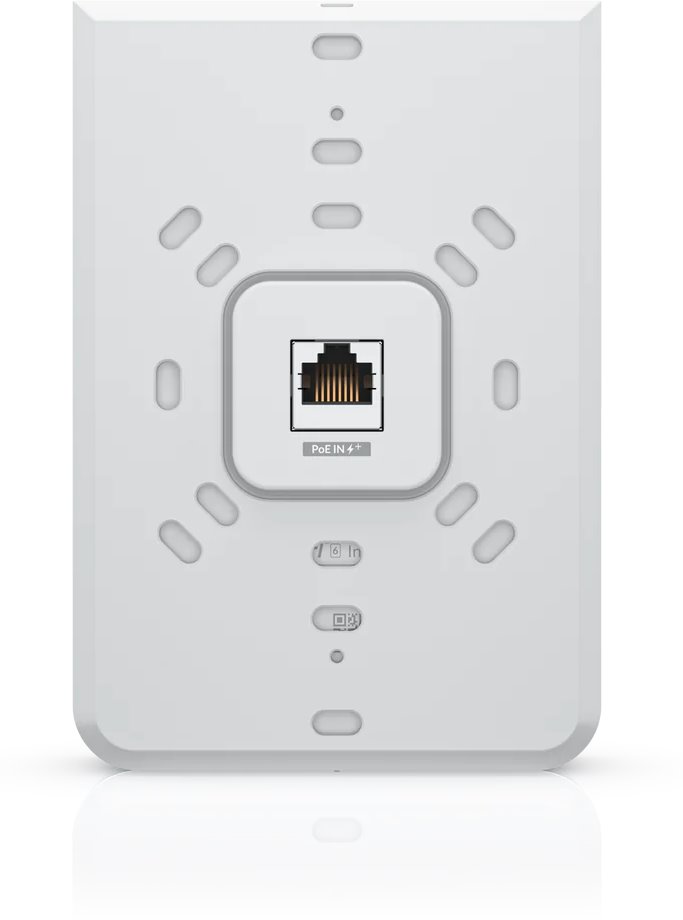

In addition to the incoming Gigabit port on the back, it also has another 4 Gigabit ports on the bottom, where the PoE passthough function can be used on the first of these ports.
Central control of the unit
For the device, you need to download the original software called UniFi controller from the official website, thanks to which the entire network can be controlled. The indisputable advantage of the UniFi controller is that it is completely free without any restrictions! This central management will allow you to upload maps and set basic parameters such as SSID, guest account, start page, traffic statistics and the list and status of associated clients always easily and quickly.
Advantages of the UniFi solution

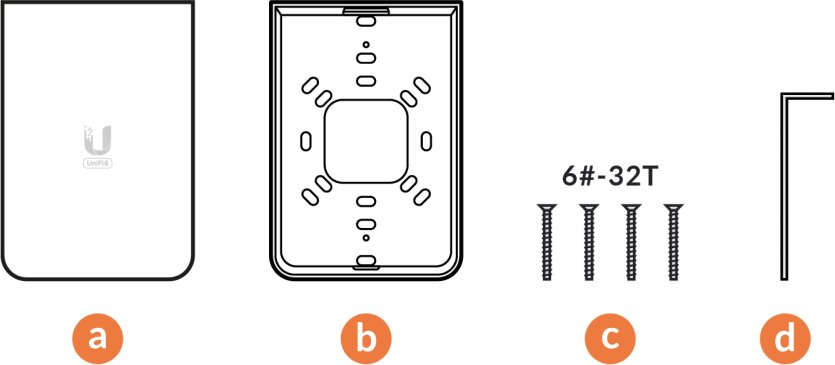

Package contents
Download
Datasheet Installation GuideTechnical support for this product is available on rma@discomp.cz email or sending a request via web form. Our technical support is available during this business hours.
