Ubiquiti UA-Hub-Door - UniFi Access Hub

Product description

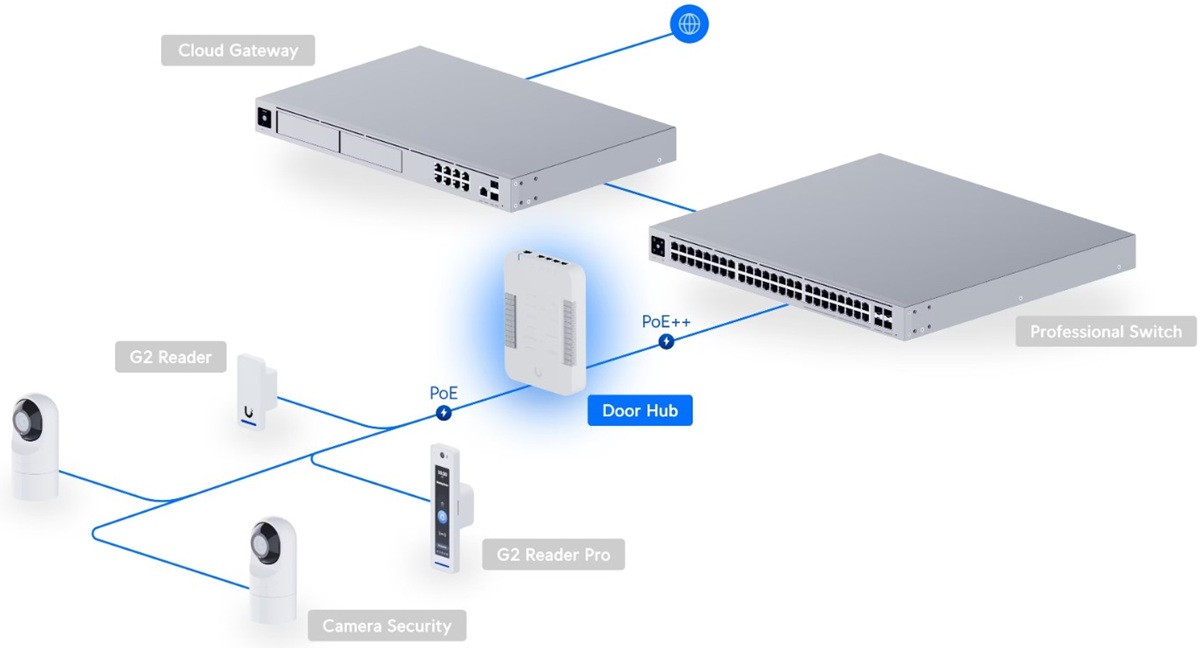

The UniFi Access Hub is an intelligent single-door IP controller that is part of the UniFi Access solution. The universal interface supports most electronic and magnetic locks and is compatible with 12V accessories (buttons, alarms, motion sensors, etc.).

• Integration with UniFi Access Controller
• Complete user management, role settings, NFC card assignments, statistics, control logs, etc.
• Setting access permissions
• Remote management of UniFi Access devices via a single, simple interface

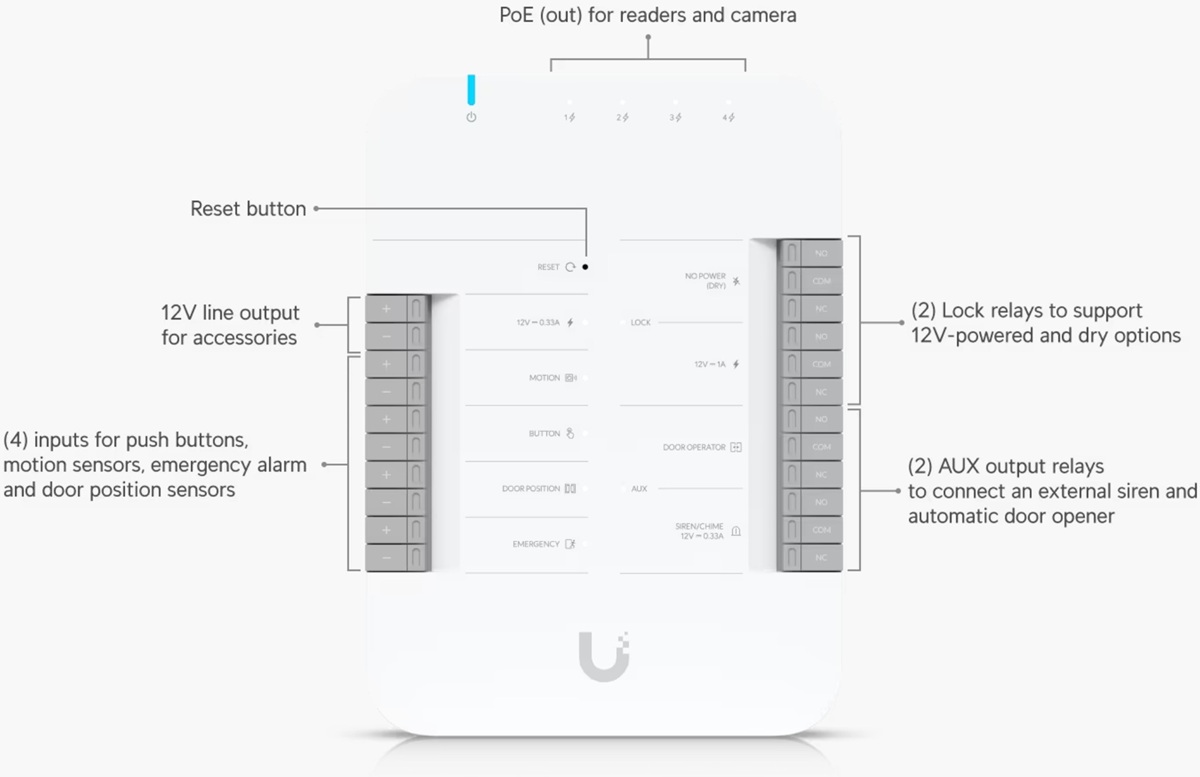

Inputs and Outputs

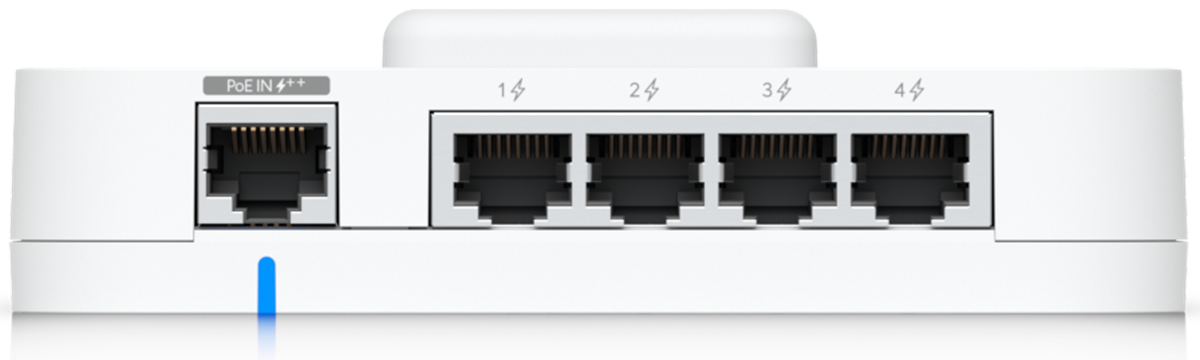

• (1) Input port for powering via 802.3bt (PoE++) switch
• (4) RJ-45 PoE+ 802.3af ports for connecting two UniFi Access readers and two UniFi Protect cameras or UniFi Protect doorbells

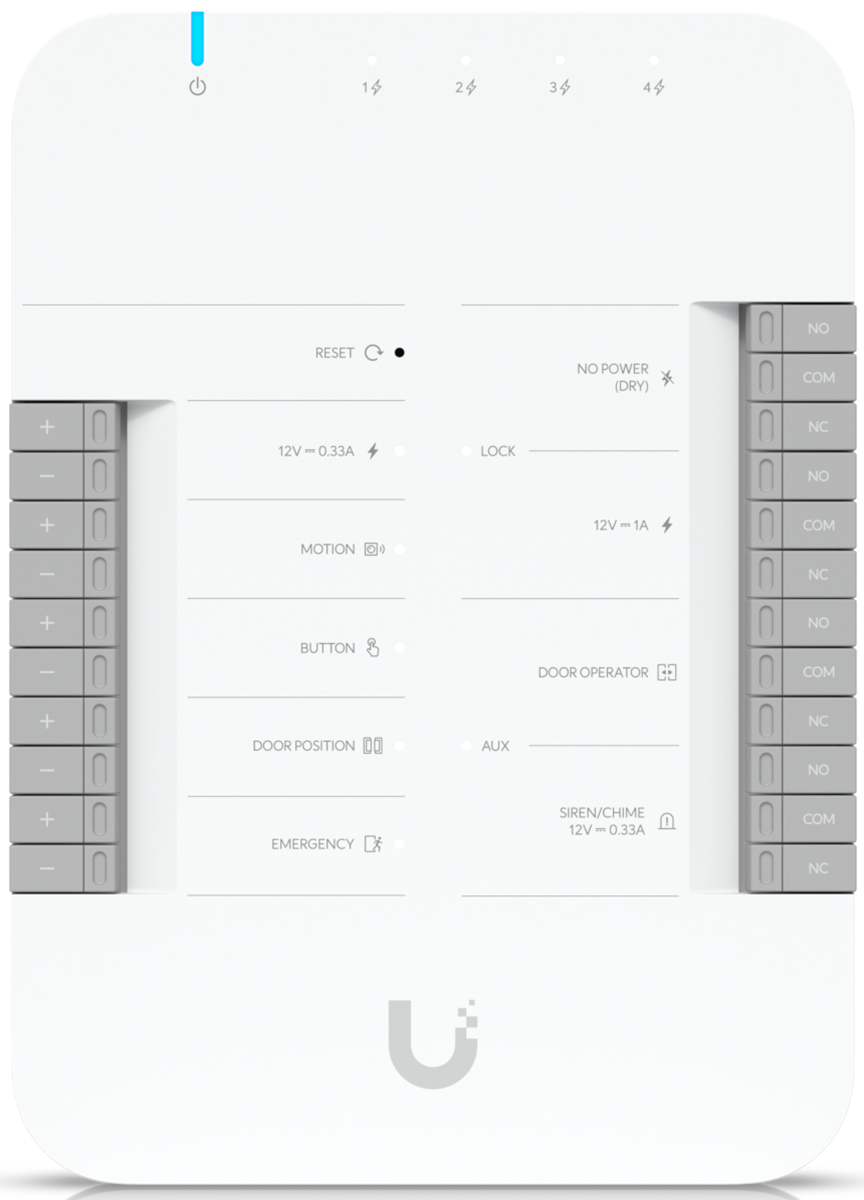

• (2) Dry contact and (2) powered relays for locks and auxiliary devices (30V DC)
• (4) Input relays for door control (entry, exit, remote opening, and position)
• (1) Power supply (12V DC / 0.33 A) for external devices

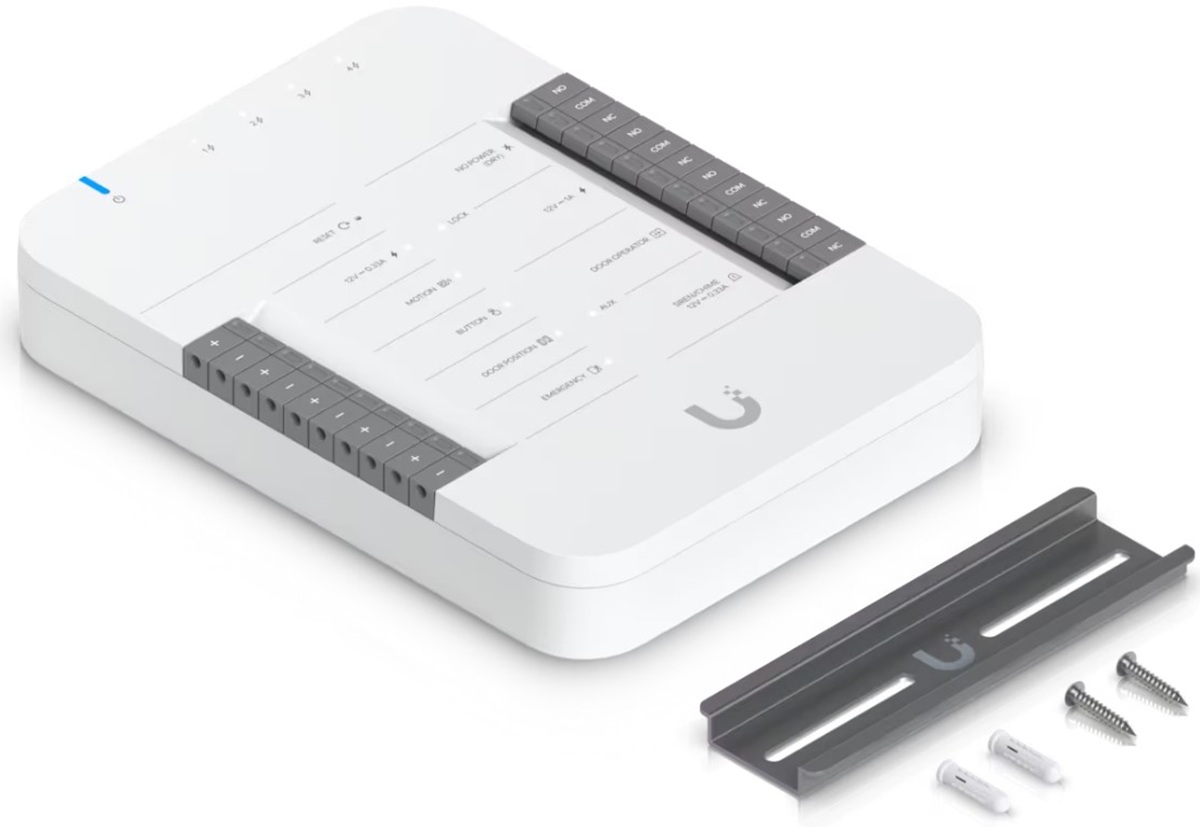

Package Contents

• Device
• Mounting accessories for wall installation
