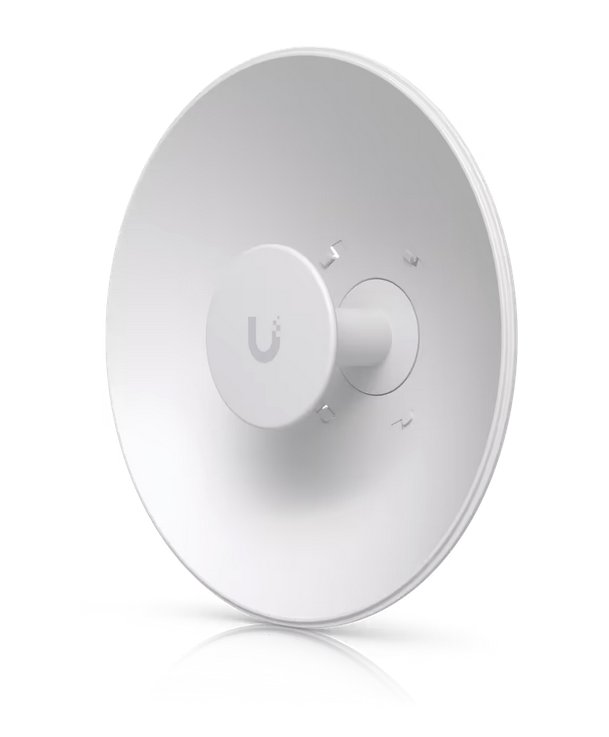

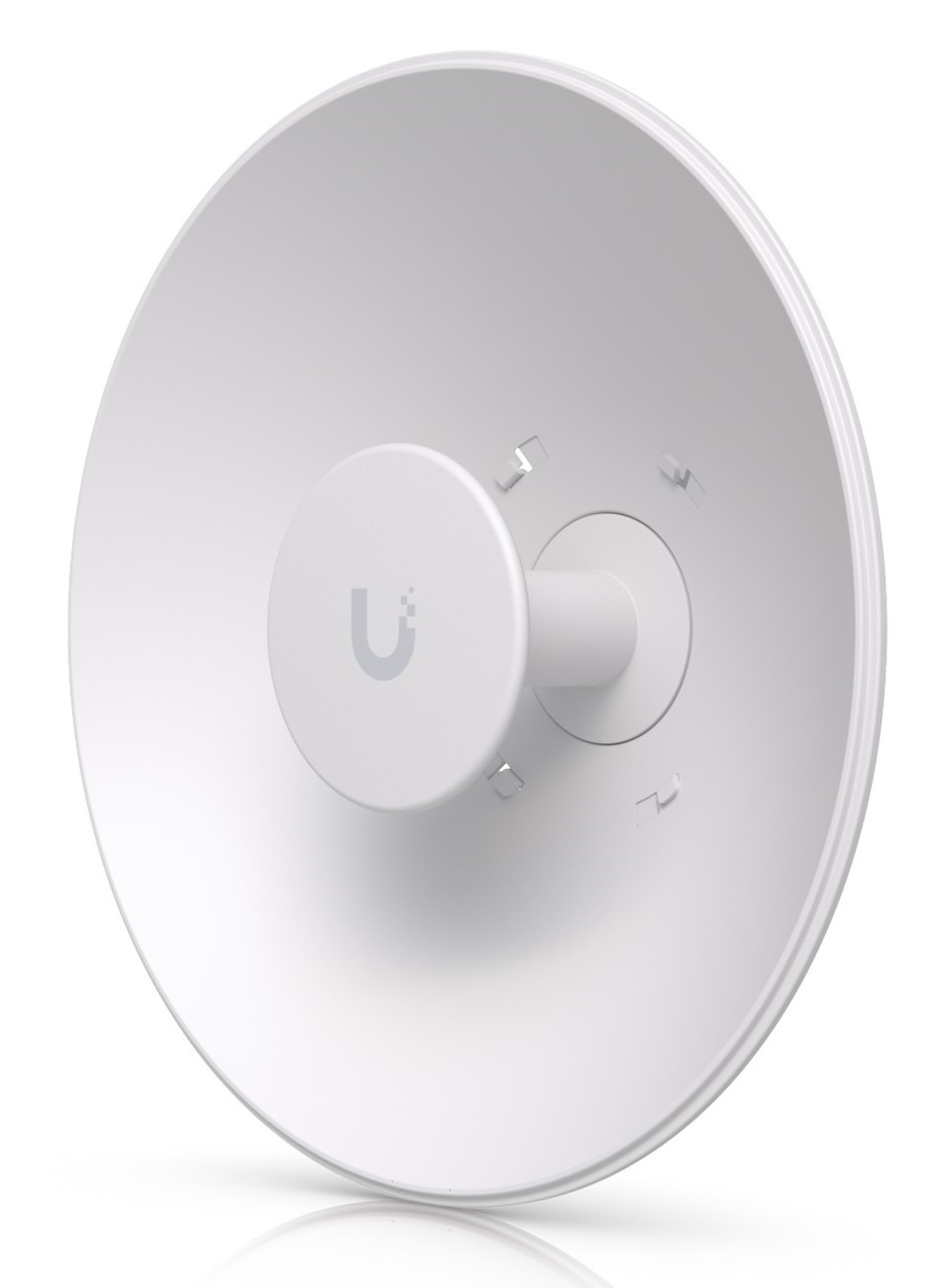

Ubiquiti UISP-Dish-Mini parabolic antenna, 26dBi, 5-7GHz
Your price excl. VAT
128.03 EUR
| Recycling fee | 0.21 EUR |
|---|---|
| Your price with RF | 128.24 EUR |
| Your price incl. VAT (21%) | 155.17 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904586 | |
| Part No. | UISP-Dish-Mini | |
| Warranty | 24 months | |
RP-5AC-Gen2
179.23 EUR excl. VAT
216.95 EUR incl. VAT
stiqtyfree:141
_17:
avail:2
infocode: stock
queu:
In Stock
AF-5XHD
310.18 EUR excl. VAT
375.40 EUR incl. VAT
stiqtyfree:114
_17:
avail:2
infocode: stock
queu:
In Stock
Wave-MLO5
378.86 EUR excl. VAT
458.51 EUR incl. VAT
stiqtyfree:365
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 2,0
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
7,6
Azimuth beam width (-6dB) [°]:
7,6
Antenna type:
Directional
Antenna gain [dBi]:
26
Connectors and Interfaces
RF connectors:
WaveGuide
Physical characteristics
Designed for mast diameter [mm]:
32 up to 76
Wind load [km/h]:
200
Protection class:
IPX6
Purpose:
Outdoor
Material:
Steel, UV stabilized polycarbonate, Aluminum alloy
Weight [kg]:
3,4
Width [mm]:
420
Height [mm]:
420
Depth [mm]:
211
Product description

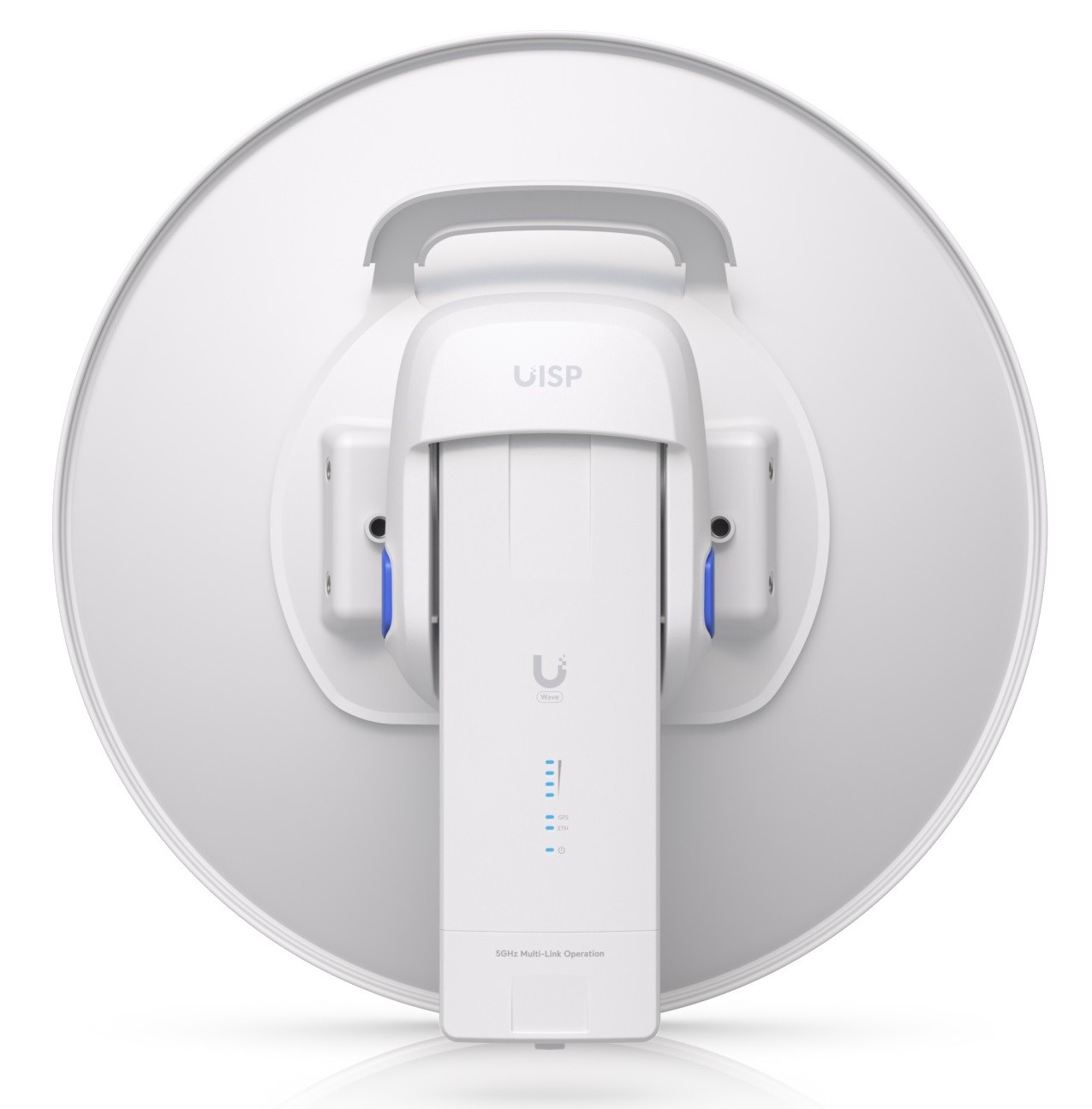

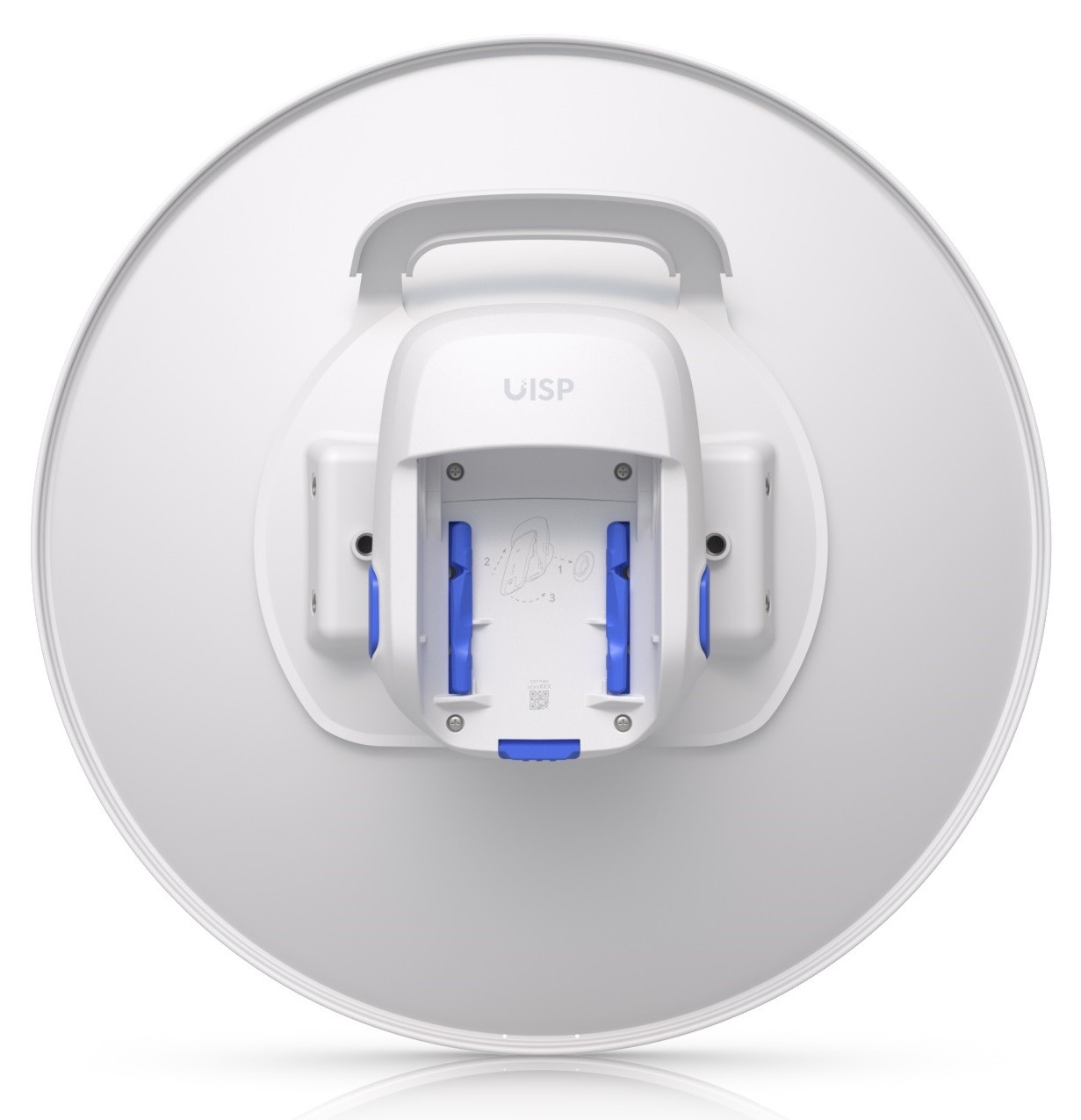

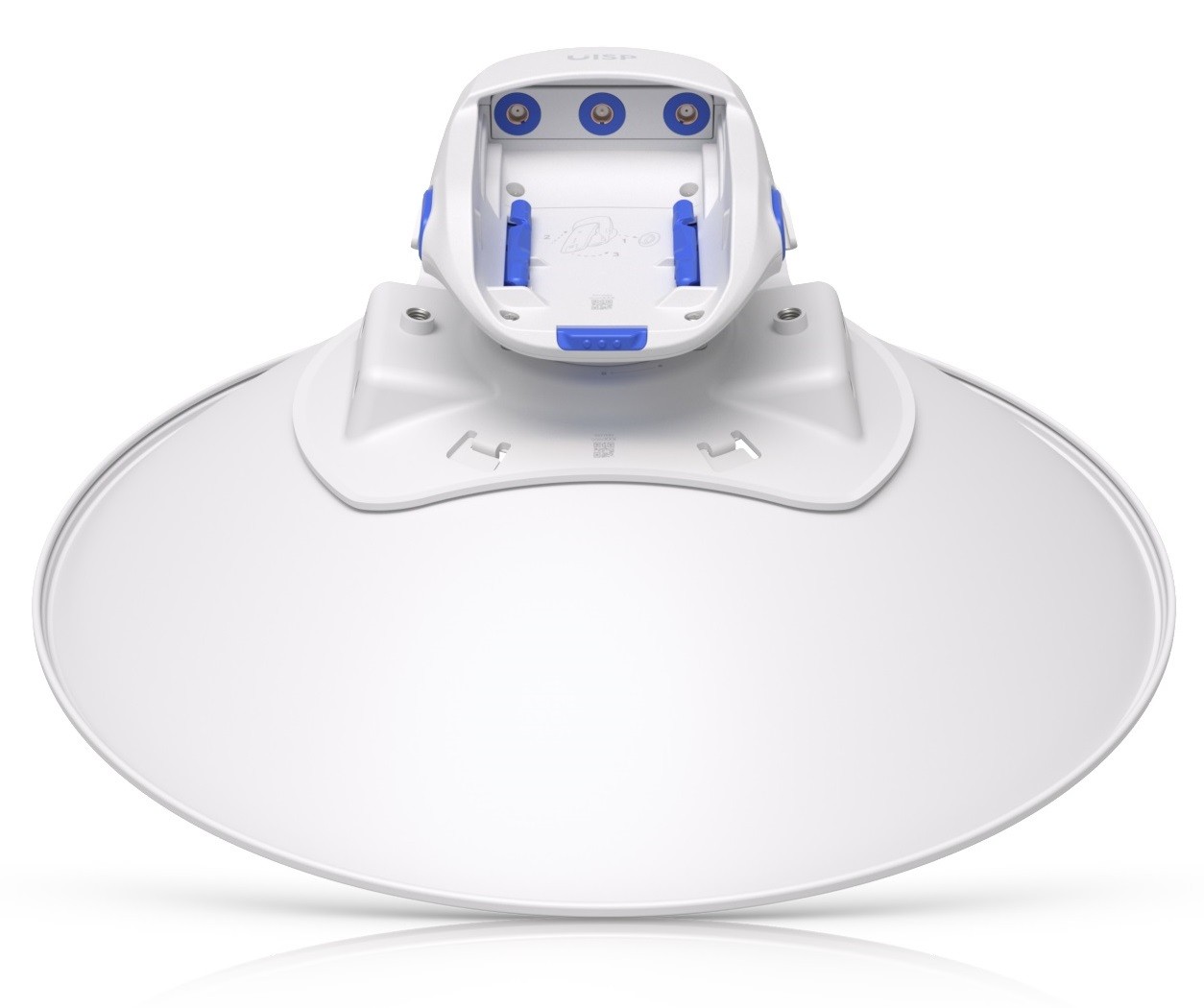

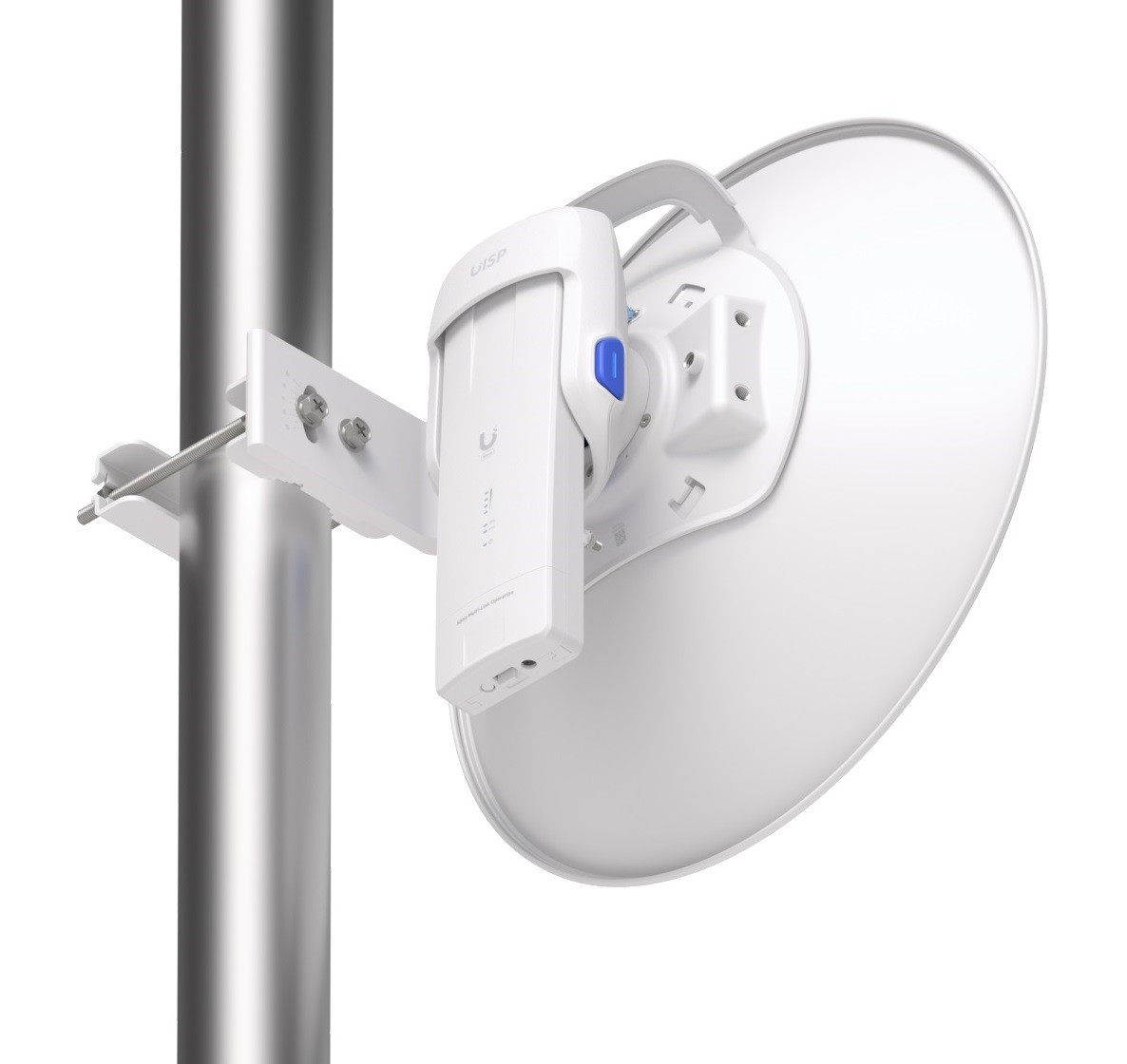

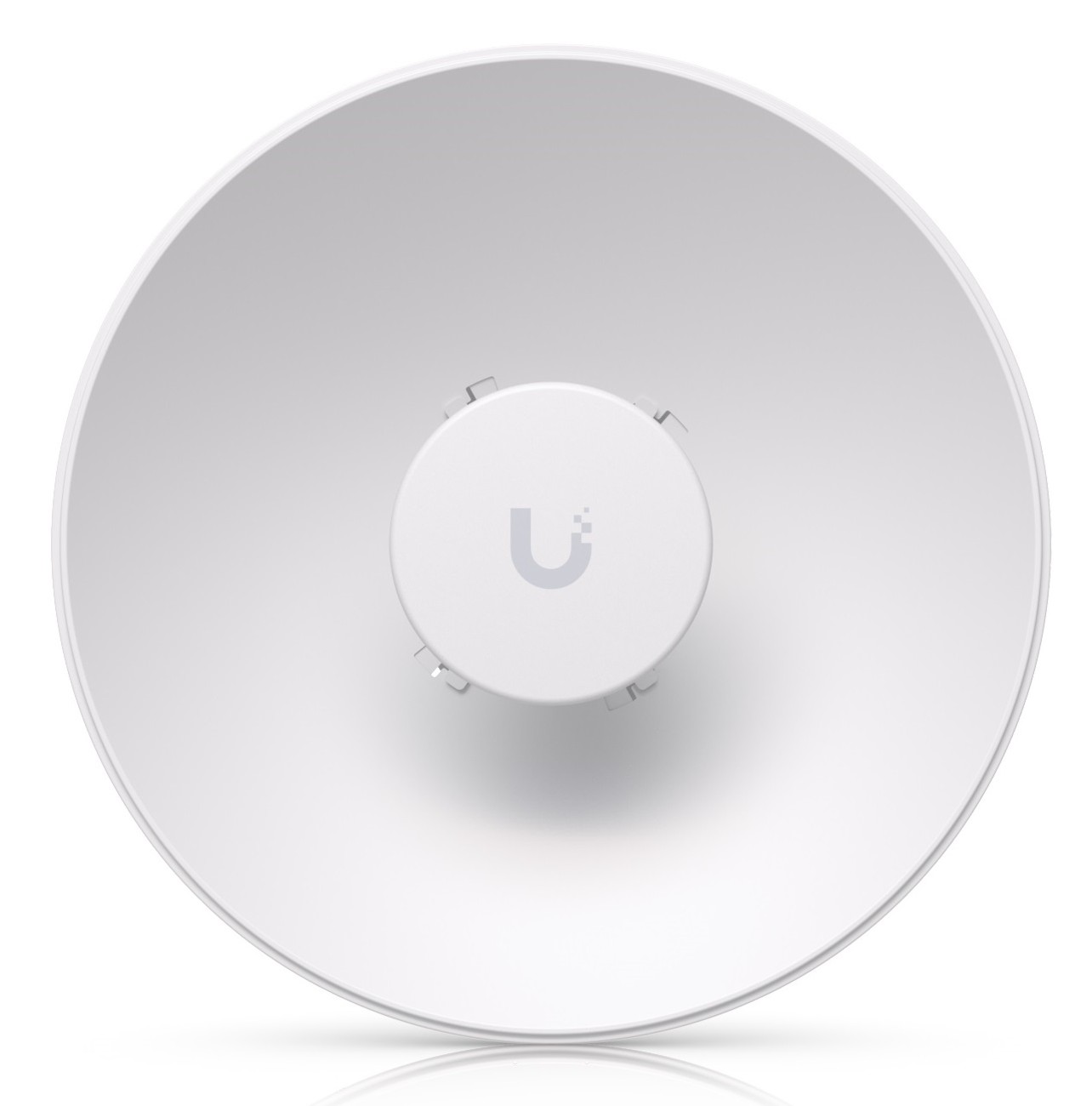

The Ubiquiti UISP Dish Mini is a well-designed parabolic antenna with a 420 mm diameter and a gain of 26 dBi. Its special WaveGuide adapter allows compatibility with Wave MLO5, airFiber 5XHD, and Rocket Prism units. The direct connection between the antenna and the radio eliminates the need for RF cables, simplifying installation, saving space on the mast, reducing signal loss, and minimizing the risk of water ingress.

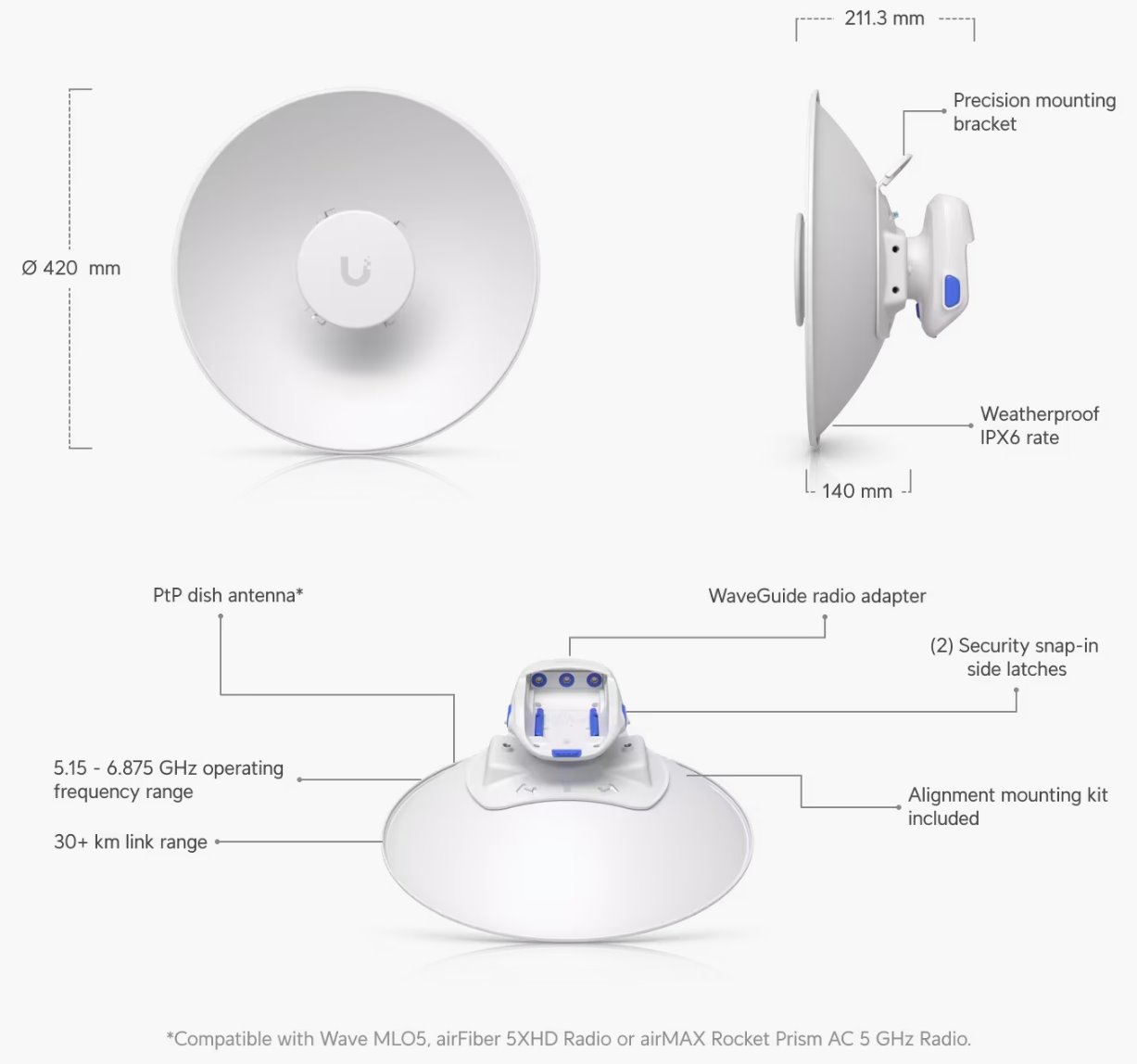

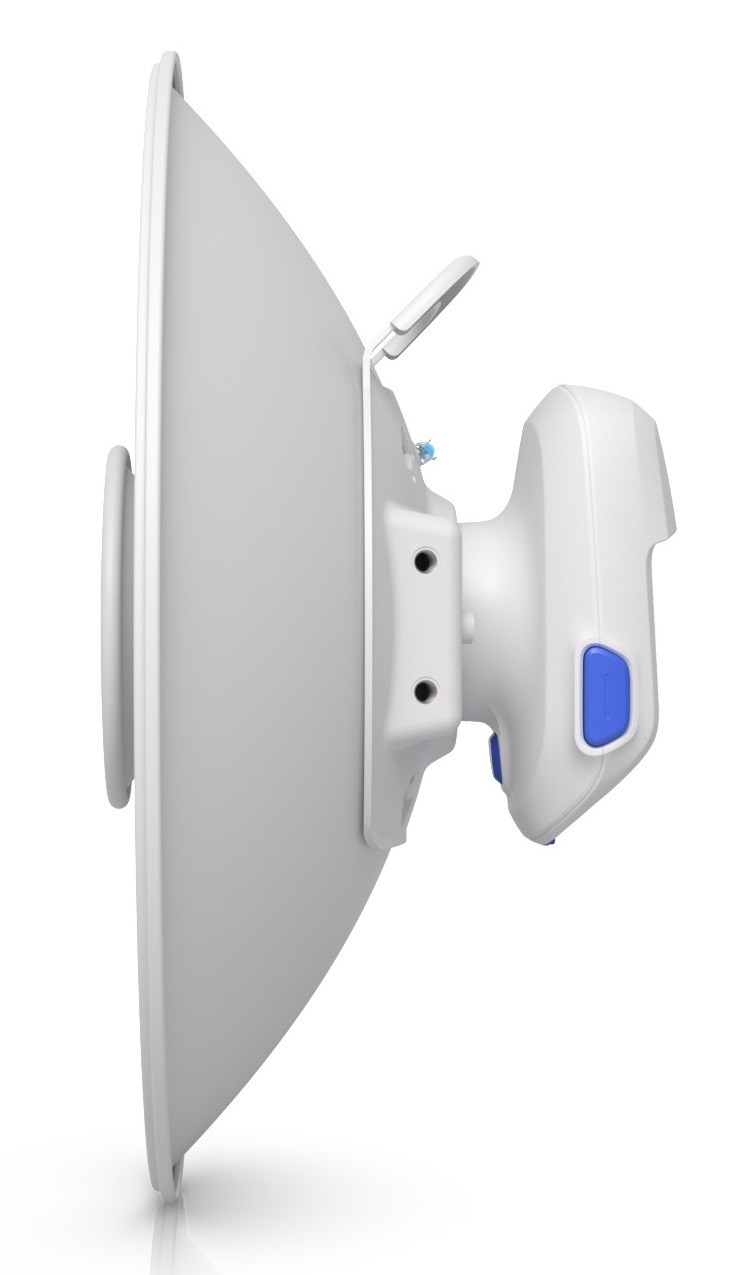

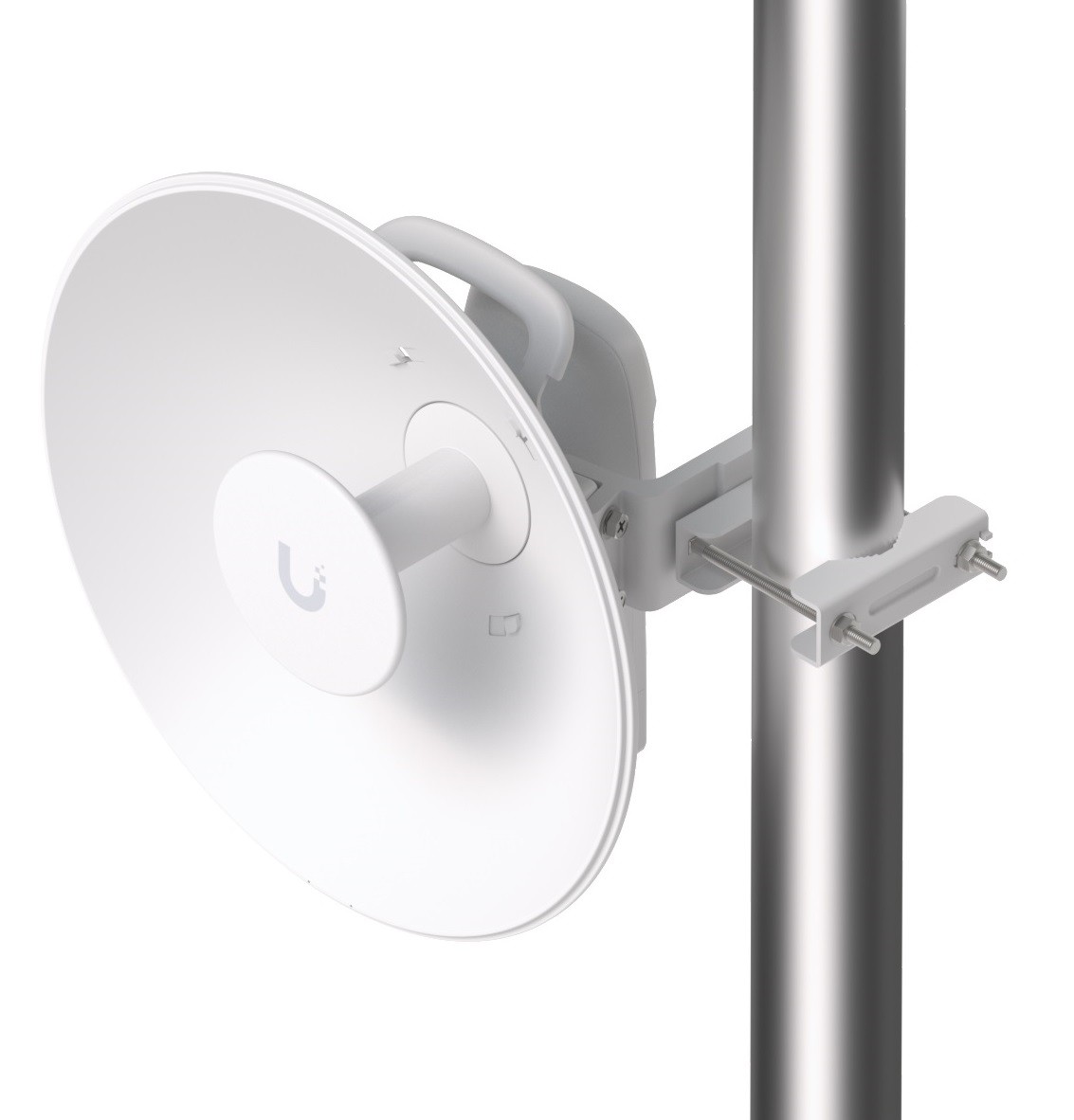

The precisely engineered shape of the feed and dish allows for a total depth of just 21 cm (including the radio mount). The antenna supports a wide frequency range of 5150 – 6875 MHz. The bracket design enables easy mounting on masts with a diameter of 25 – 75 mm.
