Ubiquiti UISP-Dish parabolic antenna, 30dBi, 5-6GHz
Your price excl. VAT
132.92 EUR
| Recycling fee | 0.21 EUR |
|---|---|
| Your price with RF | 133.13 EUR |
| Your price incl. VAT (21%) | 161.09 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10903469 | |
| Part No. | UISP-Dish | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
UISP-Dish
132.92 EUR
125.19 EUR
stiqtyfree:2
_17:
avail:2
infocode: stock
queu:
In Stock
AF-5XHD
310.18 EUR excl. VAT
375.40 EUR incl. VAT
stiqtyfree:113
_17:
avail:2
infocode: stock
queu:
In Stock
RP-5AC-Gen2
179.23 EUR excl. VAT
216.95 EUR incl. VAT
stiqtyfree:141
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
MIMO, SISO:
2 x 2
Polarization:
VH
VSWR:
< 2,0
Cross-Pol Isolation [dB]:
20
Wireless frequency:
5 GHz
Elevation beam width (-6dB) [°]:
6,5
Azimuth beam width (-6dB) [°]:
6,5
Antenna type:
Directional
Antenna gain [dBi]:
30
Connectors and Interfaces
Rocket kit:
Yes
RF connectors:
WaveGuide, (1) SMA male, (2) RSMA male
Physical characteristics
Designed for mast diameter [mm]:
40 up to 90
Wind load [km/h]:
200
Protection class:
IPX6
Purpose:
Outdoor
Material:
Aluminum, Steel, UV stabilized polycarbonate
Weight [kg]:
4,5
Width [mm]:
650
Height [mm]:
650
Depth [mm]:
200
Product description
Point-to-point (PtP) parabolic antenna that can work effectively in a very wide frequency range from 5.150 to 6.875 GHz. UISP Dish is a directional parabolic antenna with 30dBi gain and a special WaveGuide connector to which this antenna can be connected thanks to the attached adapter easily connect only to the radio airFiber 5XHD (AF 5XHD) or airMAX Rocket Prism AC 5 GHz (RP 5AC) to receive the signal. The WaveGuide connector is not compatible with PrismStation and IsoStation units.

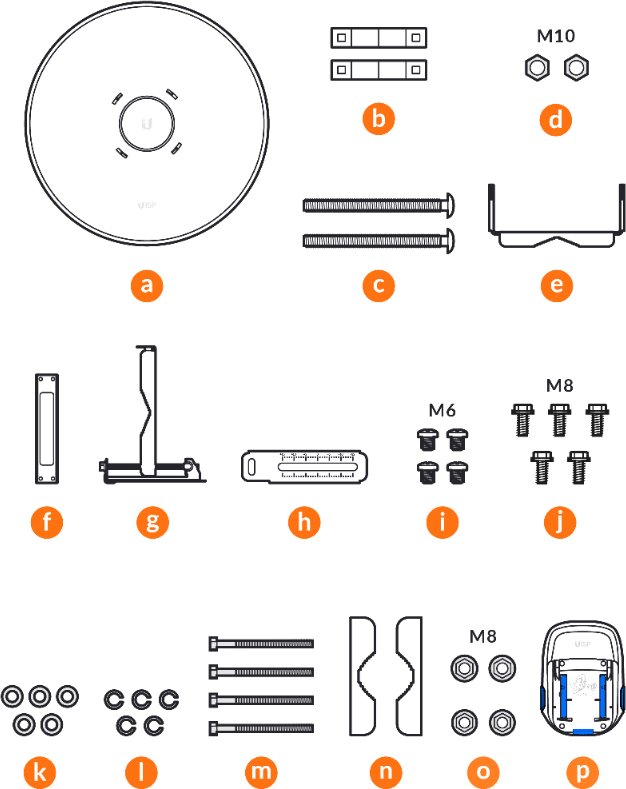

Package contents
