Ubiquiti UMR - UniFi LTE WiFi router
Ubiquiti UMR - UniFi LTE WiFi router
×
0/0
Your price excl. VAT
162.49 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 162.56 EUR |
| Your price incl. VAT (21%) | 196.70 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904089 | |
| Part No. | UMR | |
| Warranty | 24 months | |
USW-24-POE
301.34 EUR excl. VAT
364.71 EUR incl. VAT
stiqtyfree:306
_17:
avail:2
infocode: stock
queu:
In Stock
USW-Pro-24-POE
550.28 EUR excl. VAT
665.92 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:32
_17:
avail:2
infocode: stock
queu:
In Stock
PCU5E-5-MSC
3.78 EUR excl. VAT
4.57 EUR incl. VAT
stiqtyfree:510
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
WiFi standards:
802.11n, 802.11a, 802.11b/g
Transmission speed - 5GHz [Mb/s]:
150
Transmission speed - 2.4GHz [Mb/s]:
8640
Type of antenna:
Built-in, Detachable
Internal antennas:
2
Detachable antennas:
2
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (8) 900 MHz, (20) 800 MHz, (28) 700 MHz
Connectors and Interfaces
LAN speed:
(2) 10/100/1000Mbps
Gigabit LAN:
Yes
SIM slot:
Yes
SIM slots quantity:
1
GPS modul:
Yes
Power
Power over Ethernet:
802.3af
PoE type:
PoE-Out + PoE-In
Max. power consumption [W]:
9
Power via connector/terminal:
9V / 1A
Physical characteristics
Design:
On the wall, DIN rail
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-20 up to 45
Weight [g]:
303
Width [mm]:
90
Height [mm]:
29
Depth [mm]:
221
Hardware
CPU:
MIPS 74Kc
CPU frequency [MHz]:
775
RAM [MB]:
128
Software
Operating mode:
Cellular router
Default IP address:
Dynamic from DHCP
Default login and password:
Is set by the user at the first startup
Product description
UniFi Mobile Router is a compact device with wide power options, two LAN ports, WiFi and LTE Cat4 modem.

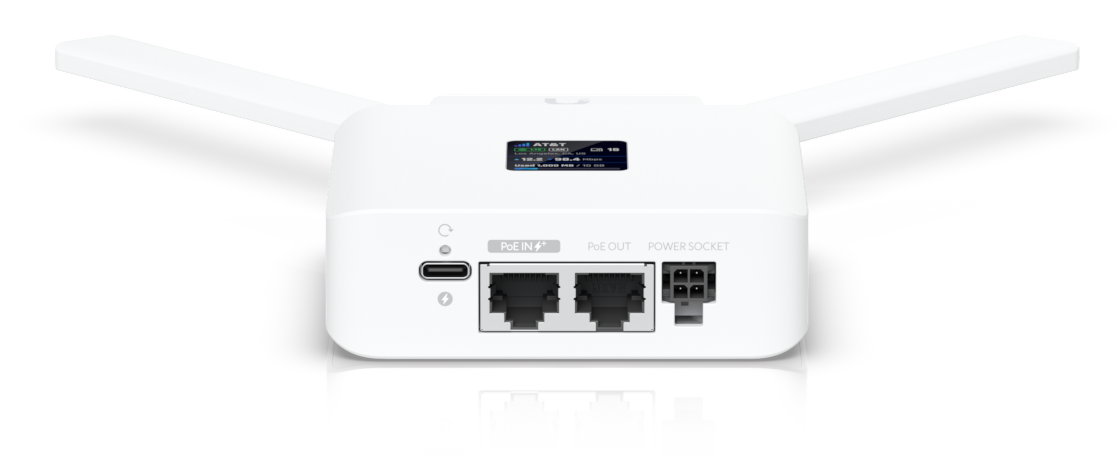

One of the pair of gigabit ethernets also supports the PoE-out function (if the router is powered via POE+ / 802.at). Other power options are via a USB-C connector or a 4-pin connector. The router can be mounted directly on the wall with the included bracket or on a DIN rail using an additional intermediate piece, which is also included in the package. You can connect wirelessly at a frequency 2.4GHz with a maximum line speed 150Mbps. The LTE modem reaches category 4, which means speeds up to 150/50Mbps. You connect to the mobile operator's network using your own nanoSIM.

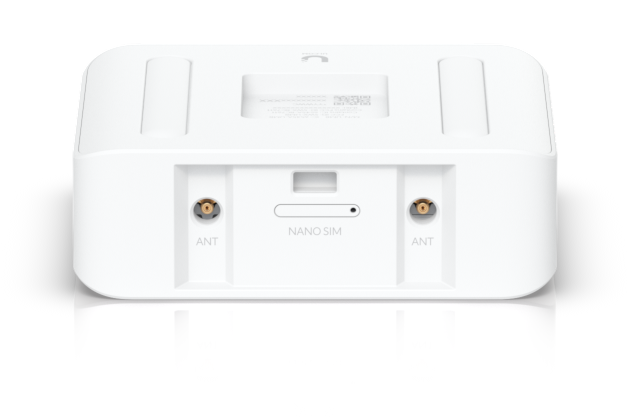

GPS and WiFi antennas are integrated inside the router, LTE antennas are detachable, the SIM slot is hidden under the antennas. The maximum consumption of the device itself is 9W.
The device is managed locally via a web interface, and the manufacturer also offers remote management through the UniFi Mobility Manager portal, which is, however, subject to a fee.
Package contains
Download
Datasheet Quick Start GuideGPSR
