Ubiquiti UniFi AP U7 In-Wall - Bazar
Your price excl. VAT
109.45 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 109.52 EUR |
| Your price incl. VAT (21%) | 132.52 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | B10904499 | |
| Part No. | B-U7-IW | |
| Warranty | 6 months | |
You have a choice of 2 variantscompare all
Poškozený obal / Damaged packing
B-U7-IW
Unpacked
109.45 EUR
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band)
WiFi standards:
802.11n, 802.11a, 802.11ac, 802.11b/g, 802.11ax, 802.11be
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
4300
Transmission speed - 2.4GHz [Mb/s]:
688
Tx power 2.4GHz [dBm]:
23
Tx power 5GHz [dBm]:
24
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Built-in
Roaming:
Yes
Antenna gain [dBi]:
4, 8
Connectors and Interfaces
LAN speed:
(3) 100/1000/2500Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
802.3af, 802.3at, 42 .. 57V DC
PoE type:
PoE-Out + PoE-In
PoE Out ports:
1
Max. power consumption [W]:
13
Physical characteristics
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 40
Weight [g]:
400

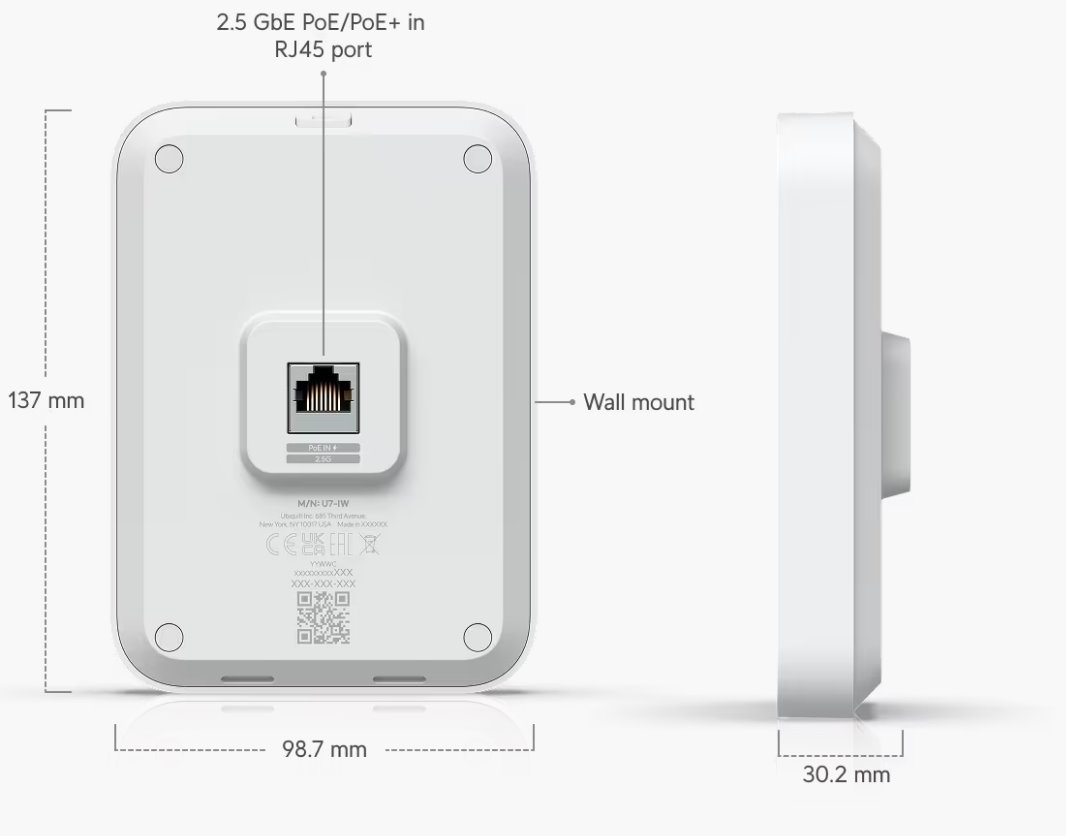

Width [mm]:
99
Height [mm]:
137
Depth [mm]:
30
Software
Operating mode:
Access Point
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.
Product condition: Damaged packaging, see photo in gallery.

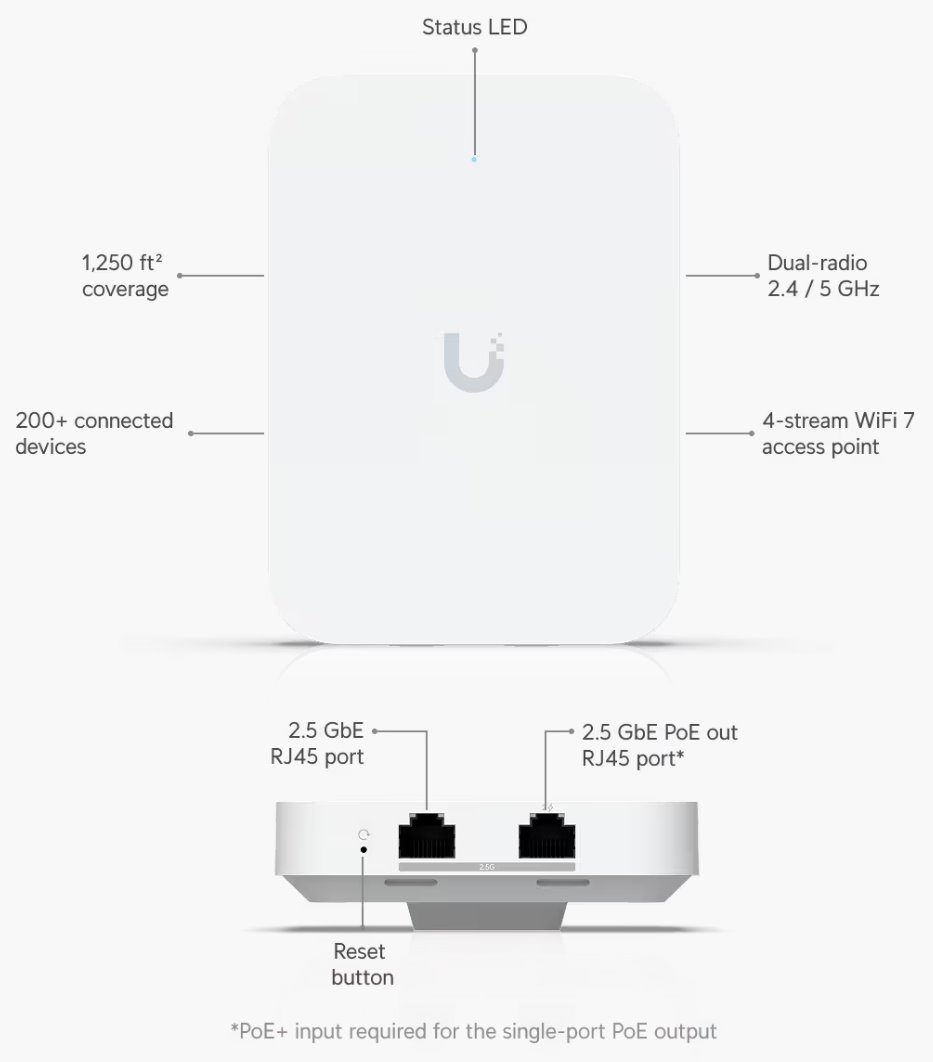

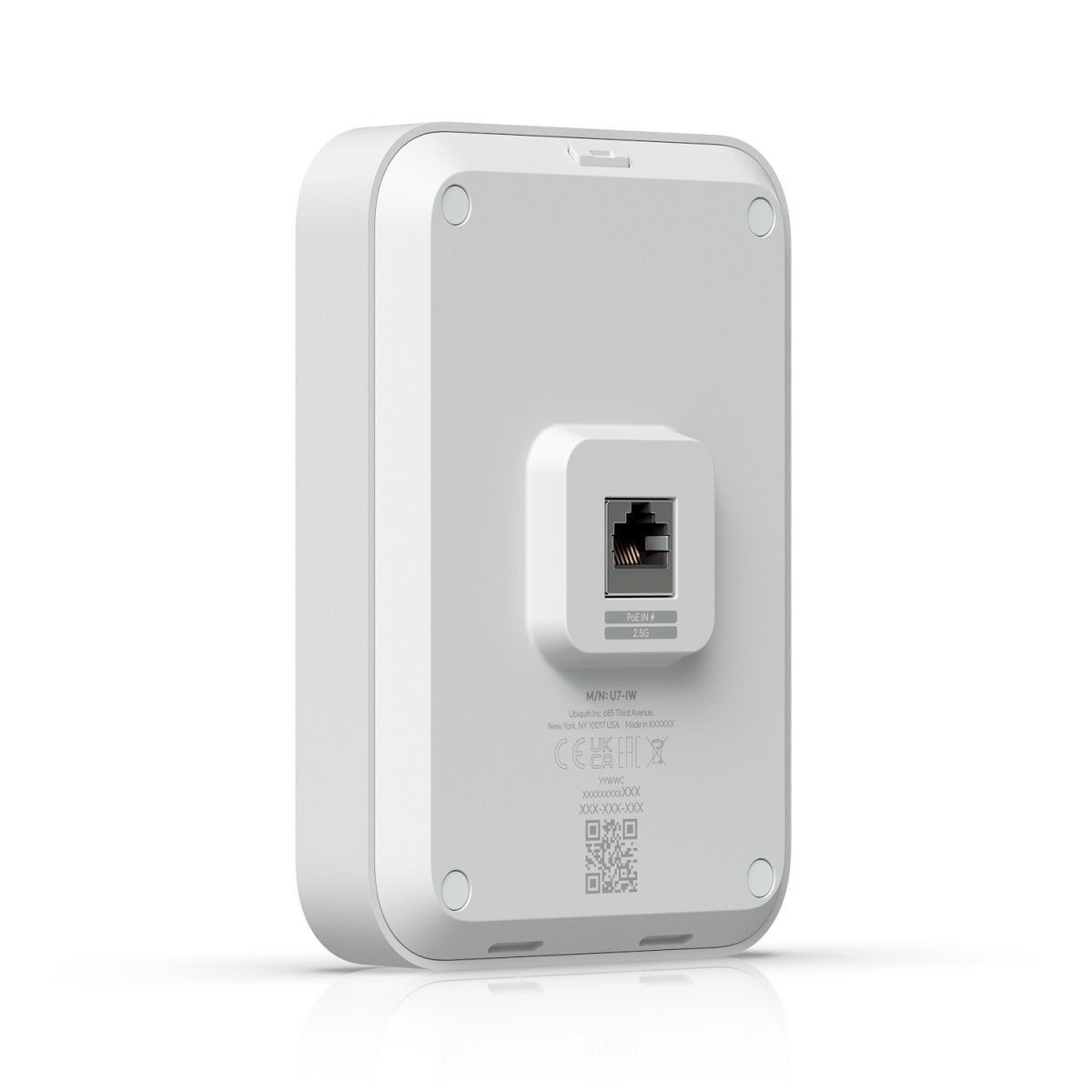

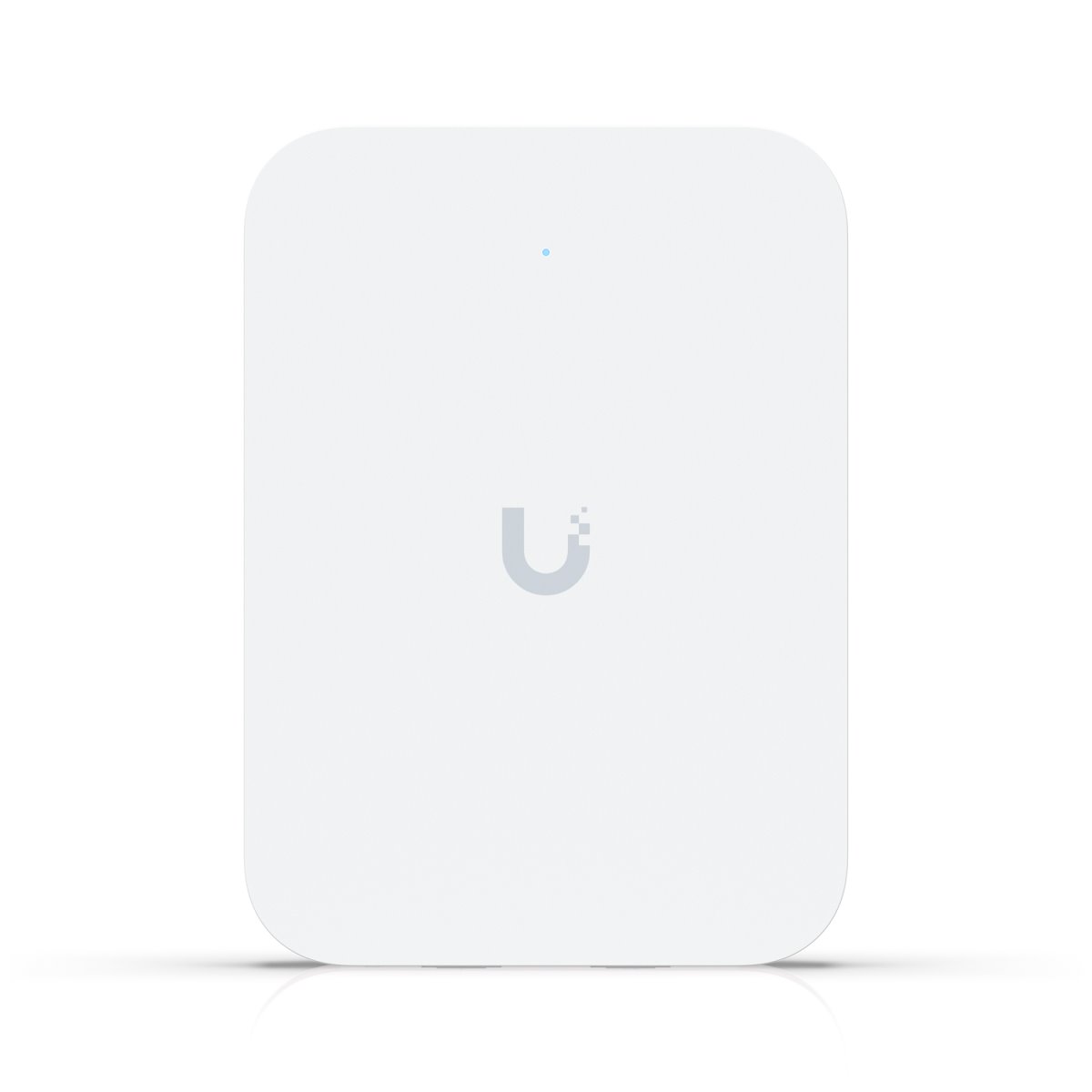

The U7-IW is a WiFi 7 access point from the UniFi family, designed for in-wall installation. Dual-band WiFi 7 offers a maximum modulation speed of up to 4.3Gbps in the 5 GHz band and up to 688Mbps in the 2.4 GHz band. For network connectivity, it features a rear (1) 2.5G ETH port, which also serves as a power input via PoE 802.3af/at or passive PoE 42.5 to 57V DC. Even after installation, you will still have access to (2) 2.5G ETH ports, one of which supports PoE-OUT for connecting an additional device. If using the PoE-OUT function, powering by PoE+ 802.3at 30W is required.
Centralized Device Management
To manage the device, you need to download the official software called UniFi Network from the official website, which allows full network control. A significant advantage of UniFi Network is that it is completely free with no limitations! This centralized management system enables you to upload maps, configure key settings such as SSID, guest accounts, landing pages, monitor traffic statistics, and view a list and status of associated clients – all quickly and easily.
Advantages of the UniFi Solution

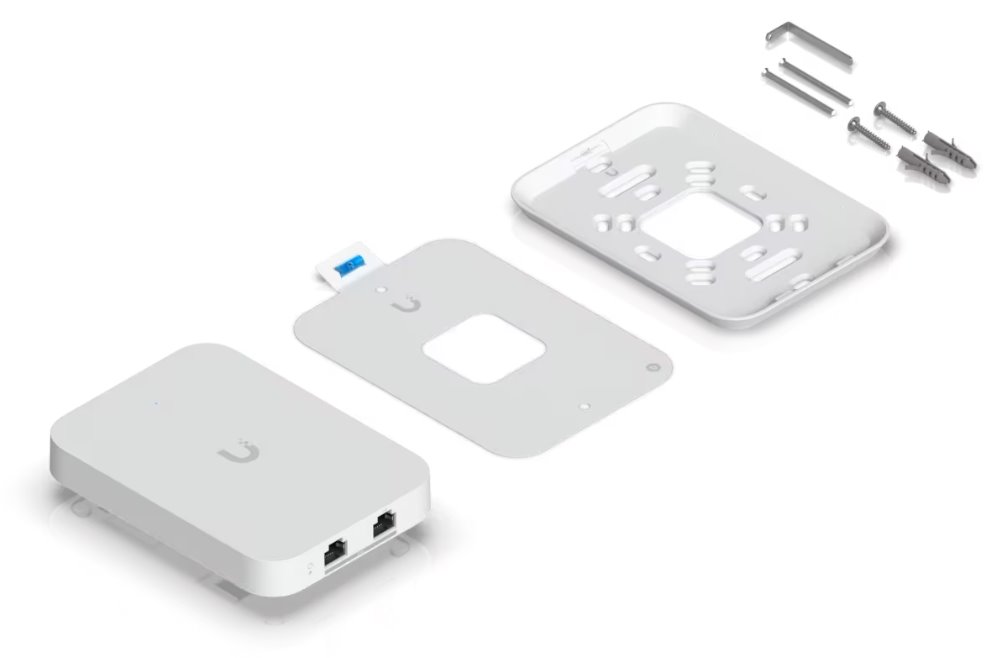

Package Contents
Download
Datasheet Installation guideGPSR
