Ubiquiti UniFi Switch US-8-150W
We are sorry, this product is no longer in our offer.
Ubiquiti UniFi Switch US-8-150W
×
0/0
UACC-CM-RJ45-1G
14.11 EUR excl. VAT
17.16 EUR incl. VAT
In Stock
FS-A1-250-B
17.16 EUR excl. VAT
20.76 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 10/100/1000Mbps
Optical interfaces:
(2) 1000Mbps
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, Passive 24V
PoE Out ports:
8
PoE budget [W]:
150
Max. power consumption [W]:
150
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Desktop, Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
235
Height [mm]:
43
Depth [mm]:
204
General
Switchning capacity [Gbps]:
20
MAC address table:
16000
Jumbo frame [Bytes]:
9000
Packet forwarding rate [Mpps]:
14,9
Software
Management:
SSH, Telnet, UniFi Network
Features:
VLAN, DHCP snooping
Default IP address:
Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

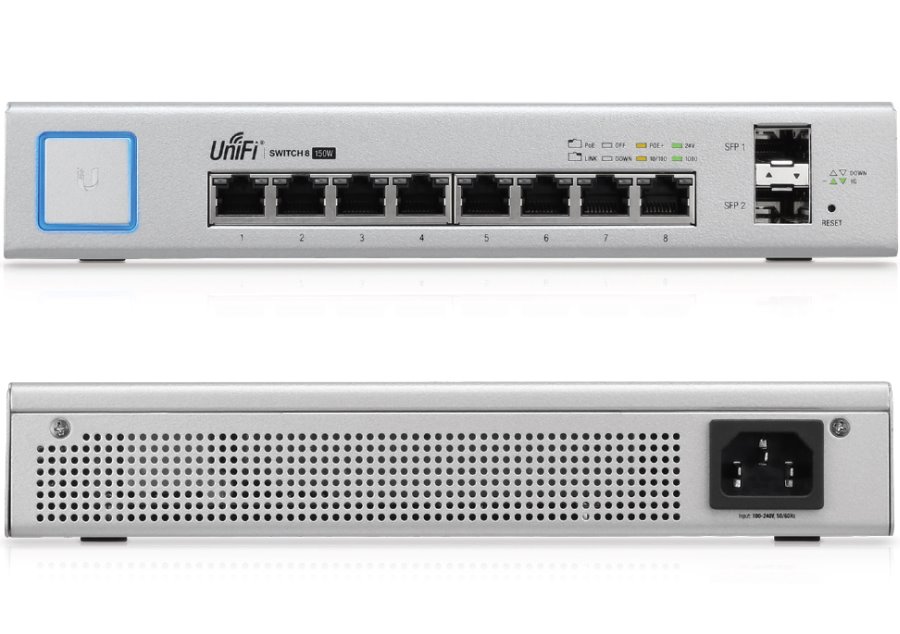

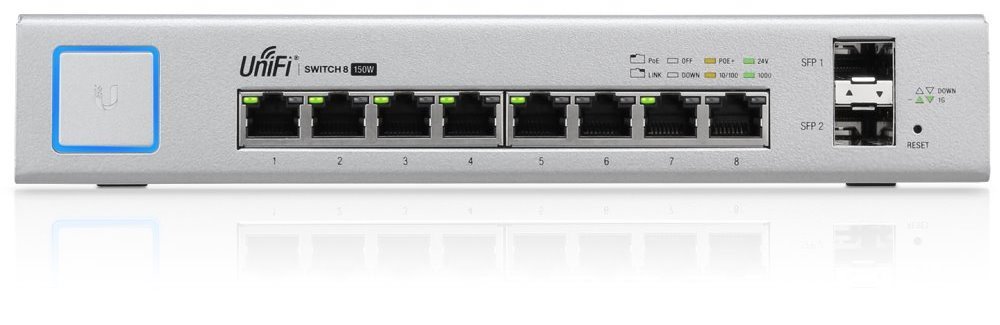

Ubiquiti UniFiSwitch US-8-150W Gigabit PoE switch in desktop / rackmount design with maximum PoE power 150W. Manageable switch with 8 Gigabit metallic + 2 Gigabit SFP ports and total throughput 20 Gbps.
PoE setup on each port
Its biggest advantage is Gigabit PoE on each port, which can be set as active PoE 802.3af / at with a maximum power 34.2W/port or passive 24V with a maximum power of 17W/port. Automatic detection ensures full functionality of 802.3af and 802.3at devices without prior configuration. Passive 24V PoE must be set manually.

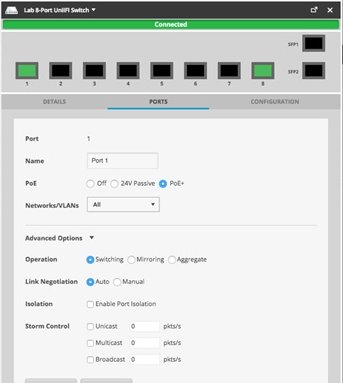

Management over UniFi Controller
The main difference between UniFi switches and Edge Switches is web management - Edge Switche's WebGUI management is substituted by UniFi Controller in UniFi Switches.
Package contains
Download
Datasheet Latest UniFi Controller Quick Start Guide SFP compatibility list UniFi Controller v4 User GuideGPSR
