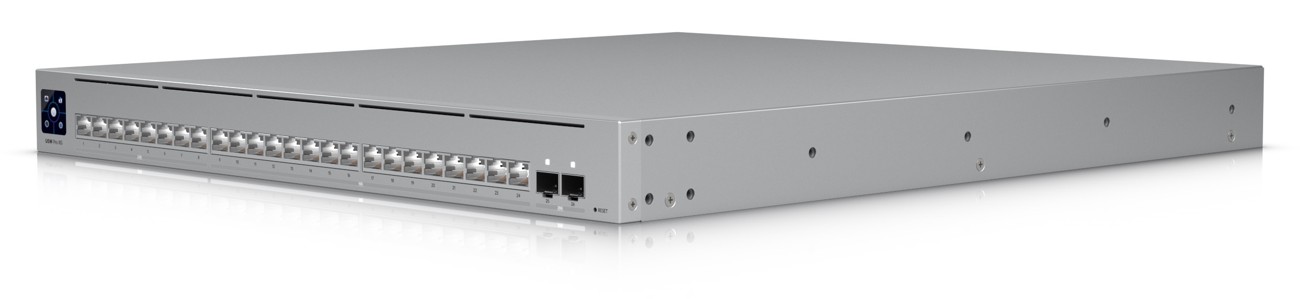

Ubiquiti UniFi Switch USW-Pro-XG-24
Your price excl. VAT
887.26 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 887.33 EUR |
| Your price incl. VAT (21%) | 1 073.67 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904584 | |
| Part No. | USW-Pro-XG-24 | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
8x 2.5G + 16x 10G RJ45
USW-Pro-XG-24
887.26 EUR
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(8) 2.5G/1G/100M/10M + (16) 10G/5G/2.5G/1G/100M/10M
Optical interfaces:
(2) 1/10/25Gbps
Other features:
Touchscreen
Power
Power type:
Mains power (230V), UniFi SmartPower RPS
Redundant power supply:
Yes
Max. power consumption [W]:
150
Power via connector/terminal:
52V DC, 230V AC
Physical characteristics
Design:

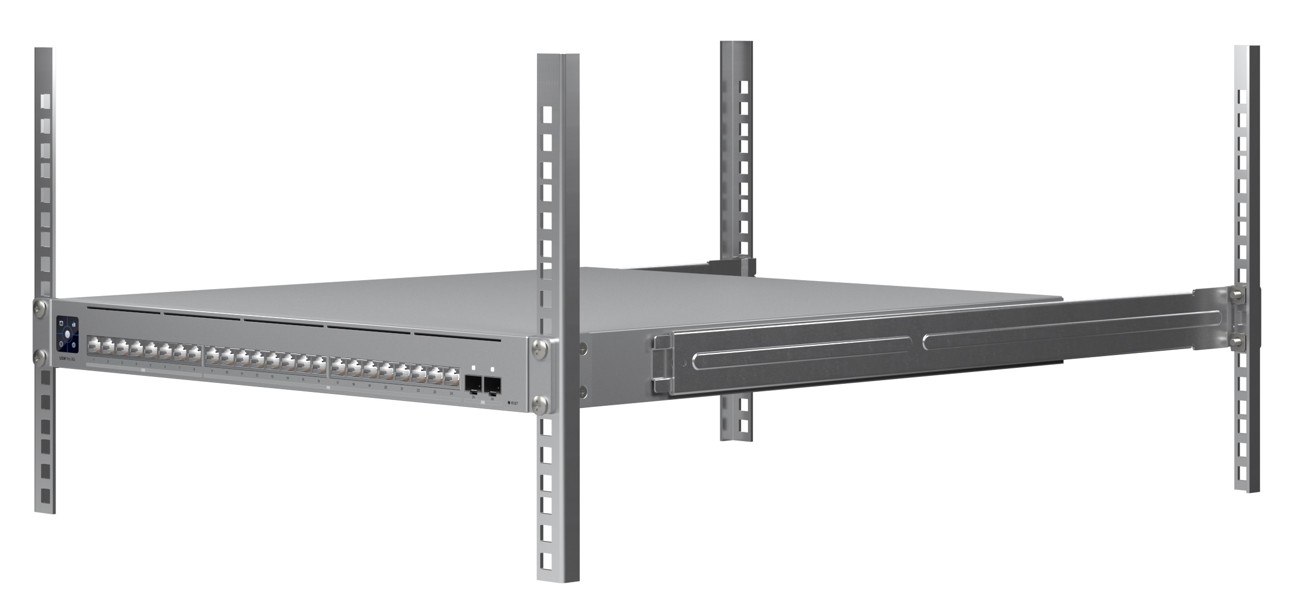

Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40
Width [mm]:
442
Height [mm]:
44
Depth [mm]:
480
General
Switchning capacity [Gbps]:
460
MAC address table:
128000
Packet forwarding rate [Mpps]:
342
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping, L2, L3
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

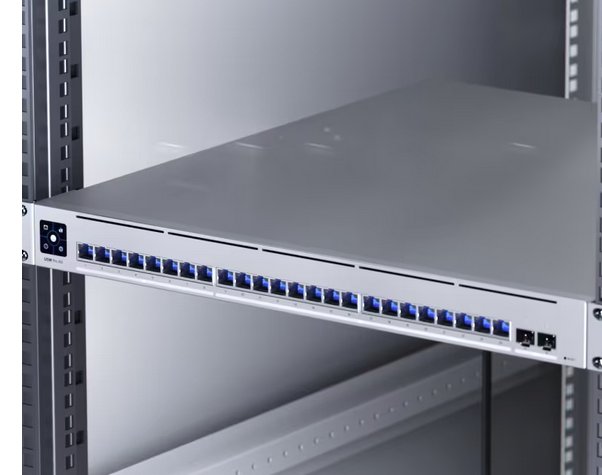

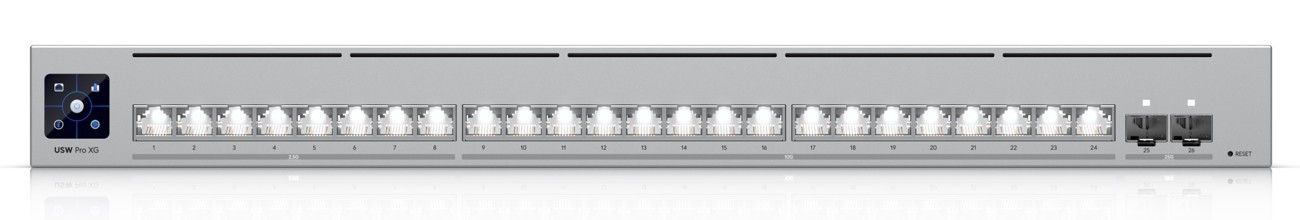

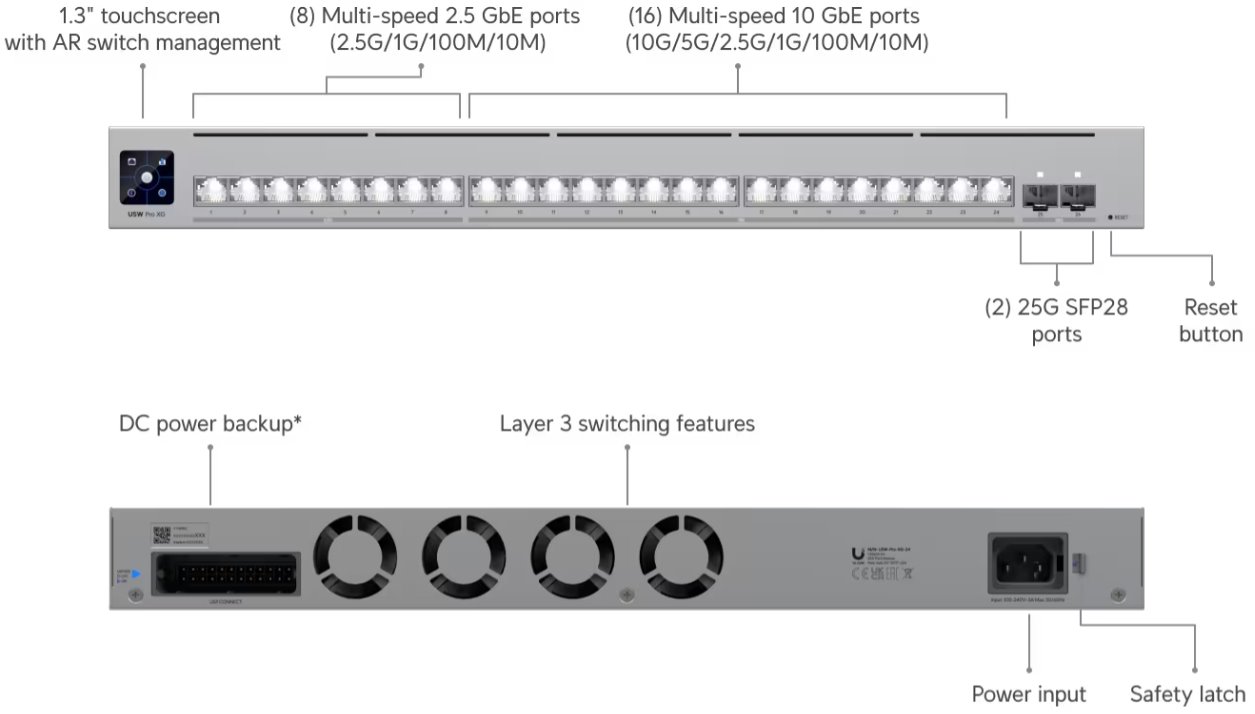

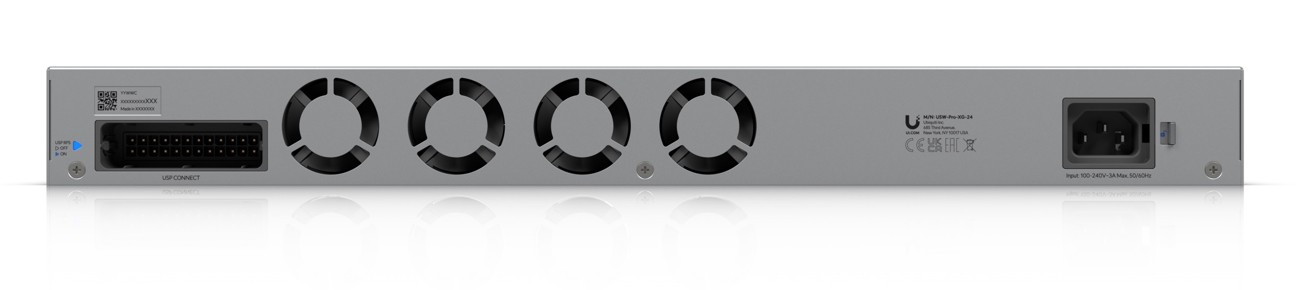

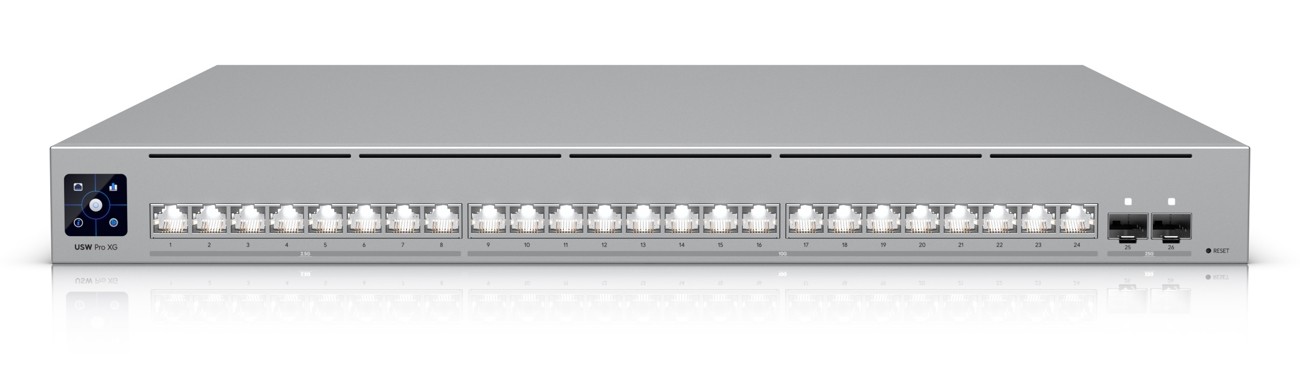

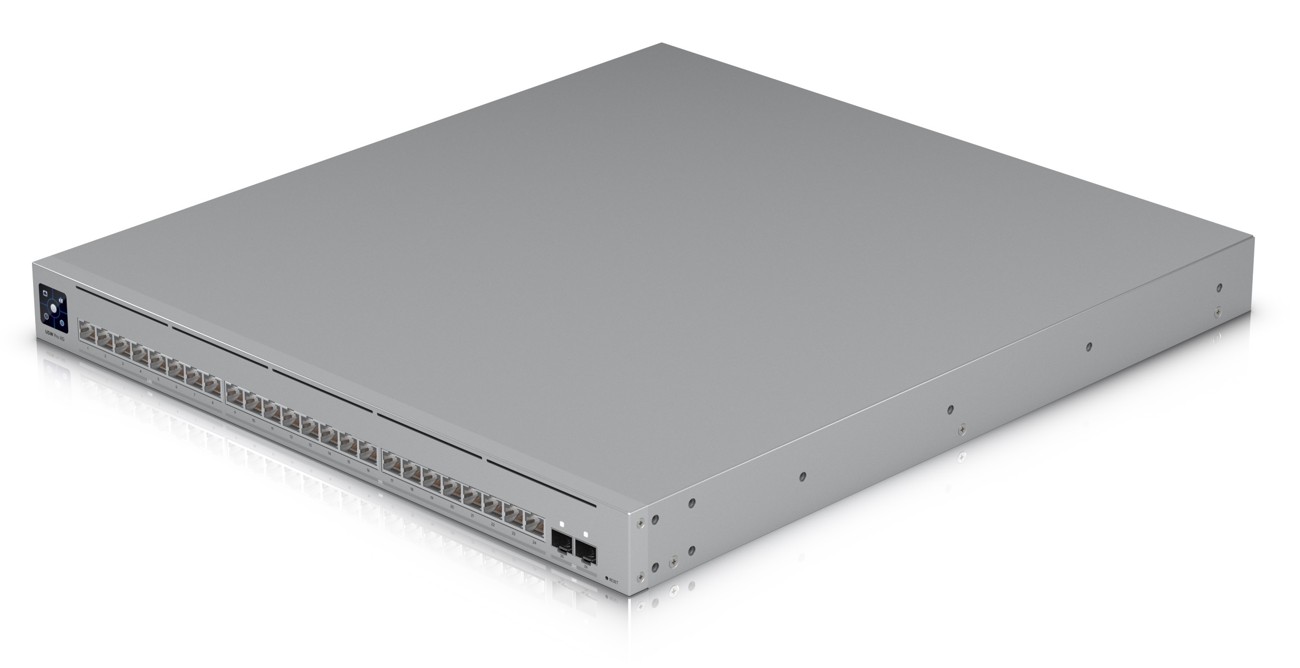

The UniFi Switch USW-Pro-XG-24 is a managed L3 switch with a switching capacity of 460 Gbps, featuring (8) 2.5-Gigabit LAN and (16) 10-Gigabit LAN ports, as well as (2) SFP28 (25G/10G/1G) ports. The Ethernet ports support the Etherlighting feature, allowing you to light up ports in different colors to indicate port location, speed/connection, and VLAN. The switch is powered via a standard 230V AC supply and includes a USP RPS DC port as a backup power source in case of primary power failure. Maximum power consumption is 150W.
Key Features
Management via UniFi Network Server
The USW-Pro-XG-24 does not include a web interface but is centrally managed through the UniFi Network Server with support for the UniFi mobile app. It offers a comprehensive set of advanced L2 and L3 switching features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Network Server and mobile app allow administrators to configure and monitor nearly all switch functions through a graphical user interface from anywhere.

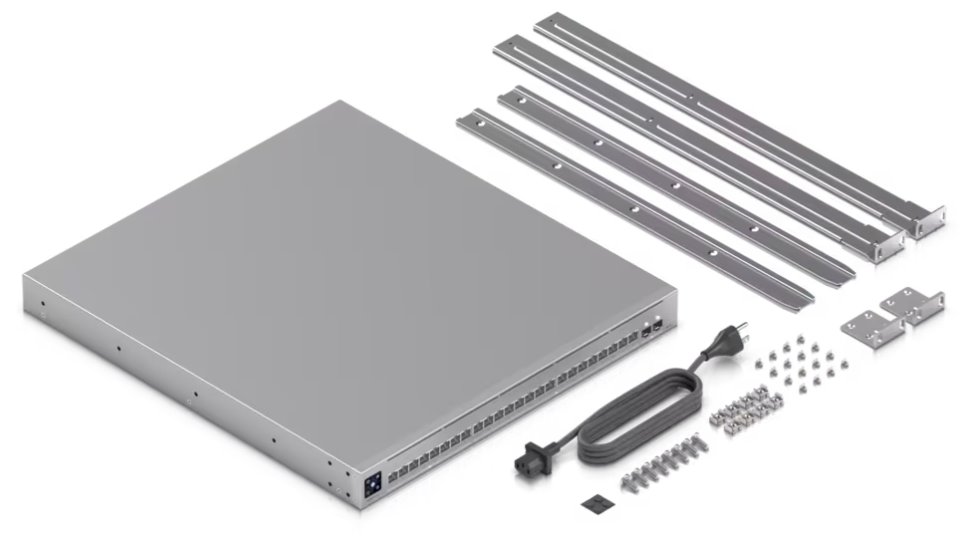

Package Contents
Download
Datasheet Installation GuideGPSR
