Ubiquiti UniFi UPS Tower

Product description

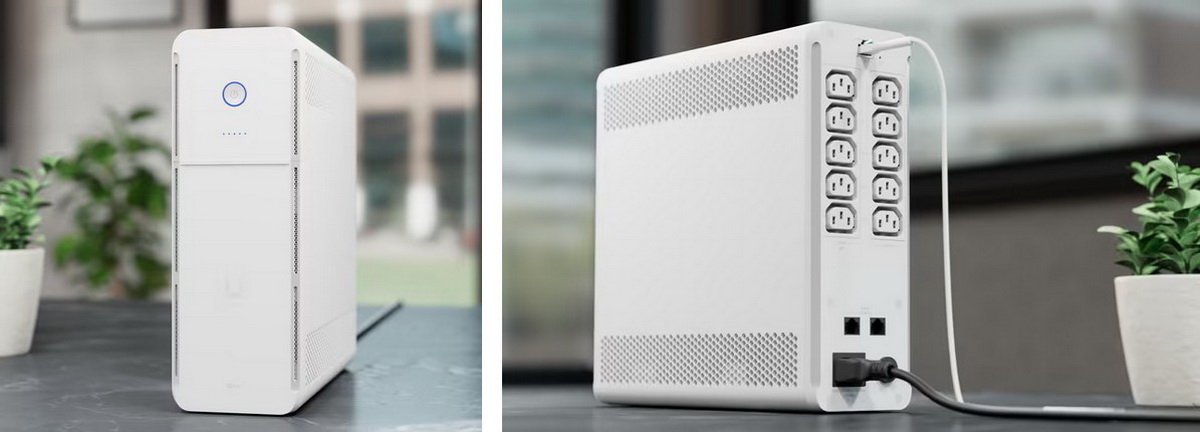

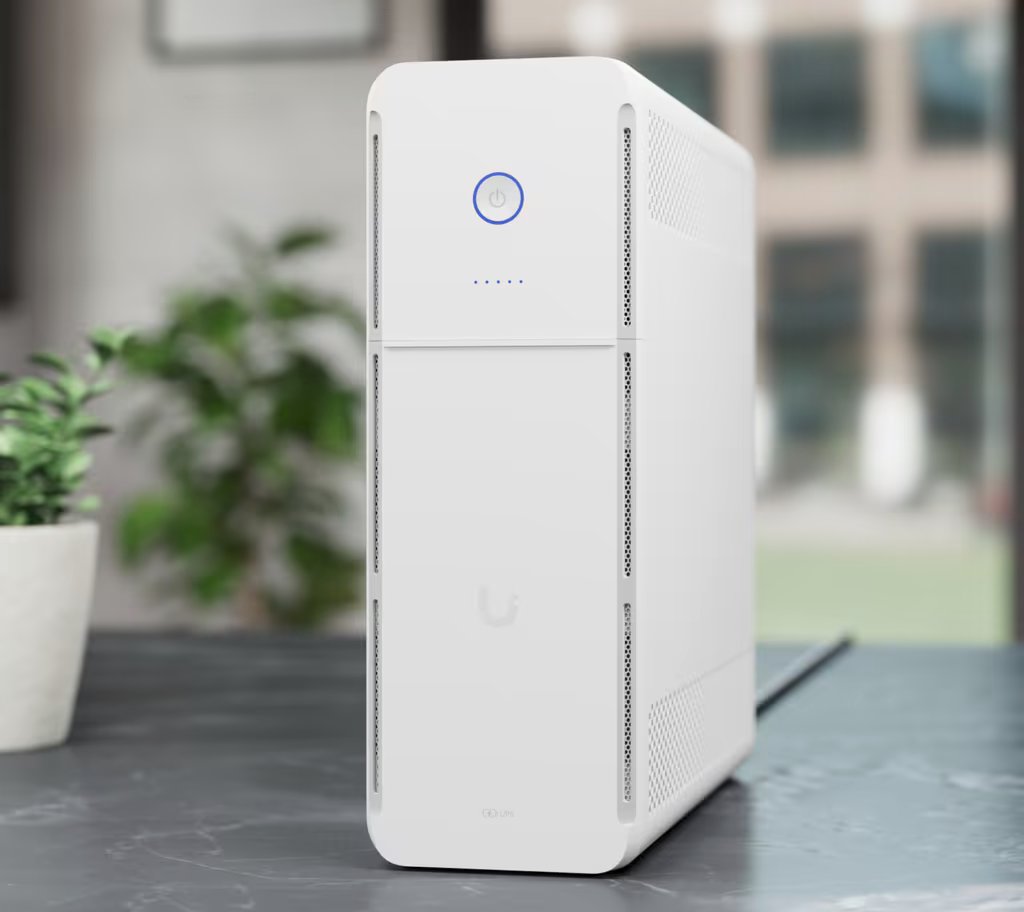

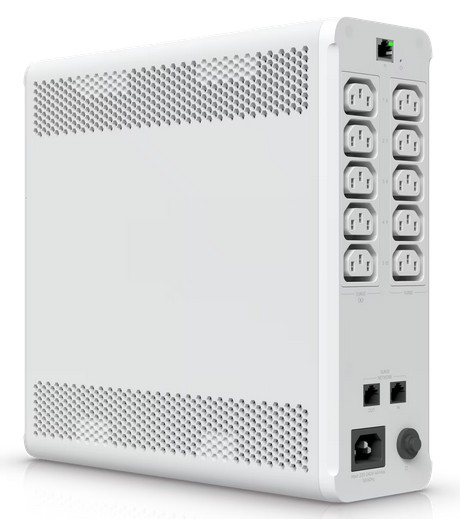

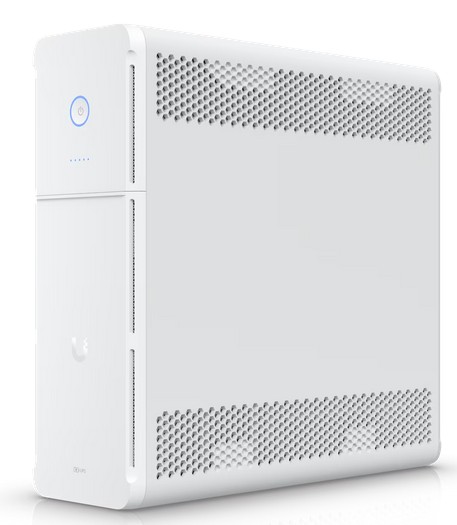

The Ubiquiti UniFi UPS is a backup power supply unit designed for network devices, ensuring their operation during a power outage. The device features a tower-type design and includes 10 power sockets for connecting equipment. Of these, 5 sockets (C13) provide surge protection, while the remaining 5 sockets (C13) offer combined protection—both surge and power outage protection. Continuous power is ensured by a hot-swap replaceable battery, which allows battery replacement while the unit remains operational, without the need to power it down. This ensures that connected devices remain continuously powered even during maintenance or battery replacement.

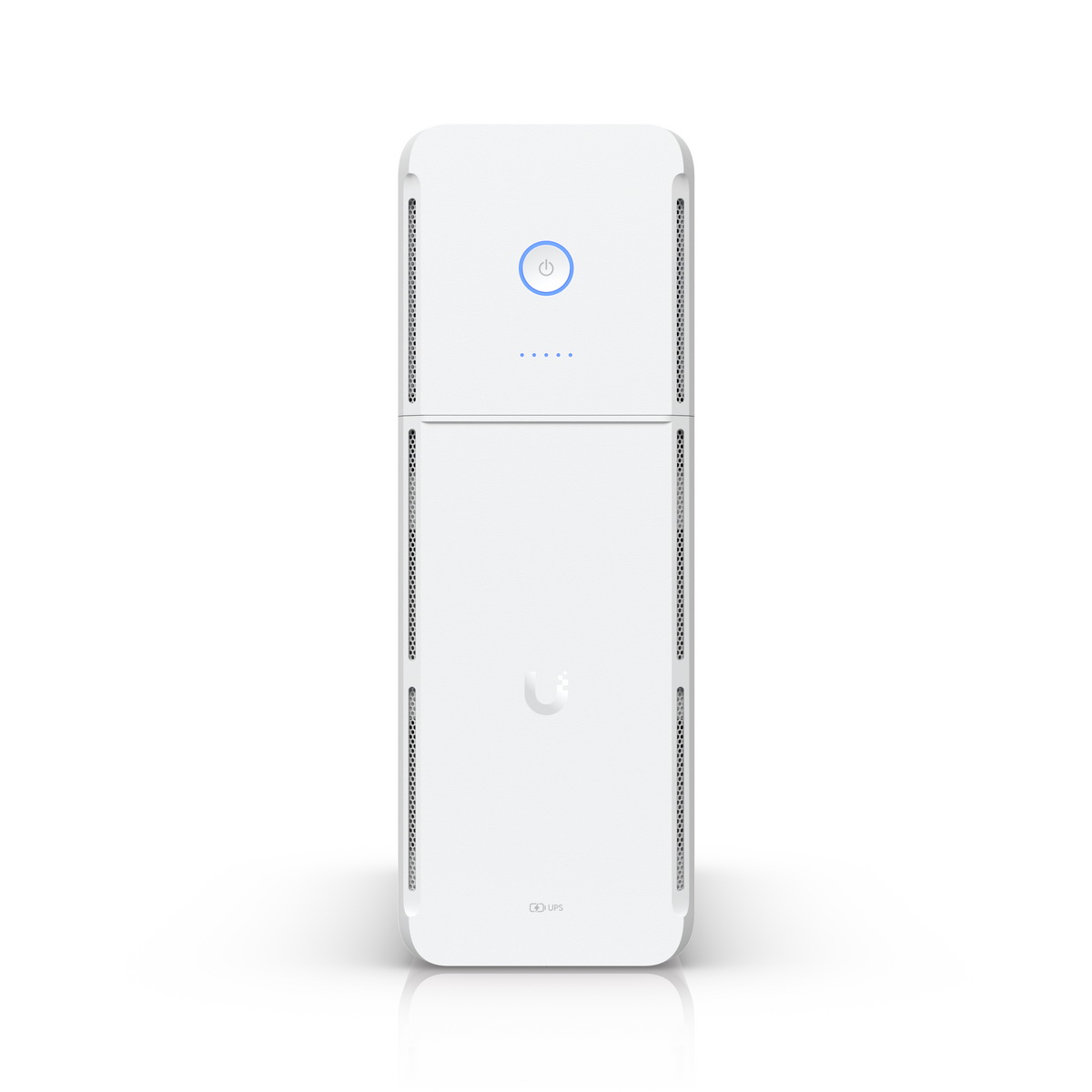

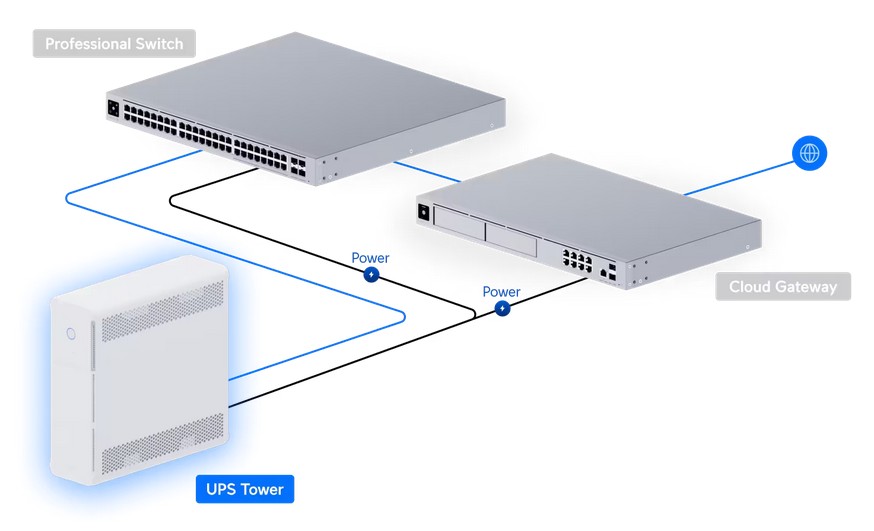

The device is equipped with a Power button and a Factory Reset button, and features (2) LED indicators. (1) LED displays the status of the device itself, while the other indicates the battery status. At full load, the backup power supply can power connected devices for approximately 2 minutes. At half load, the runtime extends to about 7 minutes. Charging the battery to 90 % capacity takes approximately 6 to 8 hours. The UPS-Tower unit connects to the network interface via a 10/100 Mbps port and includes (2) Gbps ports for network communication surge protection.

Key features

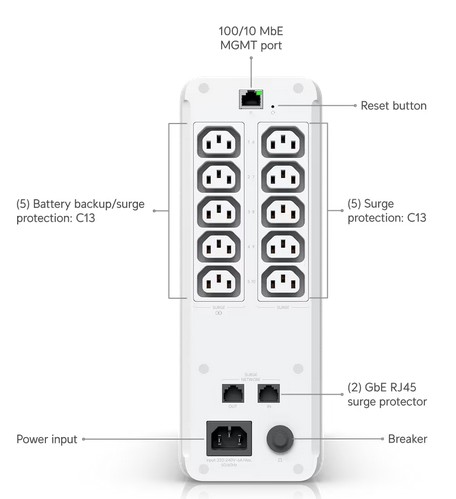

• Sockets (5) battery backup/surge protection and (5) battery backup
• Battery (1) hot-swap Lead Acid 12 V, 9 Ah

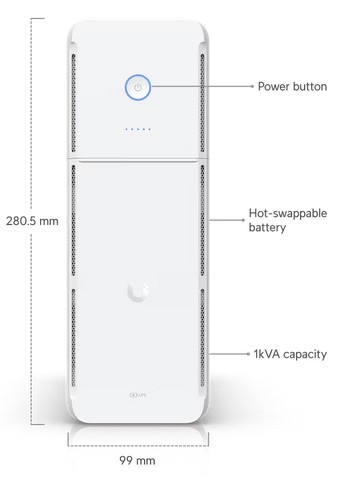

• Buttons (1) power and (1) factory reset
• Battery Charging Time 6 - 8 hours recovery to 90 % capacity
• Weatherproofing IP20
• Power Method (1) TN system, 220 — 240 V AC, 6 A Max., 50/60 Hz
• Short Circuit Protection at On-Line Mode Breaker, 250 V AC, 10 A
• Network interface (1) 10/100 Mbps port and (2) Gbps ports for network communication surge protection

Compatibility

• UCG-Fiber
• UDM-Pro-Max
• UDM
• UDR7
• UX7
• USW-24
• USW-48
• USW-Aggregation
• USW-Enterprise-24-PoE
• USW-Flex-2.5G-8
• USW-Flex
• USW-Flex-Mini
• USW-Flex-XG
• USW-Lite-16-PoE
• USW-Pro-24
• USW-Pro-48
• USW-Pro-XG-10-PoE
• USW-Pro-XG-24-PoE
• USW-Pro-XG-48-PoE
• USW-Ultra-60W
• USW-WAN
• UNAS-2
• UNVR
• UXG-Pro
• and next in datasheet

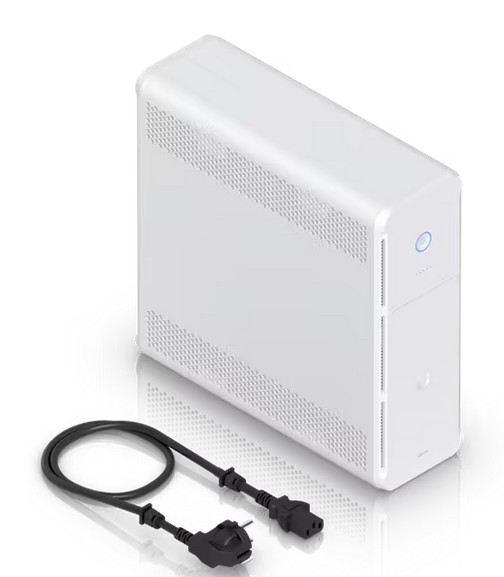

Package contents

• Device
• Power cord
