Ubiquiti WAN Switch
Your price excl. VAT
203.98 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 204.05 EUR |
| Your price incl. VAT (21%) | 246.90 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904523 | |
| Part No. | USW-WAN | |
| Warranty | 24 months | |
You have a choice of 2 variantscompare all
SFP+
USW-WAN
203.98 EUR
UDM-Pro-Max
494.11 EUR excl. VAT
597.96 EUR incl. VAT
In Stock
UDM-Pro
324.10 EUR excl. VAT
392.25 EUR incl. VAT
In Stock
UDM-SE
409.18 EUR excl. VAT
495.19 EUR incl. VAT
Expected 30.8.2025
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
Management LAN:
Yes
Optical interfaces:
(3) 1G/10Gbps
Power
Power type:
Mains power (230V)
Redundant power supply:
Yes
Max. power consumption [W]:
13
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
No
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40

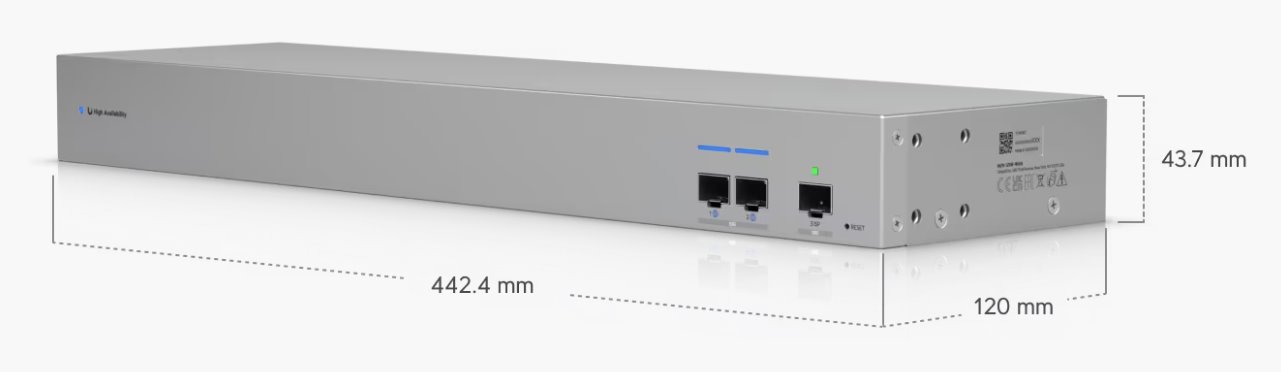

Width [mm]:
442
Height [mm]:
44
Depth [mm]:
120
General
Switchning capacity [Gbps]:
20
Packet forwarding rate [Mpps]:
15
Software
Management:
UniFi Network
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

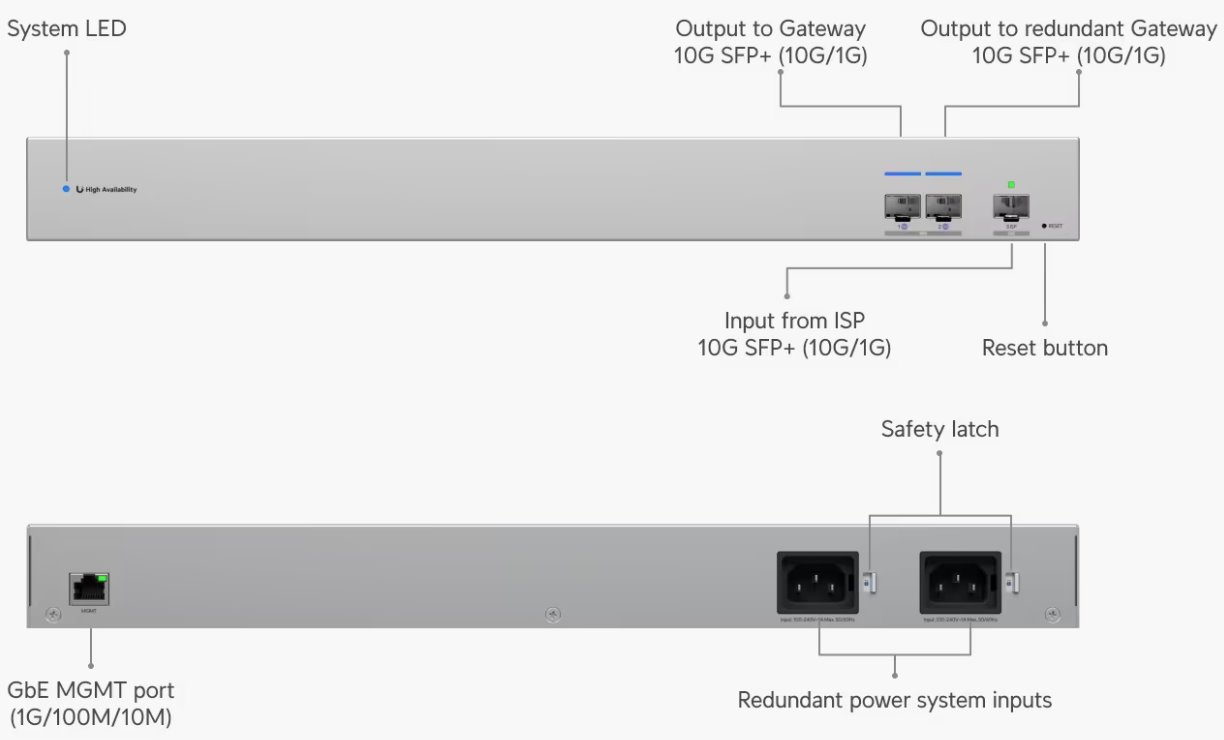

Ubiquiti USW-WAN is a 10-Gigabit WAN switch designed for high-availability networks. It aggregates the connection of 2 UniFi Cloud Gateways in Shadow Mode into a single output towards the ISP*, ensuring redundancy in the event of a failure of one of them. The switch is equipped with (2) 10G/1G SFP+ ports for connecting UniFi Cloud Gateways and (1) 10G/1G SFP+ port for WAN connectivity. Power is supplied by two integrated redundant 230V AC power supplies. A (1) 1G/100M/10M Management port is available for device management.
* If you want to use both a primary and backup uplink, a pair of USW-WAN switches is required.
Shadow Mode for High Availability

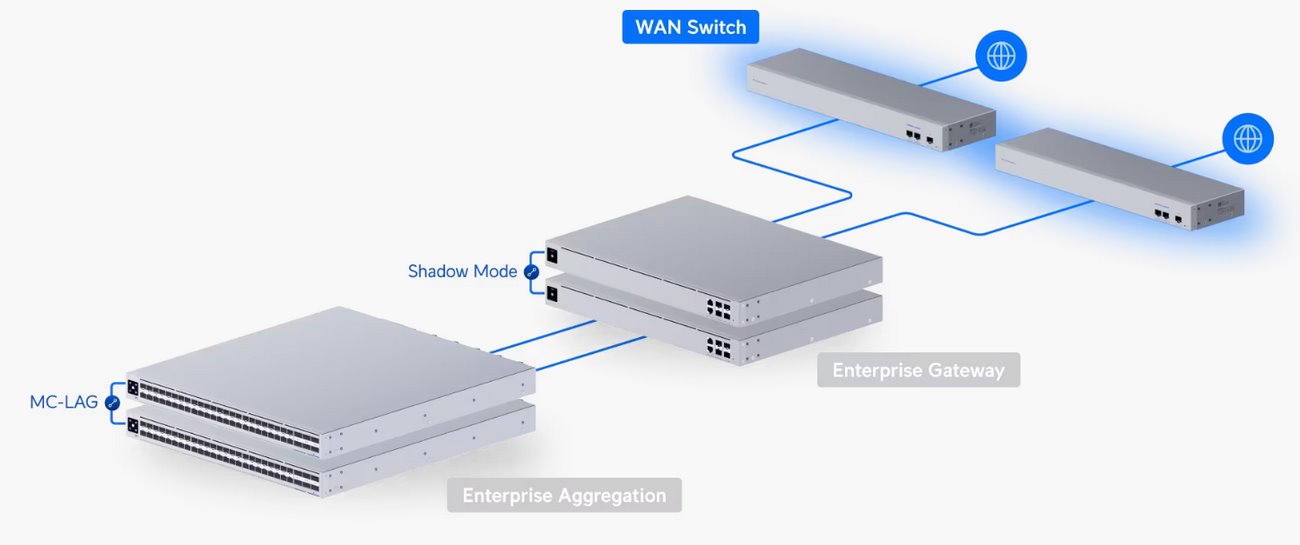

Shadow Mode ensures gateway high availability by seamlessly transferring gateway and management functionality to a secondary unit in the event of a primary unit failure. Leveraging Virtual Router Redundancy Protocol (VRRP) and firewall connection state tracking, this transition is virtually invisible to end users, maintaining uninterrupted productivity. The mode is available for UDM-Pro-Max, UDM-Pro, UDM-SE, and EFG models with UniFi OS version 4.0.6 or later, and always requires a pair of identical models.
Shadow Mode is just one of the high-availability features – a complete overview of solutions can be found on Ubiquiti’s official website.
Management via UniFi Network Server
The USW-WAN does not have a built-in web interface but is centrally managed via the UniFi Network Server with support from the UniFi mobile app. The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch features through a graphical user interface from anywhere.
Package Contents
Download
Datasheet Qucik GuideGPSR
