Ubiquiti Wave-AP, UISP Wave Access Point - Bazar

Product description

The product has original package, complete accessories and was used on the exhibition.

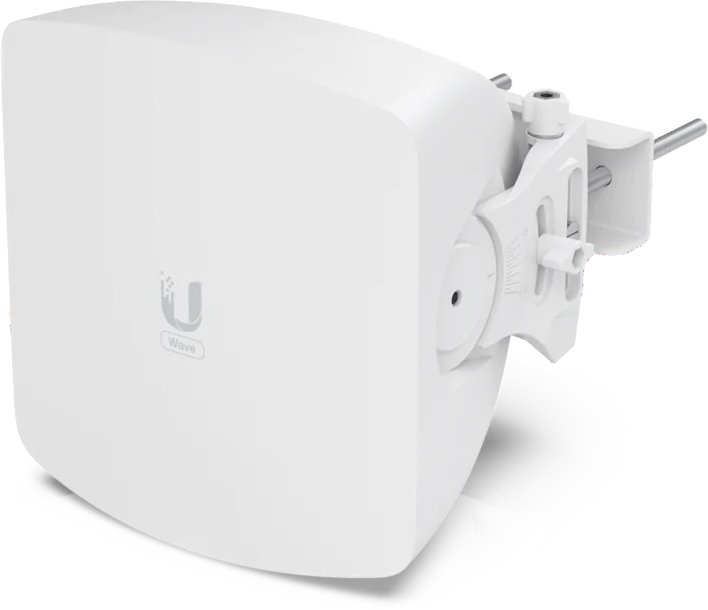

Wave Access Point is a 60GHz point-to-multipoint (PtMP) transmitter unit with built-in 5 GHz backup (WiFi 6 - 802.11ax) from Ubiquiti with a range of up to up to 8 km against the Wave LR or 5 km against the smaller Wave Nano unit and is ideal for ISPs. The very discreet device is also equipped with integrated GPS, Bluetooth for simple initial setup from a mobile via the UISP mobile application, a 2.5 Gigabit LAN port with PoE support and SFP+ port. The LAN port is functional only if the SFP+ port is not used. The device only supports bridge mode and supports both 1080 and 2160 MHz channel width in the 60GHz spectrum. The maximum throughput indicated by the manufacturer at 16 QAM is 5.4 Gbps (2.7 Gbps full duplex).

Key Features

• Compact dimensions - 212 × 205 × 187 mm
• 60GHz spectrum with low interference - 57 to 71 GHz
• Range of up to 8 km - depends on the regulation in the country used, support of up to 15 clients
• Throughput 5.4 Gbps (2.7 Gbps FD)
• Supports half channel width to achieve longer distance or better availability in bad weather
• Supported channels: 58320, 59400, 60480, 61560, 62640, 63720, 64800, 65880, 66960, 68040, 69120, 70200 MHz- depends on place of use
• 2.5 Gigabit LAN port with passive PoE support (24 or 48V DC) + (1) SFP+ (1/10 Gbps)
• Built-in GPS
• Settings via web management and bluetooth - UISP mobile application

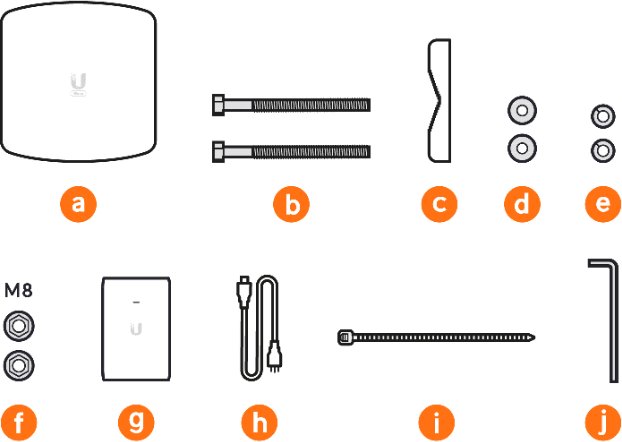

Package contents

• Device
• Fine Tuning Holder
• PoE power adapter 48 V/0.65 A
• Power cord
