Ubiquiti WaveFiber ONU, 5-Pack
Ubiquiti WaveFiber ONU, 5-Pack
×
0/0
New product
Your price excl. VAT
154.14 EUR
| Recycling fee | 0.35 EUR |
|---|---|
| Your price with RF | 154.49 EUR |
| Your price incl. VAT (21%) | 186.93 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904697 | |
| Part No. | Wave-Fiber-ONU-5 | |
| Warranty | 24 months | |
You have a choice of 3 variantscompare all
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 31.12.2025
PCU5E-5-MSC
3.78 EUR excl. VAT
4.57 EUR incl. VAT
stiqtyfree:469
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Optics
Transmission speed:
2.488 / 1.244 Gbps
Wavelength - Tx/Rx [nm]:
1310 / 1490
Distance [km]:
20
Transfer type:
GPON
Polishing type:
APC
Tx power [dBm]:
1.5 up to 5
Receiver sensitivity [dBm]:
-8 up to -28
Connectors and Interfaces
Optical Connectors:
(1) SC
LAN speed:
(1) 100/1000/2500Mbps
Power
Power over Ethernet:
20 .. 28V DC
Max. power consumption [W]:
5
Physical characteristics
Material:
Polycarbonate
Buttons:
Reset
Operating temperature [°C]:
-15 up to 45
Weight [g]:
78

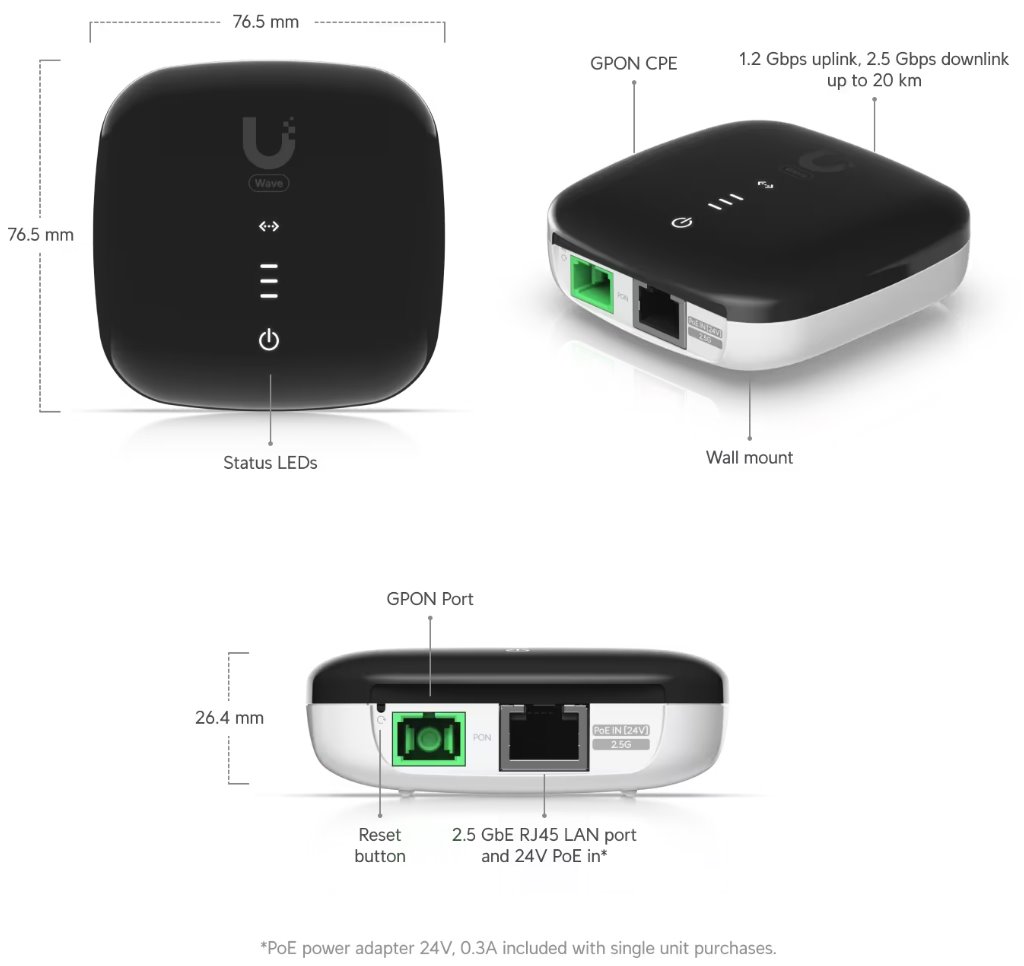

Width [mm]:
77
Height [mm]:
26
Depth [mm]:
77
Product description
Modern, elegant industrial design, robust construction, and high performance – that’s the Wave-Fiber-ONU, a client unit for GPON solutions. The device functions as a converter from copper to fiber and supports both Bridge and Router modes. It features a 2.5G LAN port, which also provides power via 24V passive PoE. The unit’s maximum power consumption is 5W.
Device Status Information

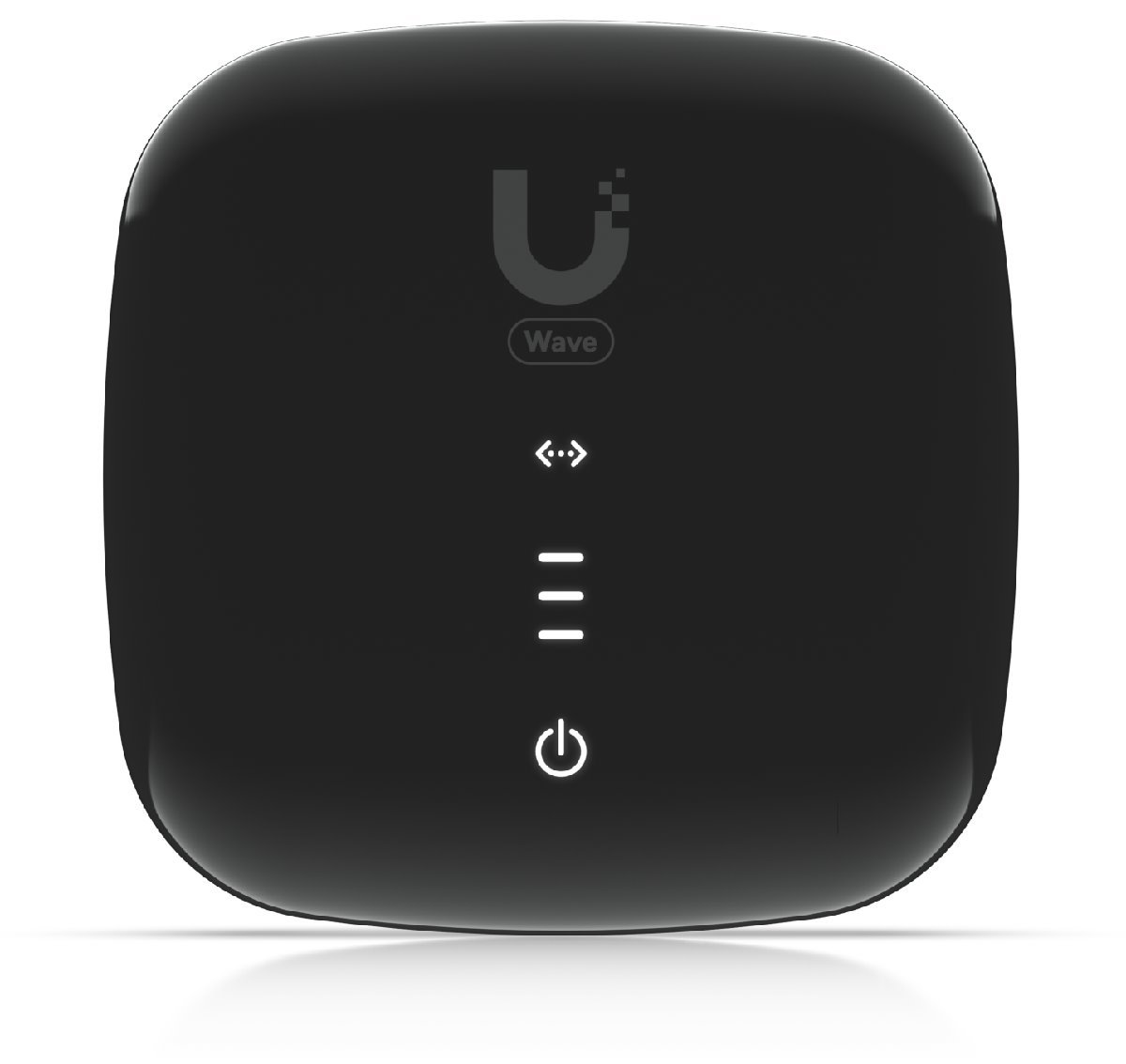

The unit is equipped with three status LEDs – Ethernet connection, received signal strength, and power indication.
GPON Technology
A single GPON port can support up to 128 CPE units at a distance of up to 20 km. The ONU unit is compatible with the UF-OLT and also with selected third-party OLT units – more information can be found here.
Package Contents
Does NOT include PoE power adapters.
