UNV IP bullet camera - IPC2324LB-ADZK-H , 4MP, 2.8-12mm, easy
UNV IP bullet camera - IPC2324LB-ADZK-H , 4MP, 2.8-12mm, easy
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10980598 | |
| Part No. | IPC2324LB-ADZK-H | |
| Warranty | 36 months | |
You have a choice of 3 variantscompare all
4MP, 2.8-12mm
IPC2324LB-ADZK-H
Price after login
TR-JB05-B-IN
Price after login
Expected 12.6.2025
TR-A01-IN
Price after login
In Stock
SDCS2/256GB
19.97 EUR excl. VAT
24.19 EUR incl. VAT
In Stock
SDCE/256GB
25.20 EUR excl. VAT
30.52 EUR incl. VAT
To order within 7d
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Varifocal - motorized
Lens [mm]:
2,8 to 12 (adjustable)
Illumination:
IR
Illumination range [m]:
50
Viewing Angle [°]:
35 up to 86
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,003
Image sensor ["]:
1/3
Resolution:
4MP
Max. resolution [pixels]:
2688 x 1520
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
9,6
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP20
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
510
Width [mm]:
73
Height [mm]:
73
Depth [mm]:
206
Color:
White
Compression standard
Bit rate:
128Kbps ~ 6Mbps
Number of streams:
2
Video compression:
MJPEG, H.264, H.265
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

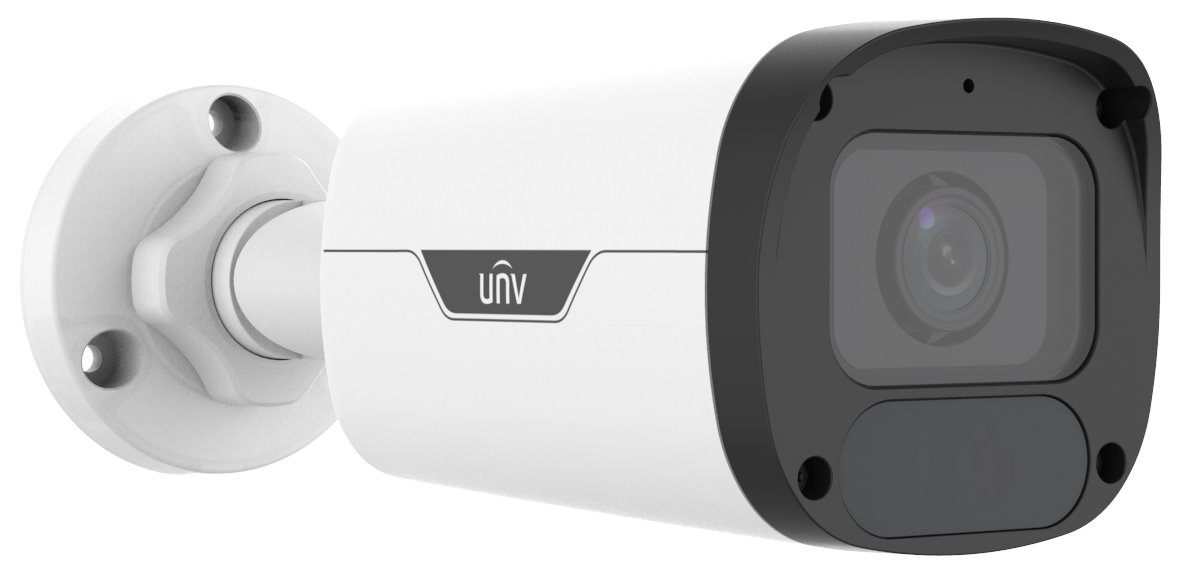

IP camera in Bullet design, equipped with a 4MP sensor (2688 x 1520, 30 fps), varifocal lens with a focal length of 2.8-12mm, viewing angle of 35°-86°, IR illumination up to 50m, 120dB true WDR against direct light, microphone, microSD card slot up to 256GB, 1/3" sensor, and IP67 certification against water. The camera can be powered via a 12V DC adapter or conventional POE 802.3af from either a switch or injector. The maximum power consumption of the camera is 9.6W.
Key Features
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets and within a few years of its existence, it has risen to the top in sales volume and has become known for its products that emphasize quality workmanship while maintaining a reasonable price. Even the products of the basic range have many advanced features.
