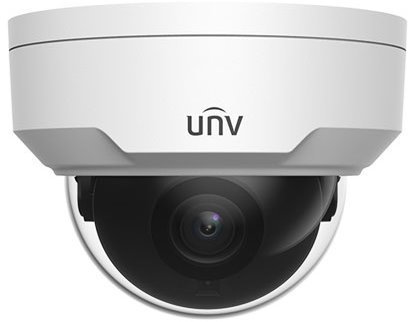

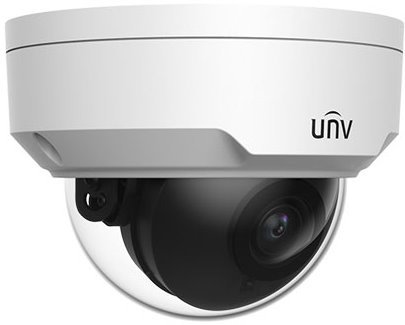

UNV IP dome camera - IPC325SB-DF28K-I0, 5MP, 2.8mm, 30m IR, Prime
UNV IP dome camera - IPC325SB-DF28K-I0, 5MP, 2.8mm, 30m IR, Prime
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10902701 | |
| Part No. | IPC325SB-DF28K-I0 | |
| Warranty | 36 months | |
You have a choice of 2 variantscompare all
2.8mm
IPC325SB-DF28K-I0
Price after login
TR-JB03-G-IN
Price after login
In Stock
TR-JB07/WM03-G-IN
Price after login
In Stock
TR-WM03-D-IN
Price after login
In Stock
TR-CM24-IN
Price after login
In Stock
HS-205S
8.01 EUR excl. VAT
9.69 EUR incl. VAT
In Stock
SDCS2/256GB
19.97 EUR excl. VAT
24.19 EUR incl. VAT
In Stock
SDCE/256GB
25.20 EUR excl. VAT
30.52 EUR incl. VAT
To order within 7d
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
True WDR (120 dB) - LightHunter
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
96
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,003
Image sensor ["]:
1/2.7
Resolution:
5MP
Max. resolution [pixels]:
2880 x 1620
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
4,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Buttons:
Reset
Operating temperature [°C]:
-30 up to 60
Weight [g]:
425
Width [mm]:
109
Height [mm]:
81
Depth [mm]:
109
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Prime
Technology and conveniences:
Face detection
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description
New PRIME series ensures ultra-high image quality in low illumination environment.
IP camera DOME, which features a 5MP sensor (2880 x 1620, 25 fps), a lens with a fixed focal length of 2,8 mm, viewing angle 96°, IR night-time illumination up to 30 m, 120dB true WDR against direct light, audio and alarm input/output, microSD card slot up to 256 GB and 1/2,7" sensor.
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 4.5 W!
All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
