UNV IP fisheye camera - IPC815SR-DVPF14, 5MP, 1.4mm, Prime
We are sorry, this product is no longer in our offer.
UNV IP fisheye camera - IPC815SR-DVPF14, 5MP, 1.4mm, Prime
×
0/0
Special offer
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.72 EUR excl. VAT
4.50 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
1,4 (fixed)
Illumination:
IR
Illumination range [m]:
10
Viewing Angle [°]:
360
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/2.8
Resolution:
5MP
Max. resolution [pixels]:
2592 x 1944
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 256GB
Audio:
1 input, 1 output, Microphone
Alarm:
Yes
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
0,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP66
Purpose:
Outdoor
Antivandal (Impact protection):
IK10
Buttons:
Reset
Operating temperature [°C]:
-40 up to 60
Weight [g]:
390
Width [mm]:
125
Height [mm]:
44
Depth [mm]:
125
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Prime
Technology and conveniences:
Face detection
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

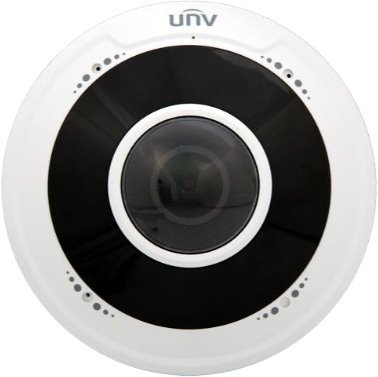

IP camera FISH EYE, which features a 5 MP sensor (2592 x 1944, 20 fps), a 1.4 mm lens and an IR night-time illumination up to 10 m and it is equipped with a 1/2.8 " sensor. Camera has built-in microSD card slot up to 256 GB
The camera can be powered via a 12V DC adapter or a standard POE 802.3af from either a switch or an injector. The maximum power consumption of the camera is only 8.9 W!
Unlike the most others cameras in manufacturer's portfolio this camera only supports image encoding using the Ultra 265/H264 codecs. The WDR function is a matter of course and you will also enjoy the presence of a microphone and speaker with the possibility of two-way communication
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
