UNV IP KIT, NVR NVR301-04LB-P4 + 4x IP turret camera IPC3612LR3-PF28-D, 2MP
We are sorry, this product is no longer in our offer.
UNV IP KIT, NVR NVR301-04LB-P4 + 4x IP turret camera IPC3612LR3-PF28-D, 2MP
×
0/0
FS-A1-250-G
16.54 EUR excl. VAT
20.01 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.61 EUR excl. VAT
0.74 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.69 EUR excl. VAT
4.46 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Digital
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
87
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,02
Image sensor ["]:
1/2.7
Resolution:
2MP
Max. resolution [pixels]:
1920 x 1080 (Full HD)
Connectors and Interfaces
Number of Sata connectors:
1
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
5,5
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Design:
Desktop
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:

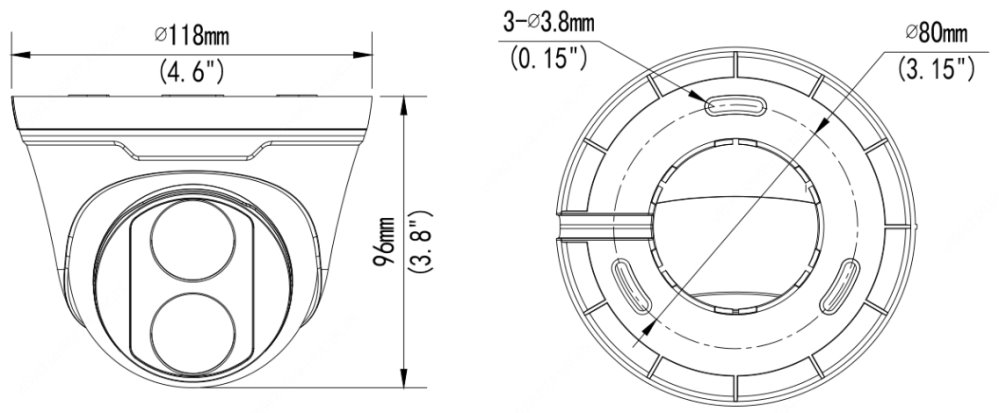

200
Width [mm]:
118
Height [mm]:
96
Depth [mm]:
118
Color:
White
Hardware
Supported HDD capacity [TB]:
10
Compression standard
Number of streams:
3
Video compression:
H.264, H.265, MJPEG
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description
Recorder description

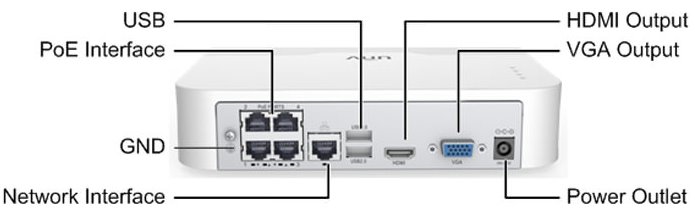

Medium NVR device for 4 IP cameras and 1 HDD up to 10 TB. Recorder is equipped with 8 POE ports 10/1000 Mbps and one 10/100Mbps Ethernet port for network connection. Cameras can be powered by maximum 30 W on one port. Maximum consumption of the device is less than 5.5 W (without connected HDD). The device is powered by 52V DC adapter which is also included. This NVR also includes HDMI and VGA connectors for pluging a monitor and for the connection of peripherals can be used 2 USB ports.
Maximum input rate is 40 Mbps, output rate is 40 Mbps. It supports Ultra 265 / H.265 / H.264 codecs and also allows you to connect third-party cameras that support standard ONVIF.
Camera description

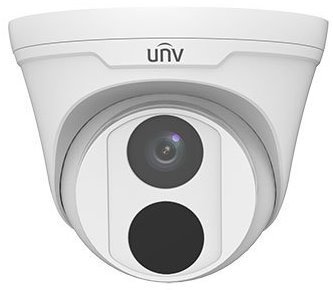

IP camera DOME features a 2MPx sensor (1920 x 1080, 25 fps), a 2.8mm lens and an IR night-time illumination up to 30 m and it is equipped with a 1/2.7" sensor it also has a body that allows 3-axis lens rotation.
The camera can be powered via a 12V DC adapter. The maximum power consumption of the camera is only 5.5 W! All Uniview cameras support image encoding using the H.265 codec (as well as H.264 and MJPEG) and Ultra 265 - a modified standard derived from H.265, which enhances its original properties. Of course there is WDR and many smart features like motion detection, face detection, intrusion detection, human counting, and more.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
Package Contents
