UNV IP turret kamera - IPC3618LB-ADF28K-G , 8MP, 2.8mm, easy
We are sorry, this product is no longer in our offer.
UNV IP turret kamera - IPC3618LB-ADF28K-G , 8MP, 2.8mm, easy
×
0/0
TR-UP06-IN
Price after login
stiqtyfree:21
_17:
avail:0
infocode: stock
queu:
In Stock
TR-JB03-I-IN
Price after login
stiqtyfree:9
_17:
avail:0
infocode: stock
queu:
In Stock
TR-A01-IN
Price after login
stiqtyfree:7
_17:
avail:0
infocode: stock
queu:
In Stock
TR-JB07/WM03-G-IN
Price after login
stiqtyfree:3
_17:
avail:0
infocode: stock
queu:
In Stock
TR-WM03-D-IN
Price after login
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Expected 24.10.2025
TR-SE24-IN
Price after login
stiqtyfree:0
_17:
avail:0
infocode: avail
queu:
Not in stock
TR-SE24-A-IN
Price after login
stiqtyfree:0
_17:
avail:21
infocode: avail
queu:
To order within 21d
TR-CM24-IN
Price after login
stiqtyfree:11
_17:
avail:0
infocode: stock
queu:
In Stock
TR-UM06-E-IN
Price after login
stiqtyfree:5
_17:
avail:0
infocode: stock
queu:
In Stock
PCU5E-1YW-MS
0.63 EUR excl. VAT
0.76 EUR incl. VAT
stiqtyfree:10
_17:
avail:2
infocode: stock
queu:
In Stock
PCU5E-5-MSC
3.79 EUR excl. VAT
4.59 EUR incl. VAT
stiqtyfree:510
_17:
avail:2
infocode: stock
queu:
In Stock
Parameters
Download
GPSR
Technical parameters
Camera
WDR:
Optical WDR (up to 120dB)
Lens type:
Fixed
Lens [mm]:
2,8 (fixed)
Illumination:
IR
Illumination range [m]:
30
Viewing Angle [°]:
107
Day/night mode:
IR cut filter
Minimum illumination [Lux]:
0,01
Image sensor ["]:
1/2.7
Resolution:
8MP
Max. resolution [pixels]:
3840 x 2160 (4K UHD)
Connectors and Interfaces
Slot for Memory Card:
microSD - up to 512GB
Audio:
Microphone
LAN speed:
(1) 10/100Mbps
Power
Power over Ethernet:
802.3af
Power type:
PoE, DC connector
Max. power consumption [W]:
4
Power via connector/terminal:
12V DC
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-30 up to 60
Weight [g]:
290
Width [mm]:
118
Height [mm]:
95
Depth [mm]:
118
Color:
White
Compression standard
Bit rate:
128Kbps ~ 16Mbps
Number of streams:
2
Video compression:
MJPEG, H.264, H.265, Ultra 265
General
Camera class:
Easy
Software
Default IP address:
Dynamic from DHCP, 192.168.1.13
Default login and password:
admin / 123456
Product description

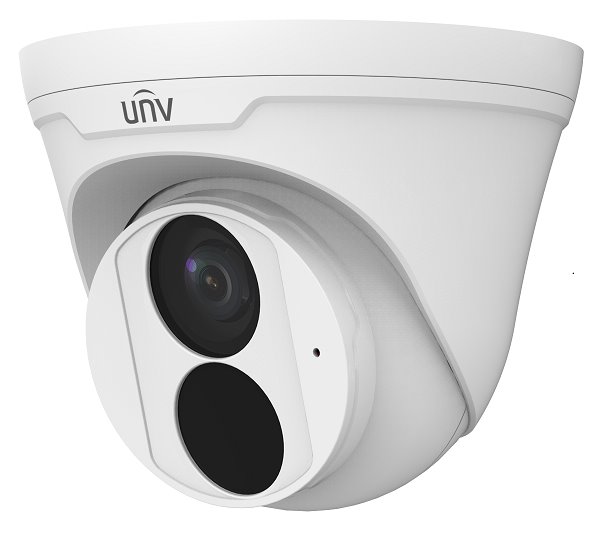

IPC3618LB-ADF28K-G is an 8-megapixel outdoor turret camera by Uniview, featuring a fixed 2.8mm lens with a 107° field of view and IR range up to 30m. The camera has an IP67 rating, 120dB WDR sensor for clear image in strong light scene, microSD slot supports 512GB MicroSD card, camera has H.265 codec support.
The camera has a maximum power consumption of 4 W with IR illumination on and can be powered via a 12V DC connector or through PoE 802.3af.
Key Features
Manufacturer Uniview
The manufacturer Uniview is a dynamically evolving company in both the domestic (Asian) and European markets. In just a few years of existence, it has risen to the top ranks in sales volume, known for its products that emphasize quality craftsmanship while maintaining competitive pricing. Even its basic line products feature many advanced functions.
