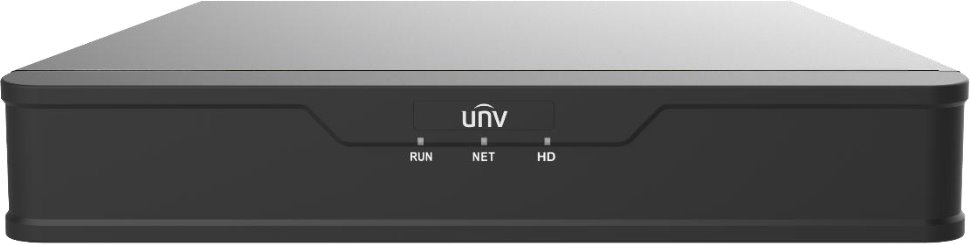

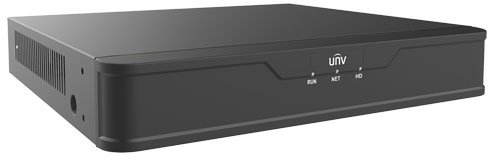

UNV NVR NVR301-04X-P4, 4 channels, 4x PoE, 1x HDD, easy
Your price excl. VAT
Manufacturer |
Uniview |
|
---|---|---|
Code | 10902678 | |
Part No. | NVR301-04X-P4 | |
Warranty | 36 months |
M9905
1.42 EUR excl. VAT
1.72 EUR incl. VAT
In Stock
WD10PURZ
48.36 EUR excl. VAT
58.59 EUR incl. VAT
In Stock
WD23PURZ
66.18 EUR excl. VAT
80.15 EUR incl. VAT
In Stock
WD43PURZ
95.09 EUR excl. VAT
115.13 EUR incl. VAT
In Stock
ST4000VX016
81.61 EUR excl. VAT
98.82 EUR incl. VAT
In Stock
WD33PURZ
87.13 EUR excl. VAT
105.50 EUR incl. VAT
In Stock
WD64PURZ
139.23 EUR excl. VAT
168.54 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.57 EUR excl. VAT
0.69 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.14 EUR excl. VAT
3.80 EUR incl. VAT
In Stock
Parameters
Download
Technical parameters
Max. recording resolution:
8MP

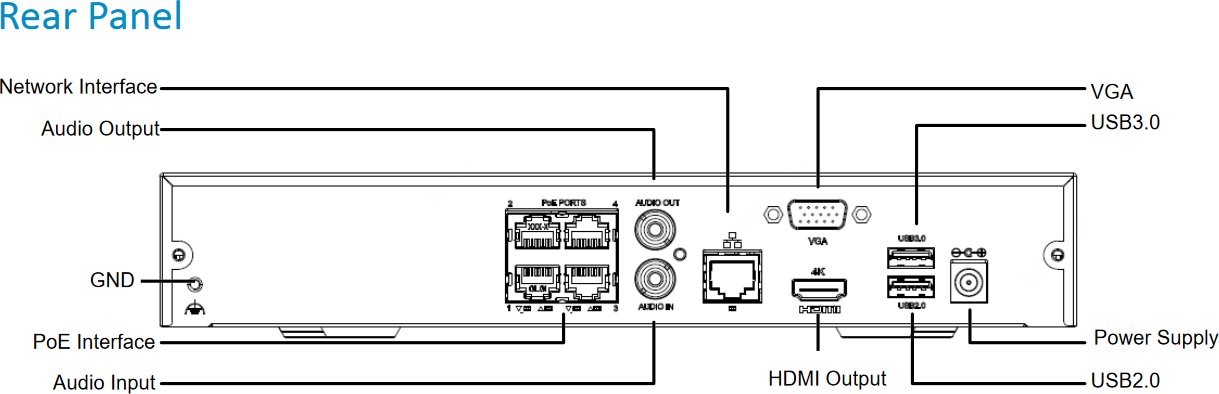

Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
1
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
LAN speed:
(1) 10/100Mbps
USB ports 2.0:
1
HDMI interface:
Yes
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
4
PoE budget [W]:
54
Max. power consumption [W]:
9
Power via connector/terminal:
48V DC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Operating temperature [°C]:
-10 up to 55
Weight [g]:
1000
Width [mm]:
260
Height [mm]:
47
Depth [mm]:
240
Hardware
Number of supported IP cameras:
4
Number of supported HDD:
1
Supported HDD capacity [TB]:
6
Incoming bandwidth [Mb/s]:
80
Outgoing bandwidth [Mb/s]:
64
Compression standard
Video compression:
H.264, H.265
General
Camera class:
Easy
Product description
Middle-end NVR device for 4 IP cameras and 1 HDD up to 6 TB. Recorder is equipped with 4 PoE ports 10/100 Mbps and one LAN port 10/100 Mbps for network connection.
The cameras can be powered with a total power of 54 W. The maximum power per port is 30 W.
Max consumption of the device is less than 9 W (without connected HDD).
The device is powered by 48 DC adapter which is included.
Maximum input rate is 80 Mbps, output rate is 64 Mbps. It supports Ultra 265 / H.265 / H.264 codecs and also allows you to connect third-party cameras that support standard ONVIF.
Manufacturer Uniview
The manufacturer Uniview is a dynamically developing company in both the domestic (Asian) and European markets, and in a few years of its existence, it has become the leader in sales volume and has become well-known for its products, where places emphasis on quality processing while maintaining a reasonable price. Even basic products have many advanced features.
