UNV NVR NVR302-08E-P8-B, 8 channels, 8x PoE, 2x HDD - Bazaar
We are sorry, this product is no longer in our offer.
UNV NVR NVR302-08E-P8-B, 8 channels, 8x PoE, 2x HDD - Bazaar
×
0/0
Unpacked
-32%
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Max. recording resolution:
12MP
Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
2
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
Alarm:
Yes
LAN speed:
(1) 10/100/1000Mbps + (8) 10/100Mbps
USB ports 2.0:
1
HDMI interface:
Yes
Power
PoE-Out standards:
802.3af, 802.3at
PoE Out ports:
8
PoE budget [W]:
130
Max. power consumption [W]:
20
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
"U" positions:
1
Operating temperature [°C]:
-10 up to 55
Weight [g]:
2420
Width [mm]:
380
Height [mm]:
46
Depth [mm]:
315
Hardware
Number of supported IP cameras:
8
Number of supported HDD:
2
Supported HDD capacity [TB]:
8
Incoming bandwidth [Mb/s]:
80
Outgoing bandwidth [Mb/s]:
160
Compression standard
Video compression:
H.264, H.265
General
Technology and conveniences:
Face detection, Fisheye dewarping, People counting
Software
Raid level:
1 - mirroring
Default IP address:
192.168.1.30
Default login and password:
admin / 123456
Product description
The goods have been unpacked, may not be in the original packaging, or the packaging may be damaged. However, the goods are complete and without any damage.

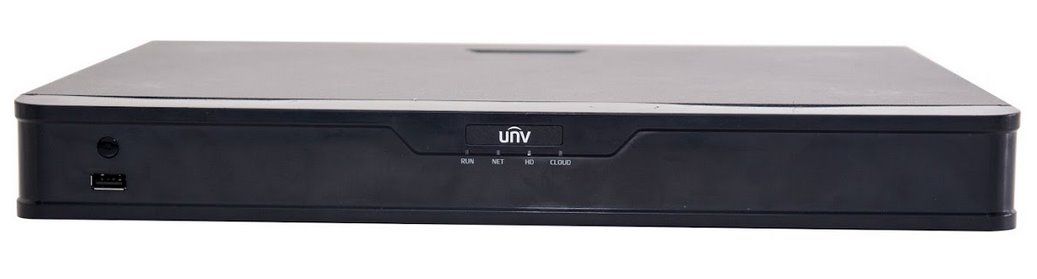

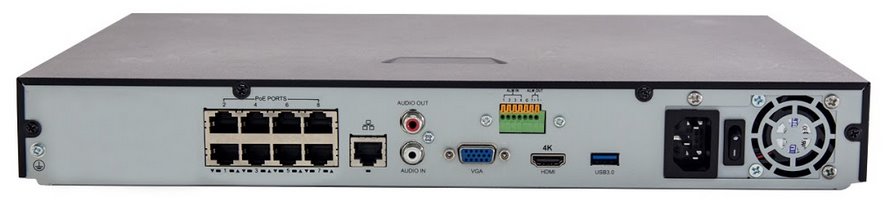

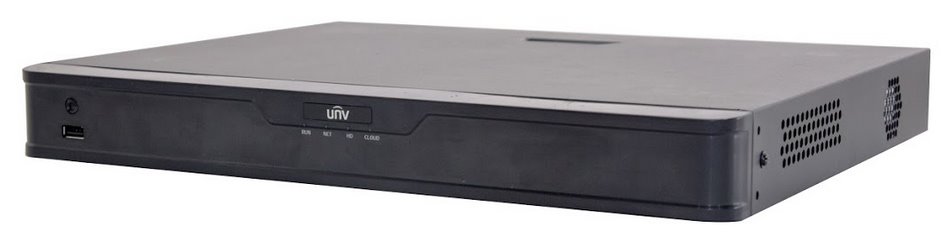

NVR device for 8 IP cameras. You can insert up to 2 HDDs, up to 8TB capacity of each HDD. Recorder is eguipped with 8 POE ports 10/100Mbps and one Gigabit LAN port for network connection.
The cameras can be powered with a total power of 130W, with the maximum power per port being 30W.
Max consumption of the device is less than 20W(without HDDs).
