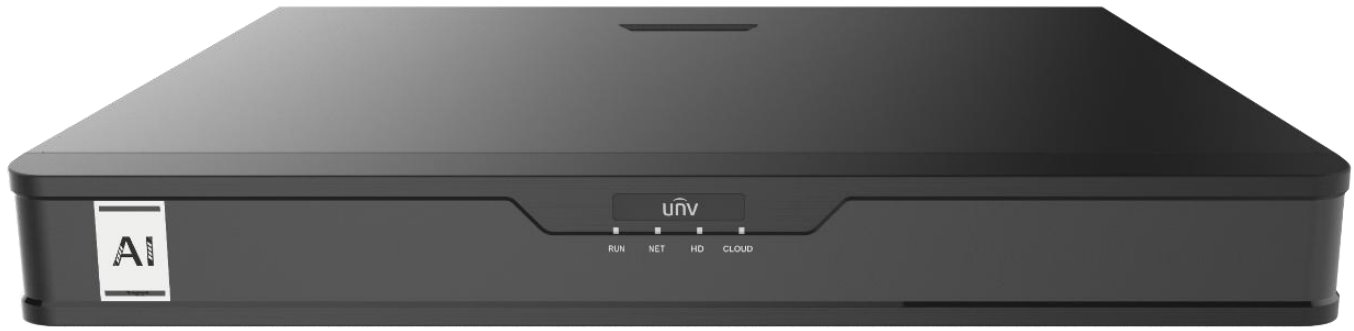

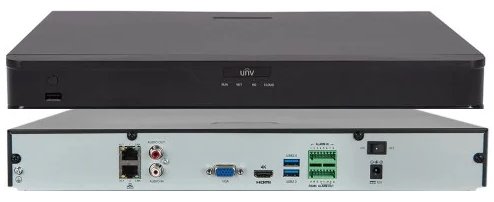

UNV NVR NVR302-16E-IF, 16 channels, 2x HDD, face recognition
UNV NVR NVR302-16E-IF, 16 channels, 2x HDD, face recognition
×
0/0
Your price excl. VAT
| Manufacturer |
Uniview |
|
|---|---|---|
| Code | 10902624 | |
| Part No. | NVR302-16E-IF | |
| Warranty | 36 months | |
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.71 EUR excl. VAT
4.49 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Max. recording resolution:
12MP

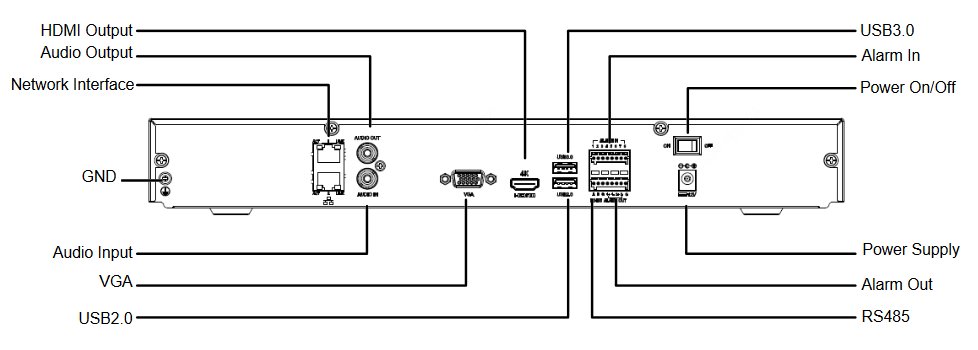

Connectors and Interfaces
USB ports 3.0:
1
Number of Sata connectors:
2
VGA connector:
Yes
HDMI interface (resolution) [pixels]:
3840 x 2160
Audio:
Yes
Alarm:
Yes
LAN speed:
(2) 10/100/1000Mbps
USB ports 2.0:
1
HDMI interface:
Yes
Power
Max. power consumption [W]:
7,5
Power via connector/terminal:
12V DC
Physical characteristics
Design:
Desktop, Rackmount
"U" positions:
1
Operating temperature [°C]:
-10 up to 55
Weight [g]:
2000
Width [mm]:
380
Height [mm]:
53
Depth [mm]:
315
Hardware
Number of supported IP cameras:
16
Number of supported HDD:
2
Supported HDD capacity [TB]:
10
Incoming bandwidth [Mb/s]:
160
Outgoing bandwidth [Mb/s]:
320
Compression standard
Video compression:
H.264, H.265
General
Camera class:
Prime
Technology and conveniences:
Face capture, Face detection, People counting
Product description
Advanced NVR from Uniview for 16 IP cameras with a resolution of up to 12 Mpx. The NVR supports face recognition - it can recognize up to 50 000 faces.
It is possible to connect 2 3.5" SATA hard drives with a capacity of up to 10 TB each. Input throughput 320 Mbps. Output throughput 160 Mbps, maximum number of remotely connected users is 128.
Support for third-party IP cameras compatible with the ONVIF - supported standards S, G and T profiles.
Download
Datasheet Firmware, software a manualyGPSR
