Wi-Tek WI-IOTBOXMINI, outdoor box

Product description

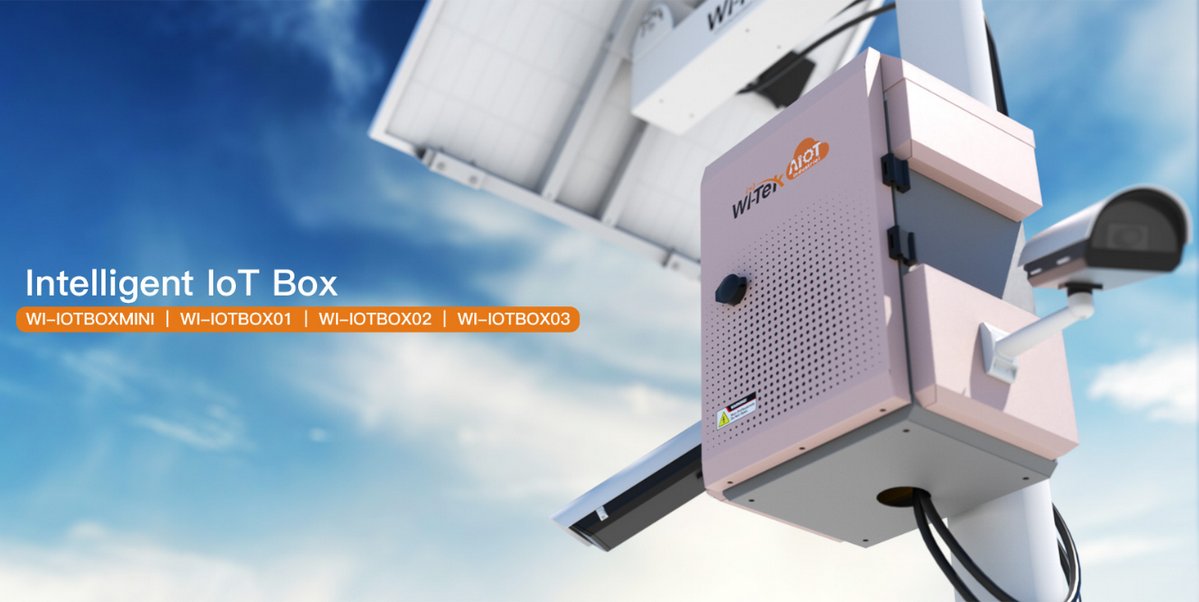

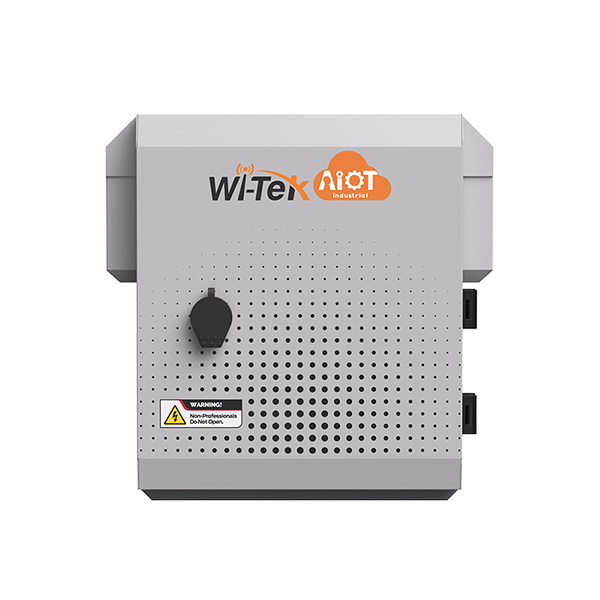

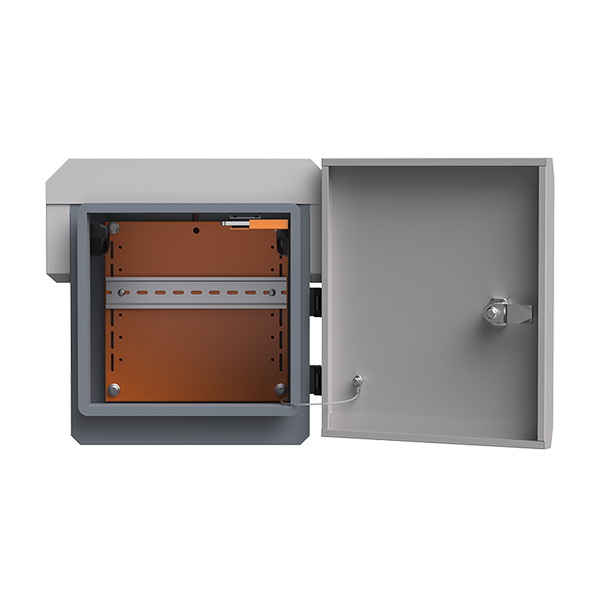

Wi-Tek Smart IoT Box Mini is an outdoor installation enclosure with external dimensions of 300 × 300 × 206.5 mm, providing an internal space of 250 × 250 × 180 mm. It is equipped with a rear mounting plate and (1) DIN rail. A 12V DC fan is located at the top of the enclosure, which, together with the ventilation openings at the bottom, ensures proper airflow and heat dissipation. Thanks to its IP65 rating and IK10 impact resistance, the box is suitable for outdoor and industrial installations such as CCTV systems, WLAN, Wi-Fi, or IoT.

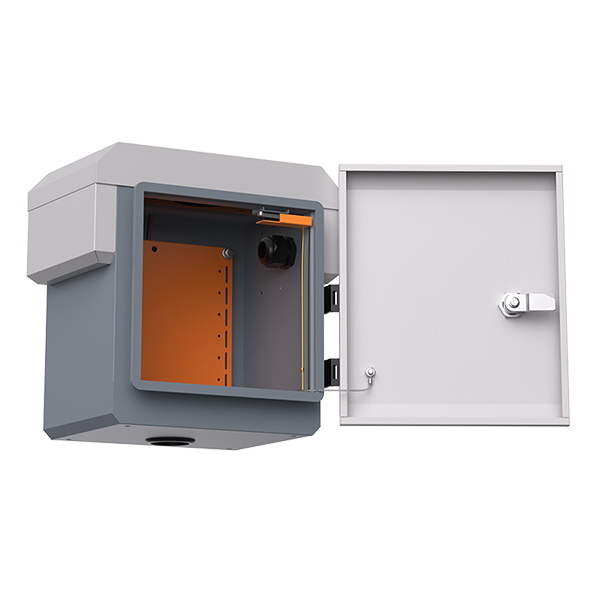

The flexible modular design allows equipment to be installed inside the box vertically or horizontally as needed. For mounting additional accessories such as cameras or wireless devices, the box is equipped with two removable side panels, each with its own waterproof cable gland. This significantly simplifies the installation of outdoor devices without the need for extra accessories and saves space on the pole.

Key Features

• IP65 Protection: Excellent dustproof and waterproof construction protects installed equipment.
• Robust IK10 Design: The durable enclosure withstands strong impacts.
• Advanced Material Protection: The aluminum alloy or stainless-steel construction ensures resistance to corrosion, UV radiation, aging, as well as acids and alkalis.
• Modular Installation: The top cover, side panels, DIN rail, mounting plate, waterproof connectors, fan, and microswitch are all removable for easier installation adjustments.
• Efficient Cooling: The fan combined with ventilation openings on the bottom creates optimal airflow for heat dissipation.
• Integrated Microswitch: The door microswitch can be connected to power, alarm I/O, or an external buzzer or siren.

Package Contents

• Installation box
• Quick Installation Guide
• (2) Waterproof cable glands
• (2) Keys
• Microswitch
• 25A Circuit breaker
• Grounding terminal
• DIN rail

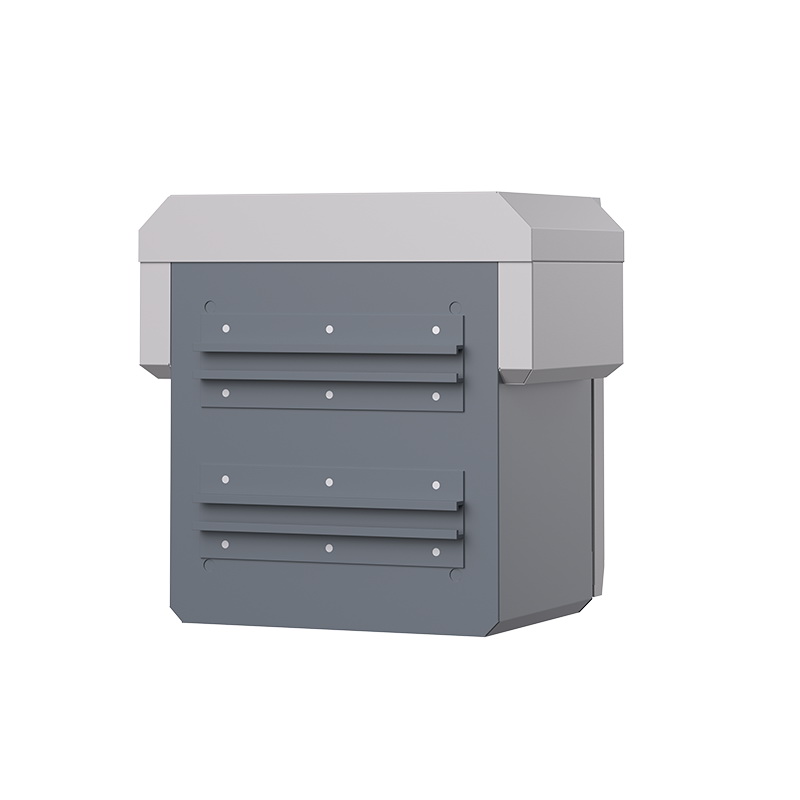

• Mounting accessories – wall, pole
