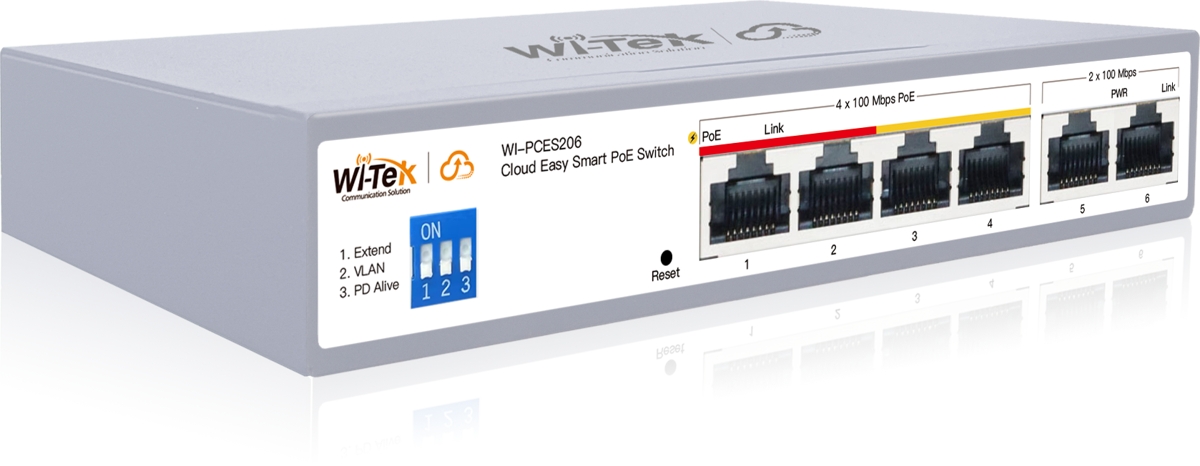

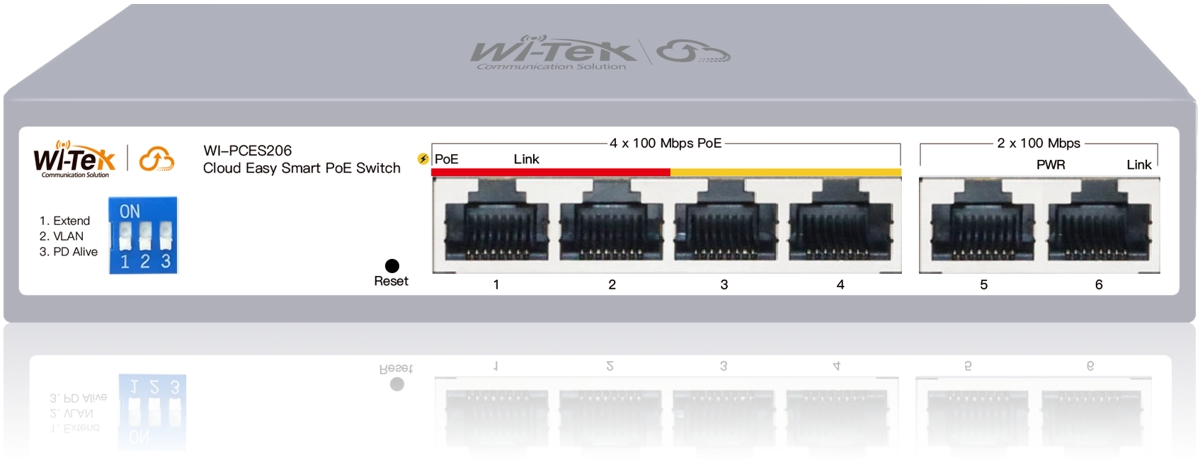

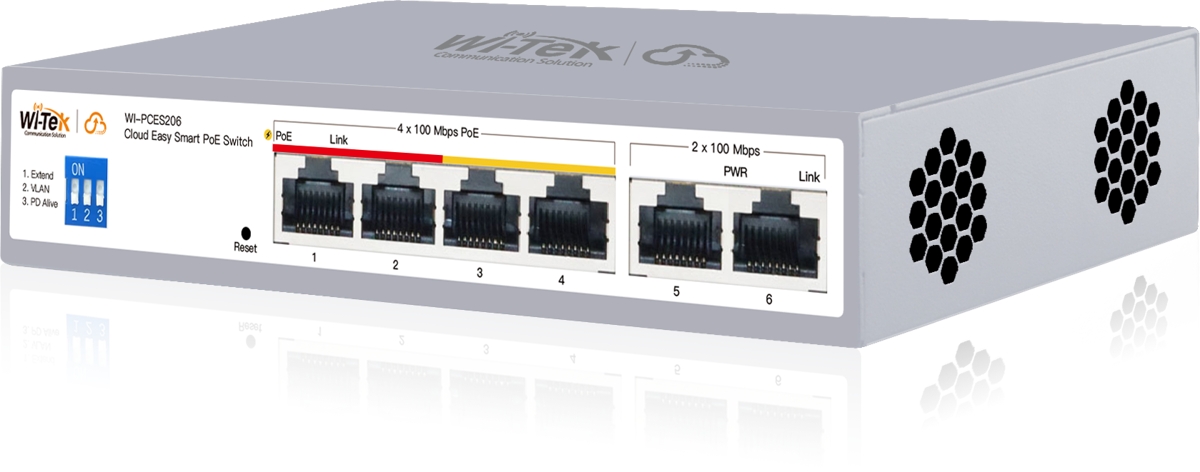

Wi-Tek WI-PCES206 Easy Smart Cloud PoE Switch

Product description

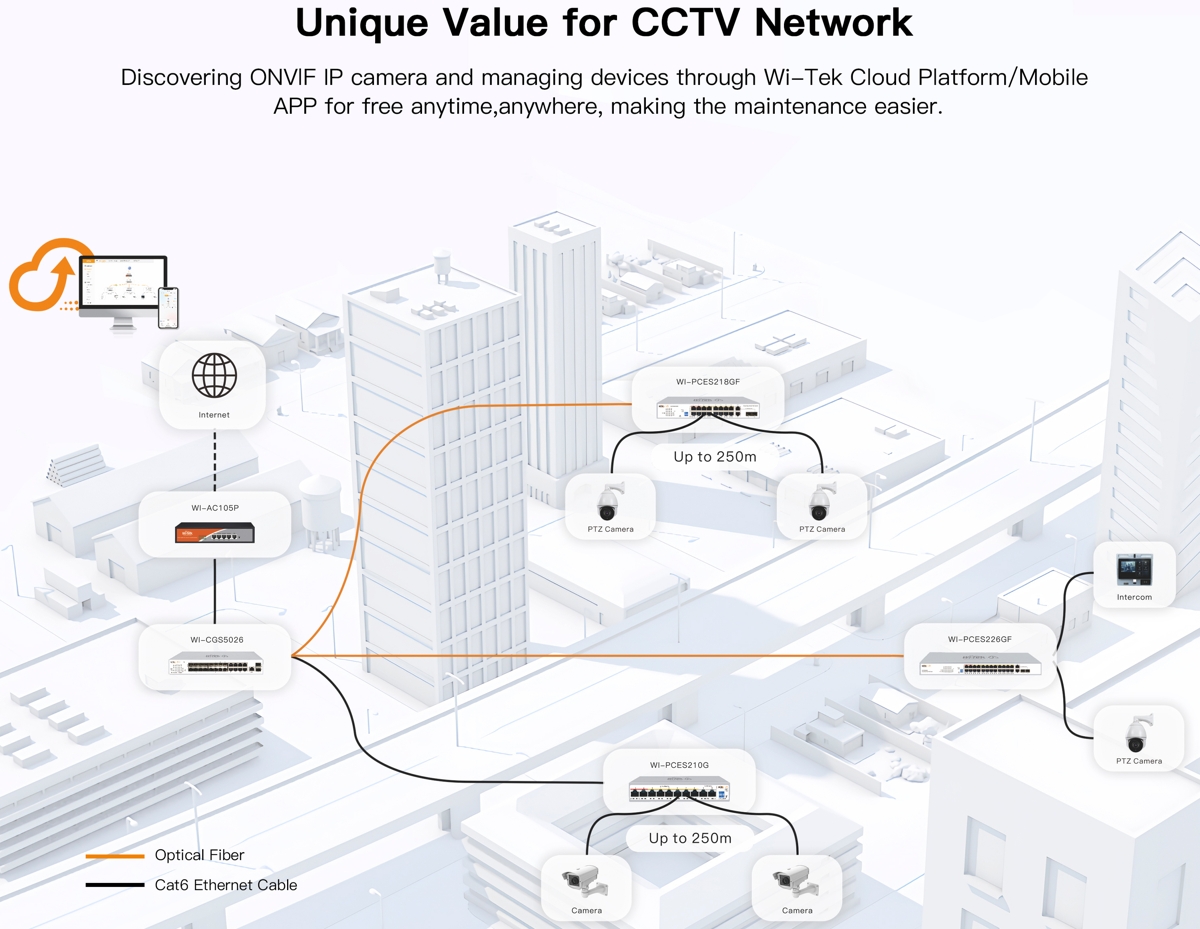

Wi-Tek WI-PCES206 is a reliable Easy Smart Cloud PoE Switch with a switching capacity of 1.2 Gbps, (4) PoE ports and (2) uplink ports. The downlink ports support PoE with a 60W budget. The switch is ideal for CCTV installations thanks to PoE, automatic detection of ONVIF devices for automatic camera detection, automatic IP camera reboot in case of connection failure and the option to extend the transmission distance of PoE ports up to 250m. The switch consumes 2.7W (without PoE load)

Key Features

• (4) 10/100Mbps PoE ports and (2) 10/100Mbps uplink ports
• Cloud management via Wi-Tek Cloud - provides efficient, simple, and secure remote device management, intelligent deployment, automatic network configuration, and abnormal event alerts
• PoE with a total budget of 60W
  • Ports 1-2 support Hi-PoE with power output of up to 45W/port
  • Ports 3-4 support PoE+ 802.3af/at with power output of up to 30W/port

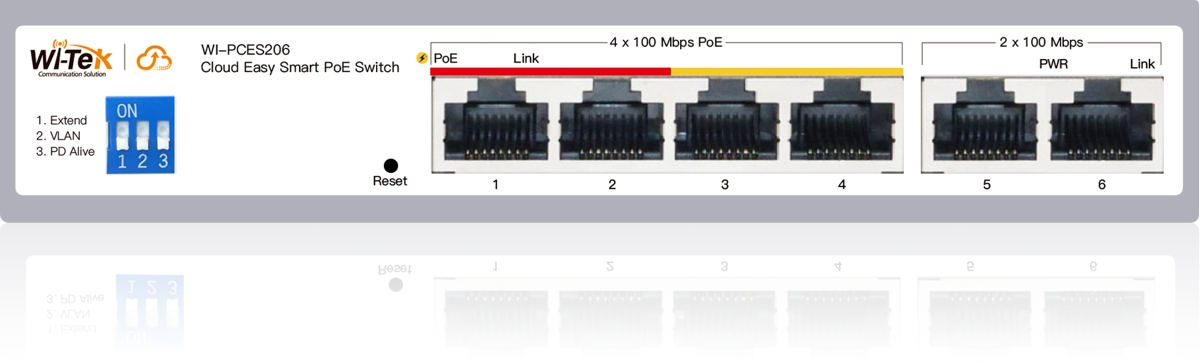

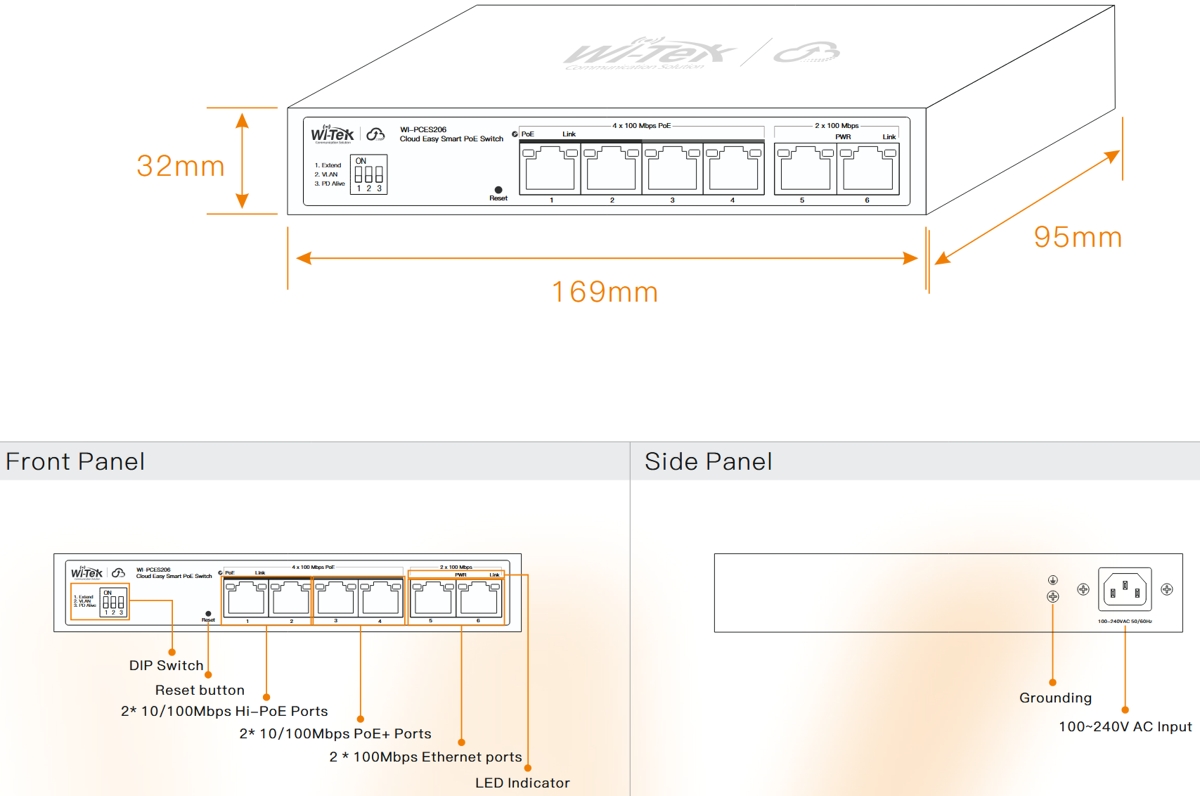

• The DIP switch controls the following modes:

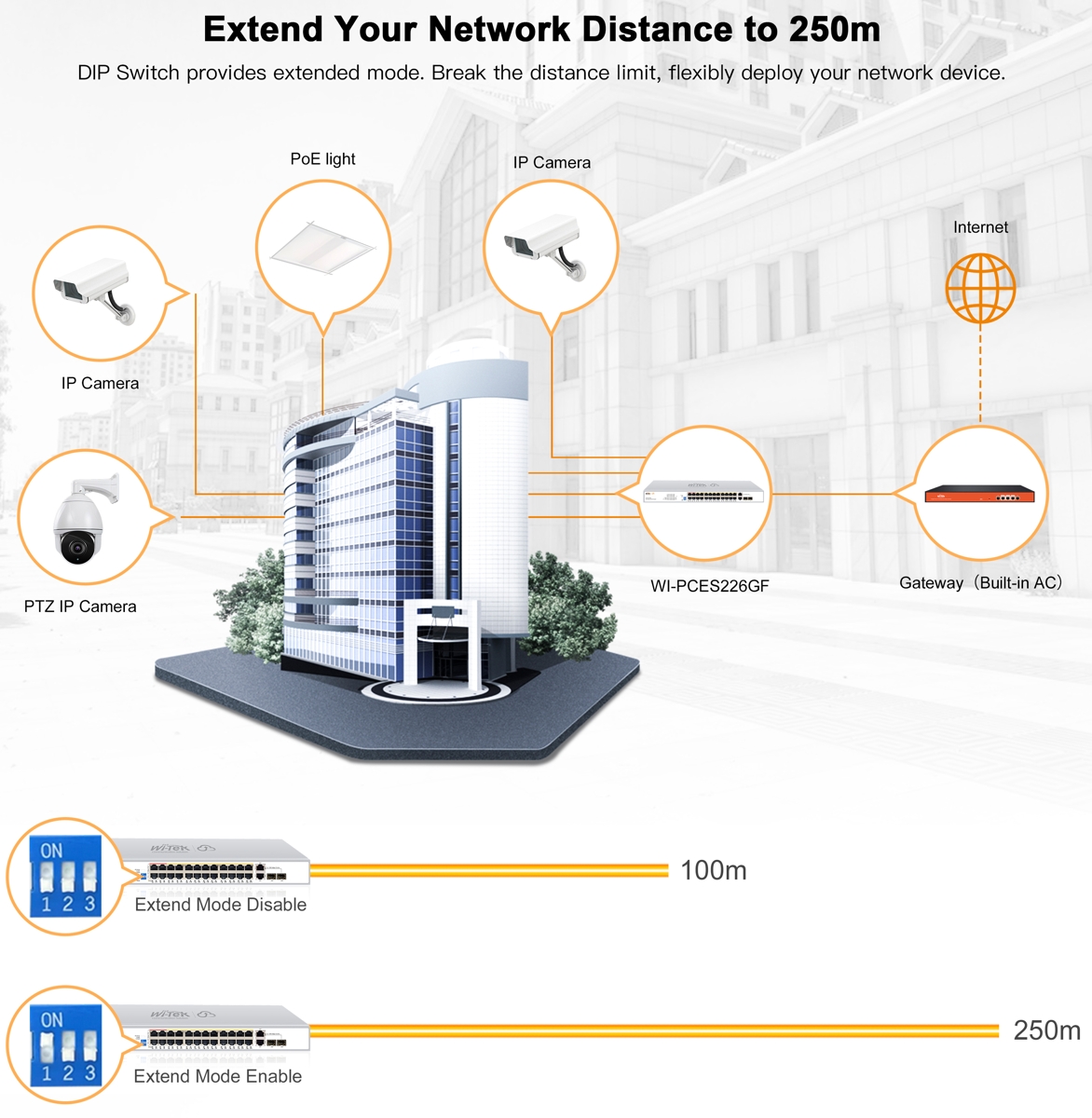

  1. Extend - extends the transmission distance of PoE ports up to 250m at 10Mbps speed
  2. VLAN - enables port isolation, where each PoE port can transmit data only to the uplink port
  3. PD Alive - all PoE ports support the PoE Alive function, which can detect and automatically reboot disconnected or unresponsive PoE devices

Package Contents

• Device
• AC power cord
• Rubber feet
• Quick Installation Guide
