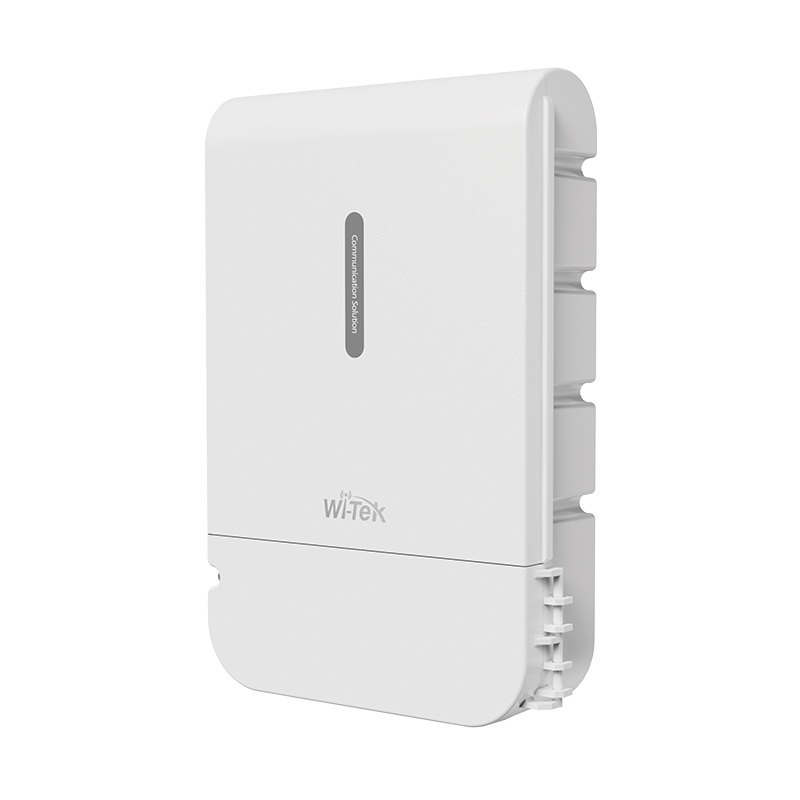

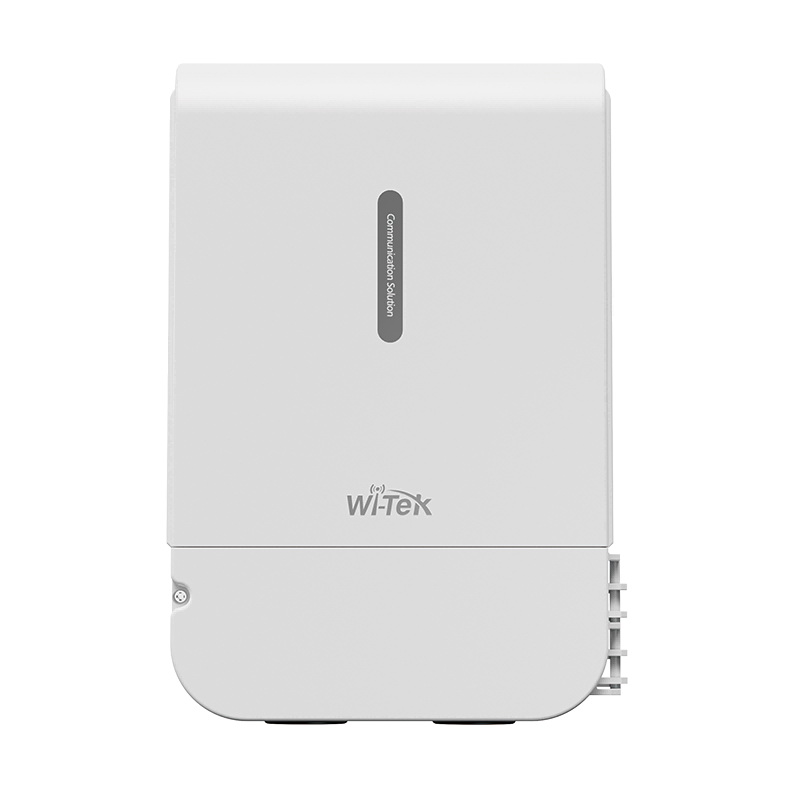

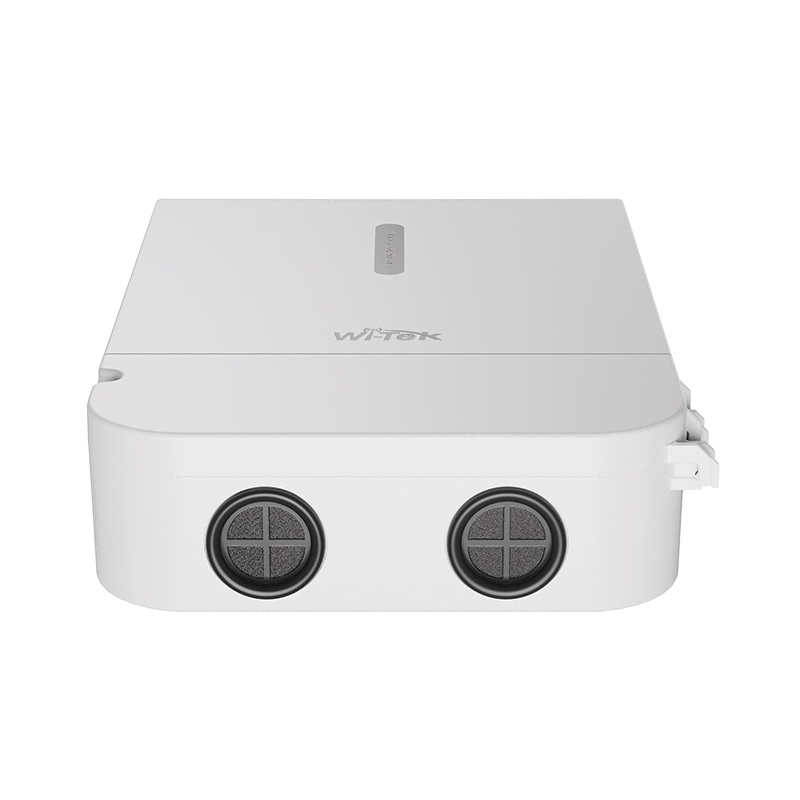

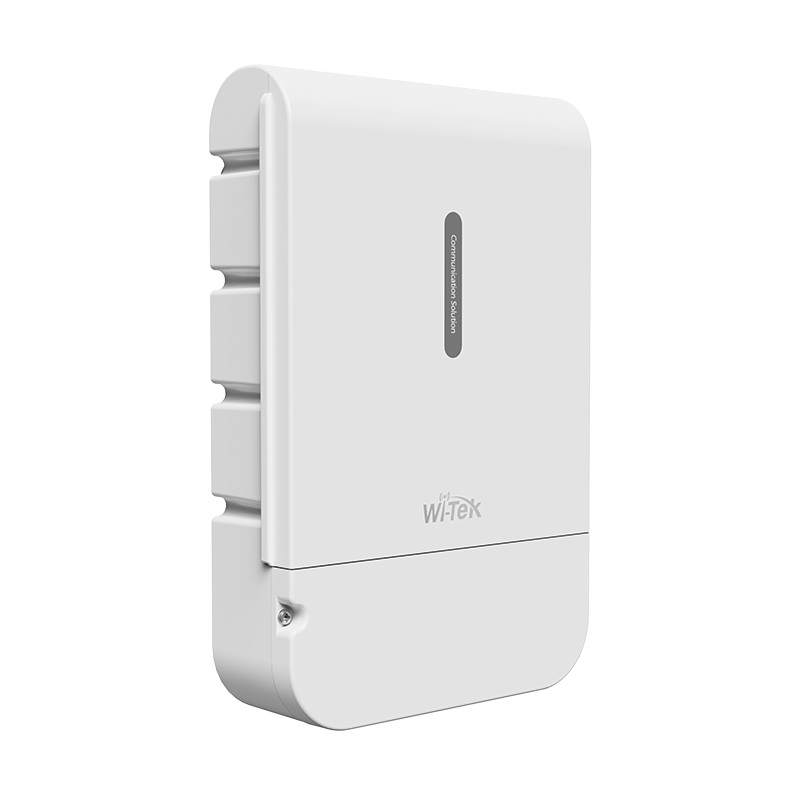

Wi-Tek WI-PCES206-O outdoor Cloud Easy Smart PoE switch, 4 x PoE

Product description

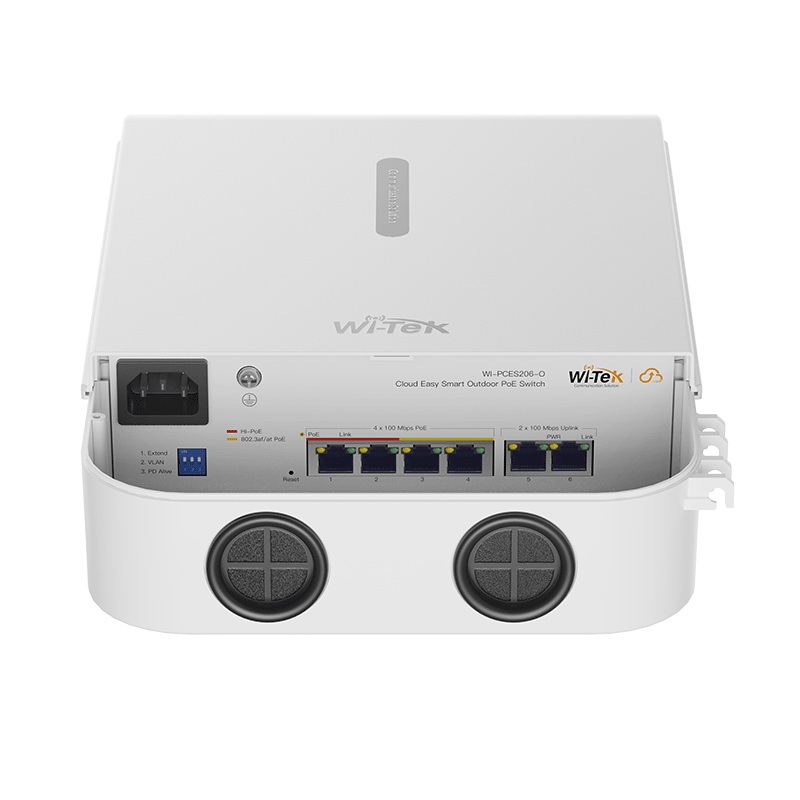

The outdoor PoE switch Wi-Tek WI-PCES206-O is equipped with (6) 10/100 Mbps ports in a configuration of (2) UP-link and (4) PoE-OUT. Two of the PoE-OUT ports can power devices with up to 45 W per port thanks to HI-POE, while the remaining two support 802.3af/at up to 30 W per port. The total PoE budget is 60 W. With its IP65 rating, the switch is designed for outdoor wall or pole installations.

Key Features

• Wi-Tek Cloud management: easy device management and monitoring via a cloud portal or mobile app allows you to manage your devices anytime and from anywhere.
• Outdoor design: IP65 rating and an operating temperature range from -30 °C to 60 °C.
• ONVIF: automatic detection of IP cameras supporting the ONVIF protocol.
• DIP switch for mode configuration:
  • 1. Extend: the transmission distance of PoE ports can reach up to 250 m with a reduced link speed of 10 Mbps.
  • 2. VLAN: port isolation – each PoE port can send data only to the up-link port.
  • 3. PD Alive: PoE watchdog that can detect and restart unresponsive devices powered via PoE.

Note: The Eweb channel tunnel can be created only when the easy smart switch is linked with the other type of Wi-Tek cloud management device, such as cloud L2, L3 management switch, gateway, wireless AP, etc.

Package Contents

• Device
• Quick Installation Guide
• Power cable
• (2) Rubber plugs

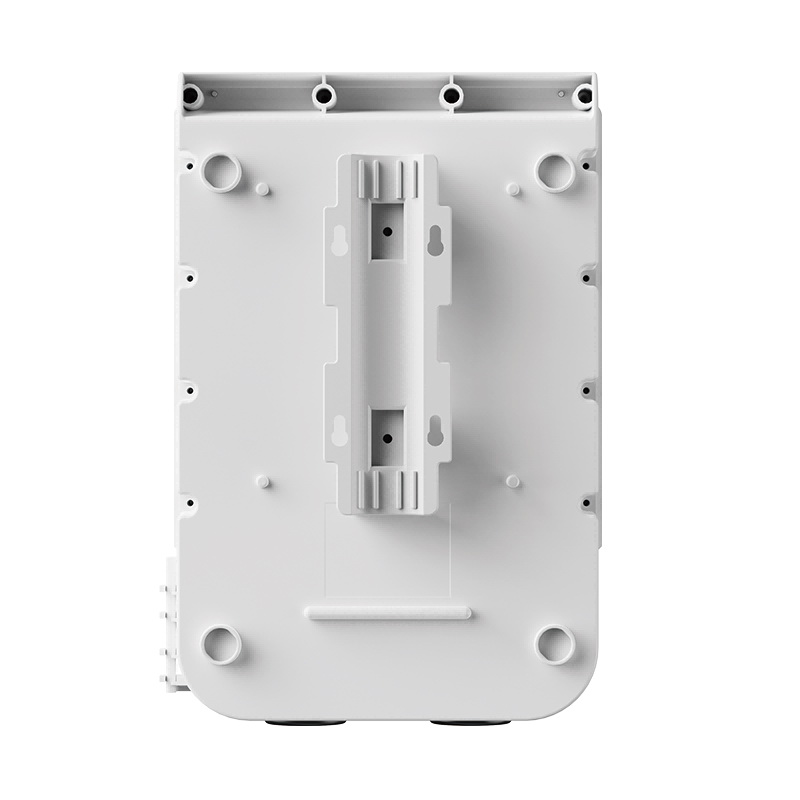

• (2) Metal mounting straps
