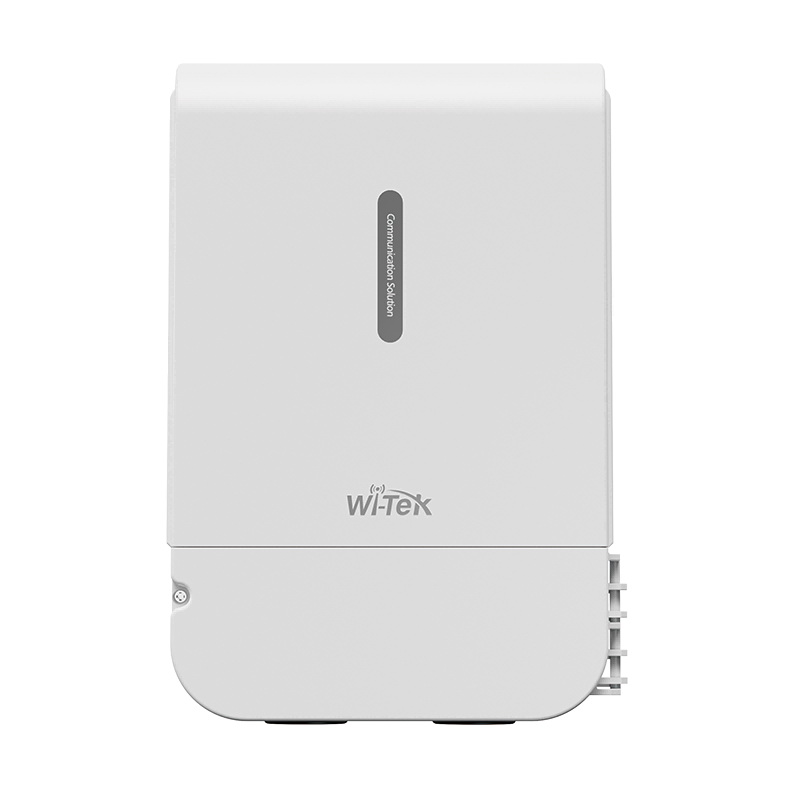

Wi-Tek WI-PCES309GF-O outdoor gigabit Cloud Easy Smart PoE switch, 8xPoE

Product description

The outdoor PoE switch Wi-Tek WI-PCES309GF-O is equipped with (9) 1Gbps ports in a configuration of (1) UP-link and (8) PoE-OUT. Two of the PoE-OUT ports support 802.3bt PoE with up to 90 W per port, while the remaining six support 802.3af/at with up to 30 W per port. The total PoE budget is 110 W. For connection to an optical network, the switch also includes (1) SFP slot. With its IP65 rating, the switch is ideal for outdoor installations on a wall or pole.

Key Features

• Wi-Tek Cloud Management: simple device management and monitoring via the cloud portal or mobile app allows you to manage devices anytime and from anywhere.
• Outdoor design: IP65 rating and operating temperature range from -30 °C to 60 °C.
• ONVIF: automatic detection of IP cameras supporting the ONVIF protocol.
• DIP switch for mode settings:
  • 1. Extend: PoE port transmission distance can reach up to 250 m by reducing the link speed to 10 Mbps.
  • 2. VLAN: port isolation – each PoE port can send data only to the up-link port.
  • 3. PD Alive: PoE watchdog that can detect and restart unresponsive PoE-powered devices.

Note: The Eweb channel tunnel can only be created when the easy smart switch is connected to another type of Wi-Tek cloud-managed device, such as a cloud L2/L3 managed switch, gateway, wireless AP, etc.

Package Contents

• Device
• Quick Installation Guide
• Power cable
• (2) Rubber plugs
• (2) Metal mounting straps
