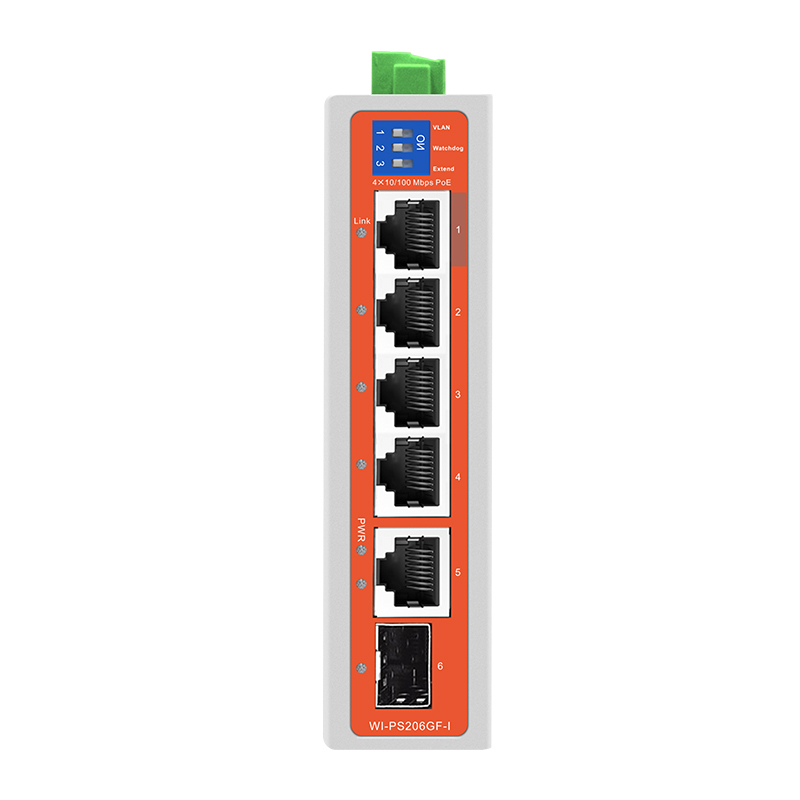

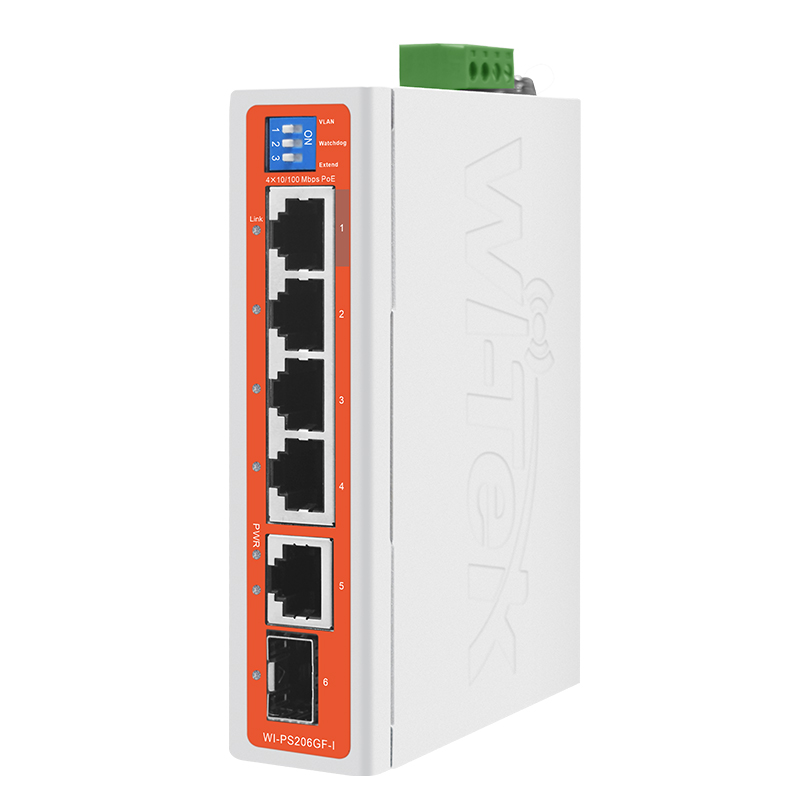

Wi-Tek WI-PS206GF-I V2 industrial PoE switch, 4x PoE

Product description

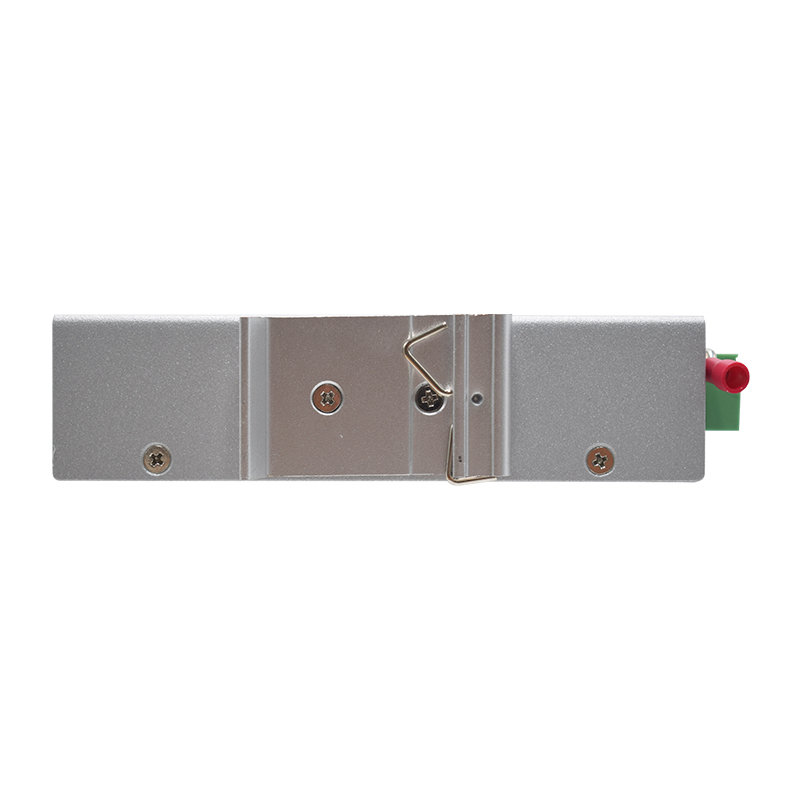

The Wi-Tek WI-PS206GF-I V2 is an industrial unmanaged PoE switch featuring a combination of (1) 1Gbps Ethernet uplink port and (4) 100Mbps PoE-OUT Ethernet ports. The first port supports PoE-OUT 802.3af/at/bt with a maximum output of up to 90 W per port, while the remaining three PoE-OUT ports support 802.3af/at up to 30 W per port. The total PoE budget is 55 W with the included power adapter, and it can be expanded up to 170 W by connecting a suitable industrial power supply. For fiber connectivity, the switch is equipped with (1) SFP port. The switch can be installed on a desktop, wall, or DIN rail. Power is supplied via a terminal block 48–57 V DC, and the switch supports the connection of two independent power sources for redundant power input.

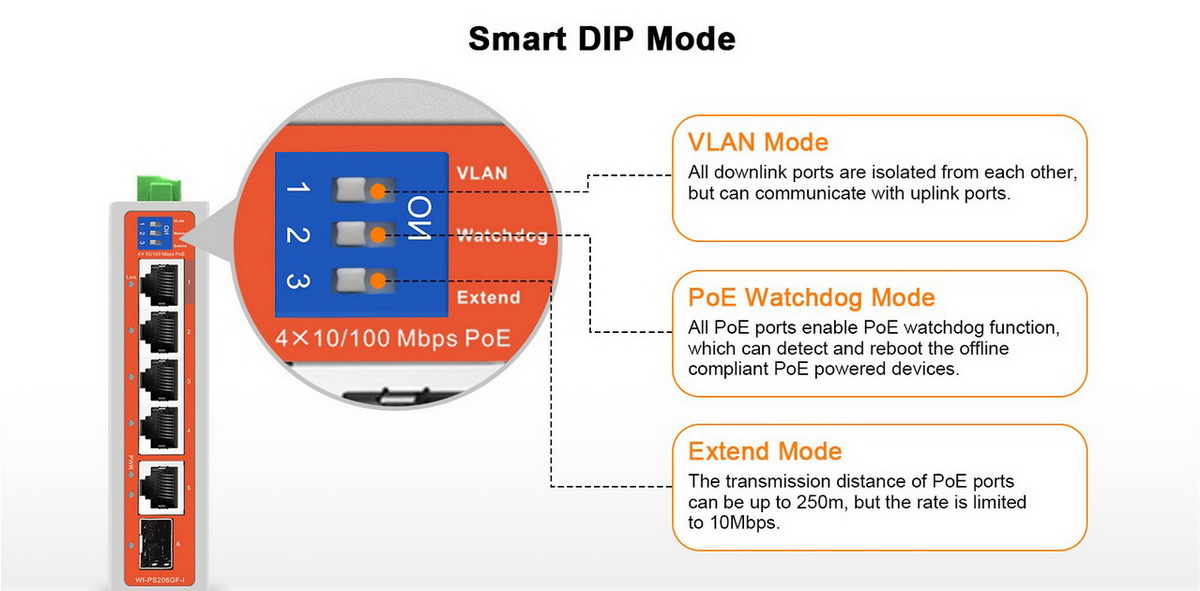

DIP Switch for Mode Selection

The DIP switch on the front panel allows you to select operating modes according to the needs of your network:

• 1. VLAN: Port isolation – PoE ports can transmit data only to the uplink port.
• 2. Watchdog: PoE watchdog that can detect and restart unresponsive PoE-powered devices.
• 3. Extend: The transmission distance of PoE ports can reach up to 250 m by reducing the link speed to 10 Mbps.

Package Contents

• Device
• 52V/1.25A Power Adapter
• Wall-Mounting Accessories
• Quick Installation Guide
