Wi-Tek WI-PS306GF-UPS V4 Solar Gbit PoE Switch

Product description

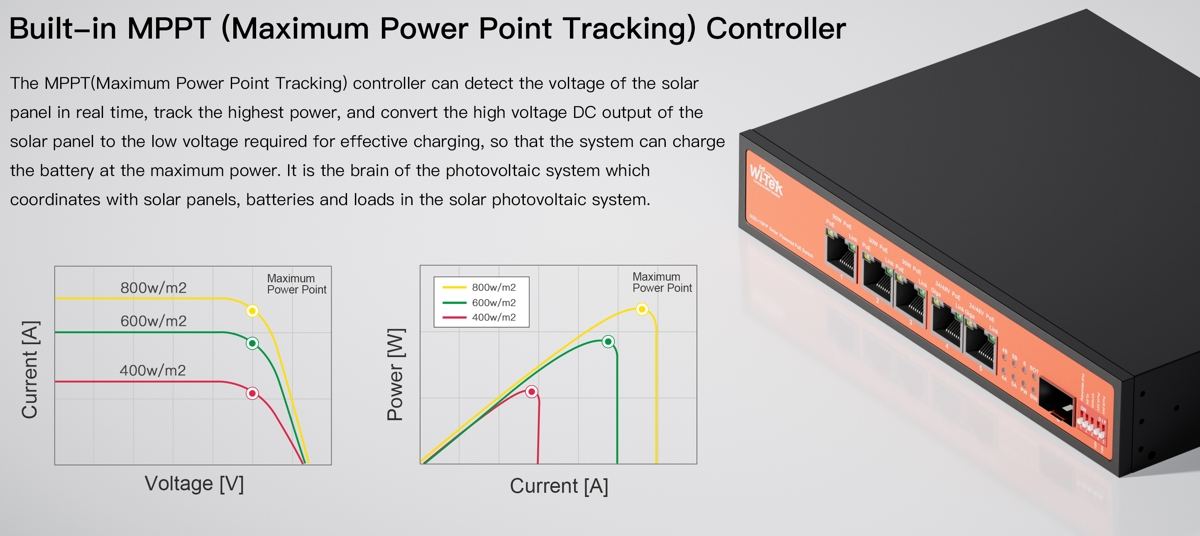

Wi-Tek WI-PS306GF-UPS V4 is a solar powered Gigabit PoE switch with UPS functionality featuring a switching capacity of 12 Gbps, (5) Gbit PoE ports and (1) SFP slot. The integrated MPPT controller optimizes solar panel performance by monitoring voltage in real time and ensuring efficient battery charging. It manages power flow between solar panels, the battery, and connected loads, allowing the system to operate on solar energy during the day and on battery power at night. The switch consumes <5W (without PoE load).

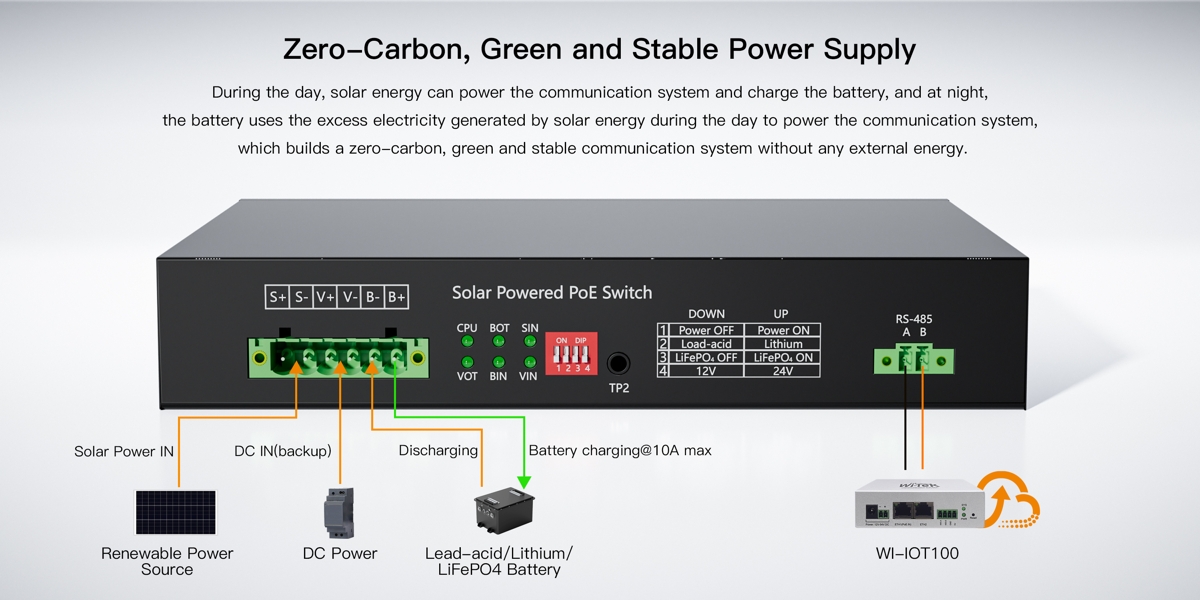

The switch supports both solar and DC power, making it suitable for hybrid or backup systems (solar + mains power). However, the solar input cannot power the switch independently without a connected battery. The maximum charging current is 10A.

Key features

• (5) Gbit PoE ports and (1) SFP slot

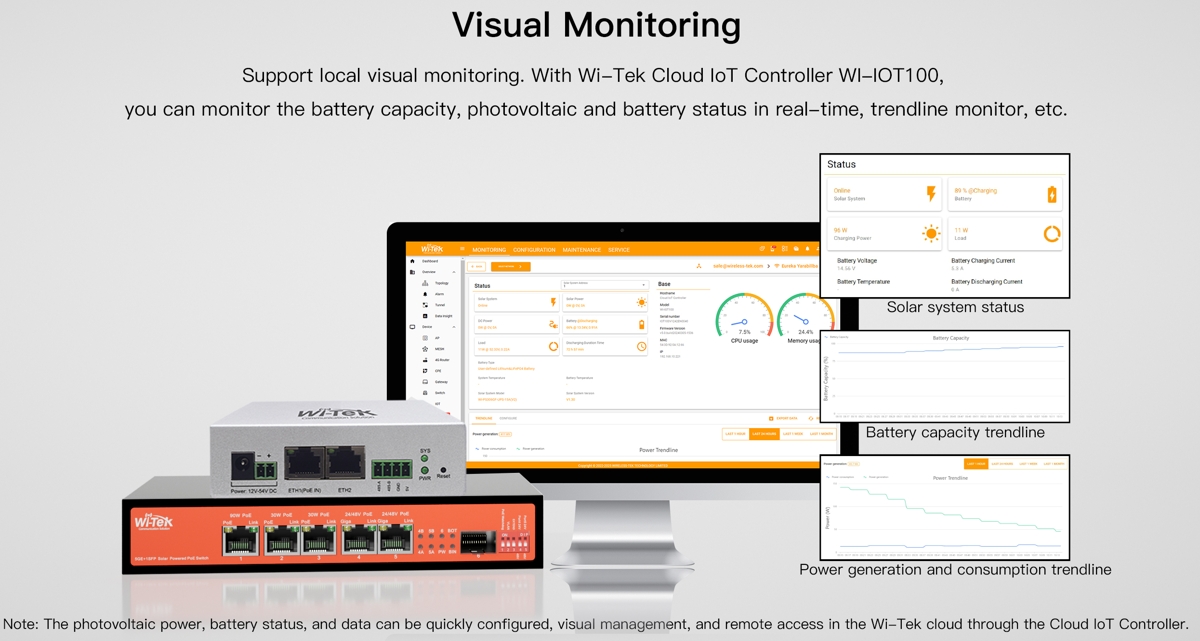

• Cloud management via Wi-Tek Cloud - provides efficient, simple, and secure remote device management *(requires connection through the WI-IOT100 cloud controller)

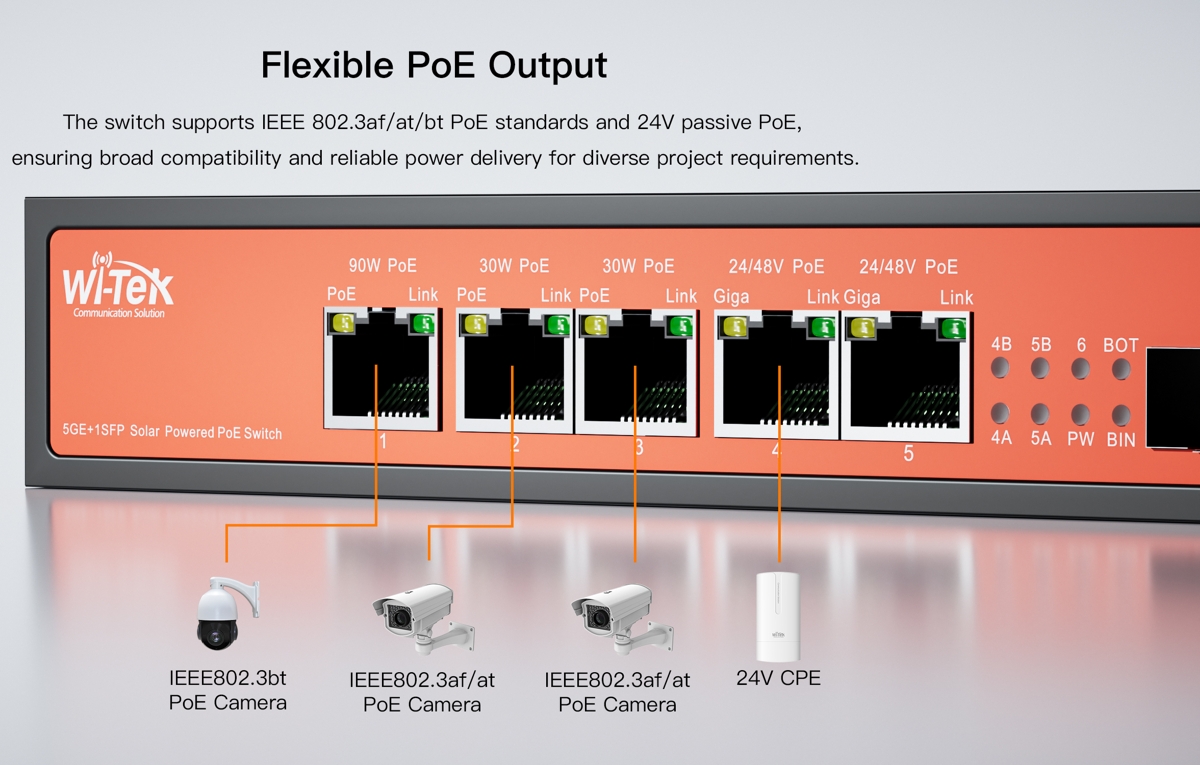

• PoE with a total budget of 120W
  • Port 1 supports PoE++ 802.3bt with power output of up to 90W
  • Ports 2-3 support PoE+ 802.3af/at with power output of up to 30W/port
  • Ports 4-5 support PoE+ 802.3af/at with power output of up to 30W/port or 24V passive PoE (24W/port)

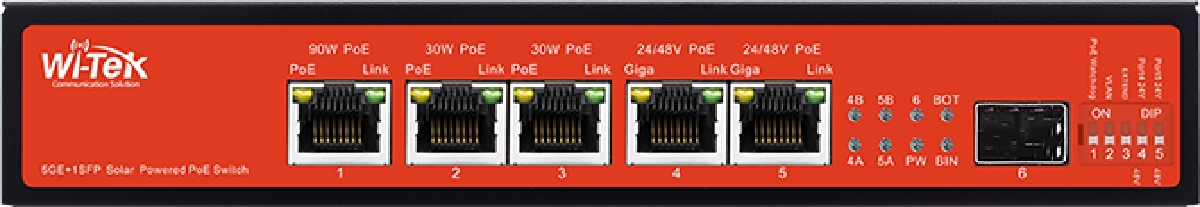

• The front DIP switch controls the following modes:
  1. PoE Watchdog - automatically restarts inactive PoE devices
  2. VLAN - enables port isolation, where each PoE port can transmit data only to the uplink port
  3. Extend - extends the transmission distance of PoE ports up to 250m at 10Mbps speed
  4. Port4 24V - switches between 24V passive PoE and PoE+ on port 4
  5. Port5 24V - switches between 24V passive PoE and PoE+ on port 5

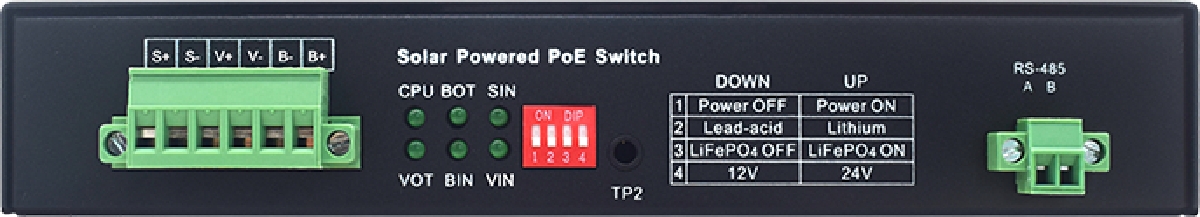

• The rear DIP switch sets the battery type (see table in the quick installation guide)

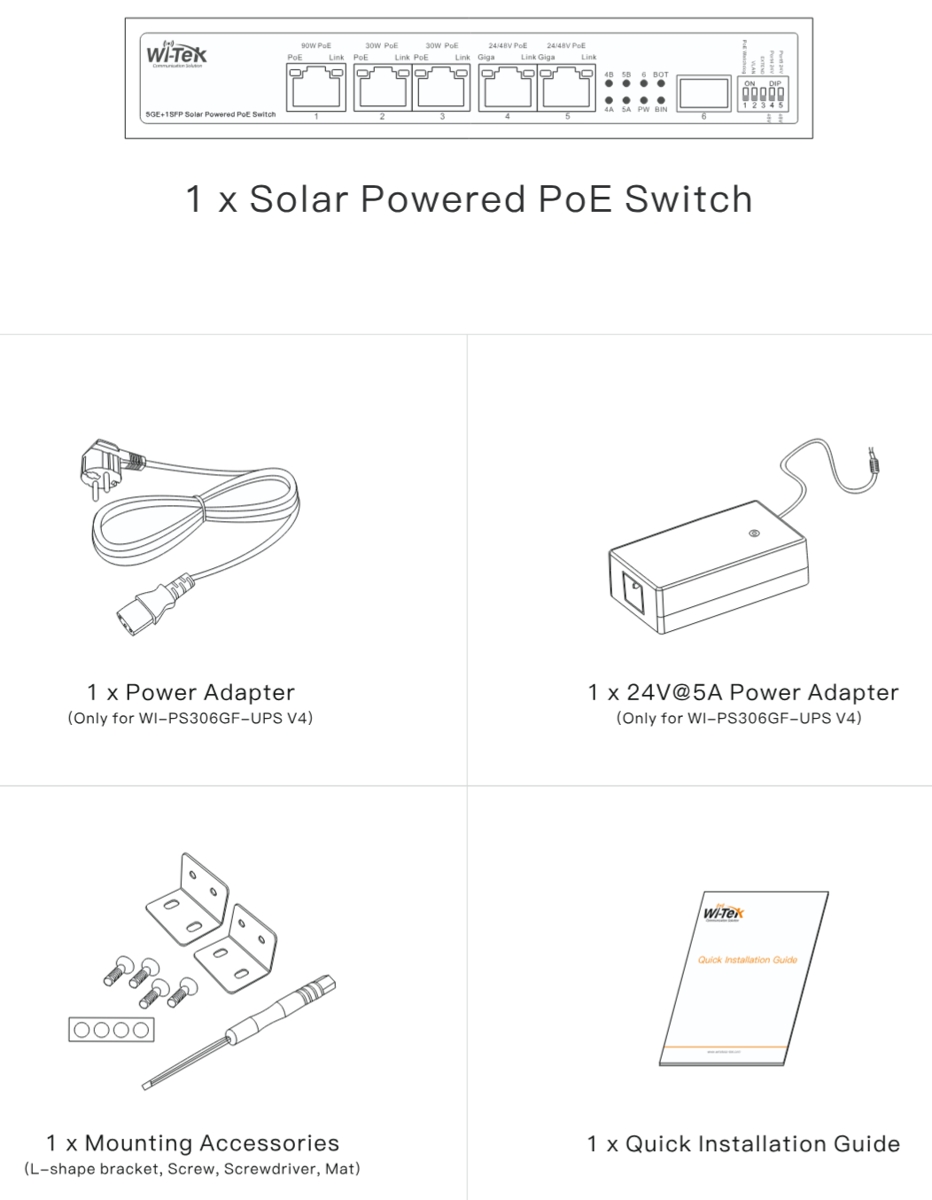

Package contents

• Device
• 24VDC/5A power adapter and power cable
• Mounting kit
• Quick Installation Guide
