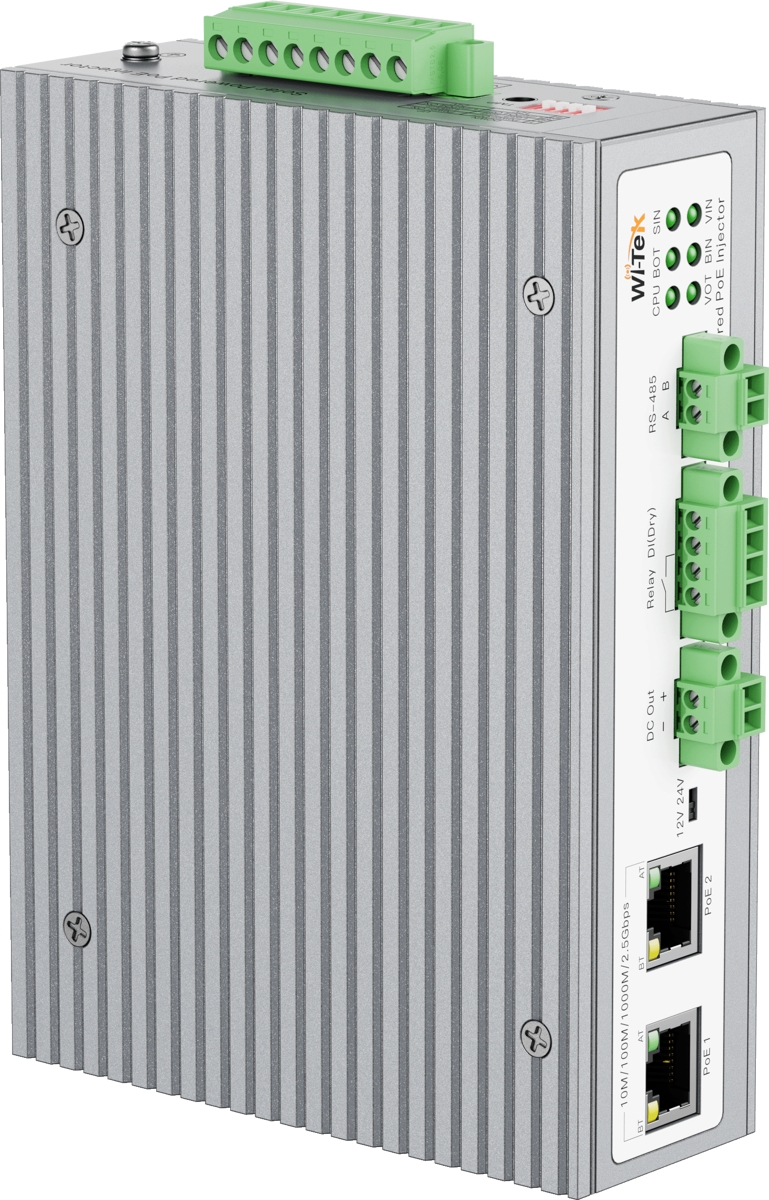

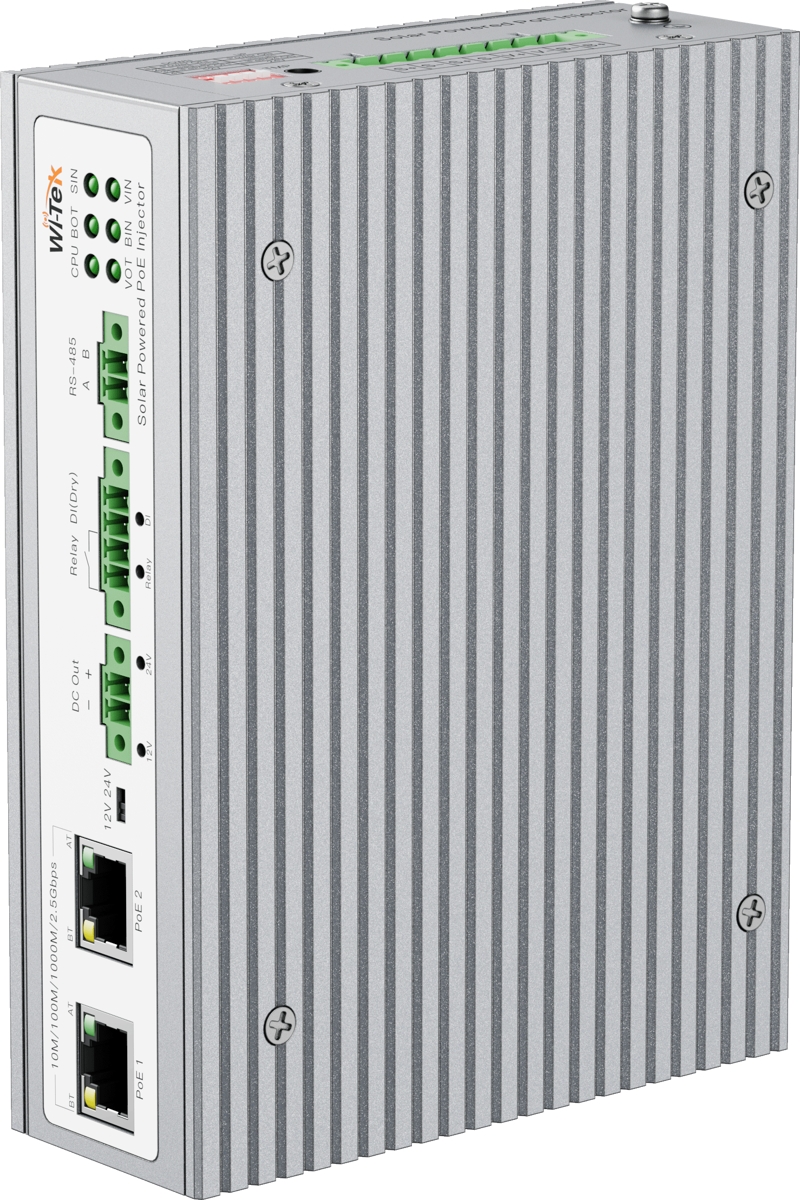

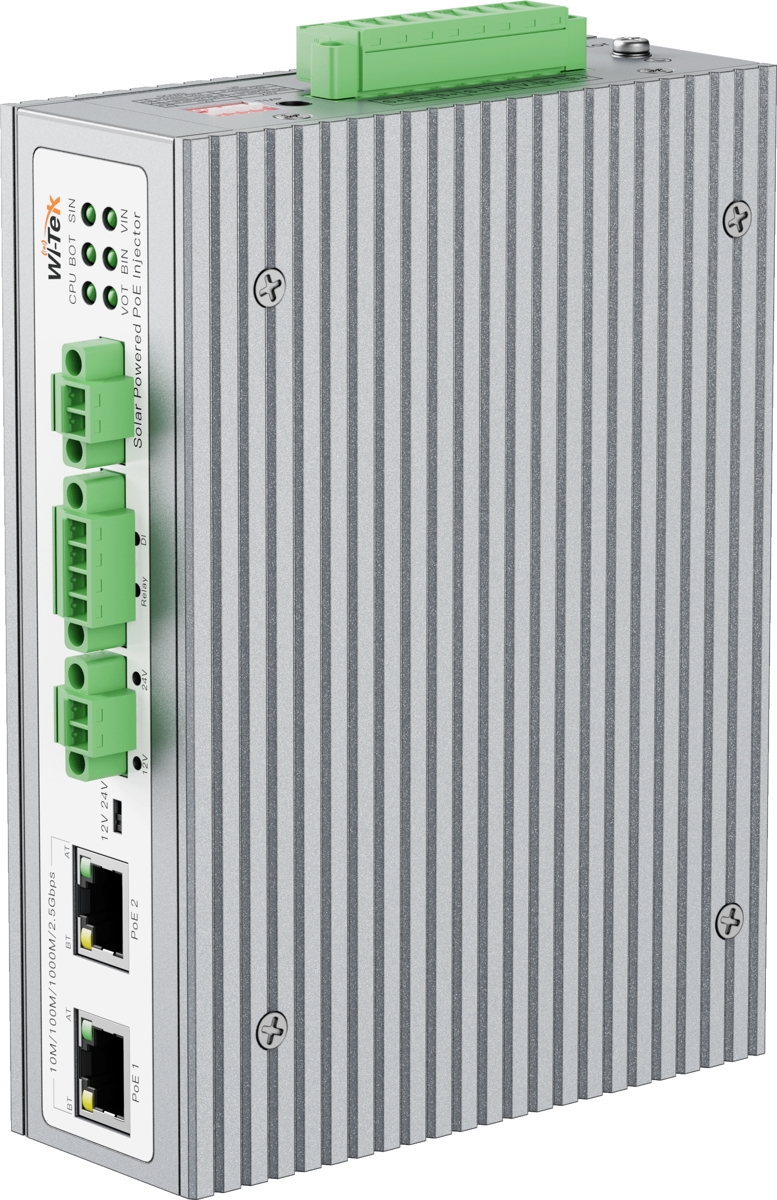

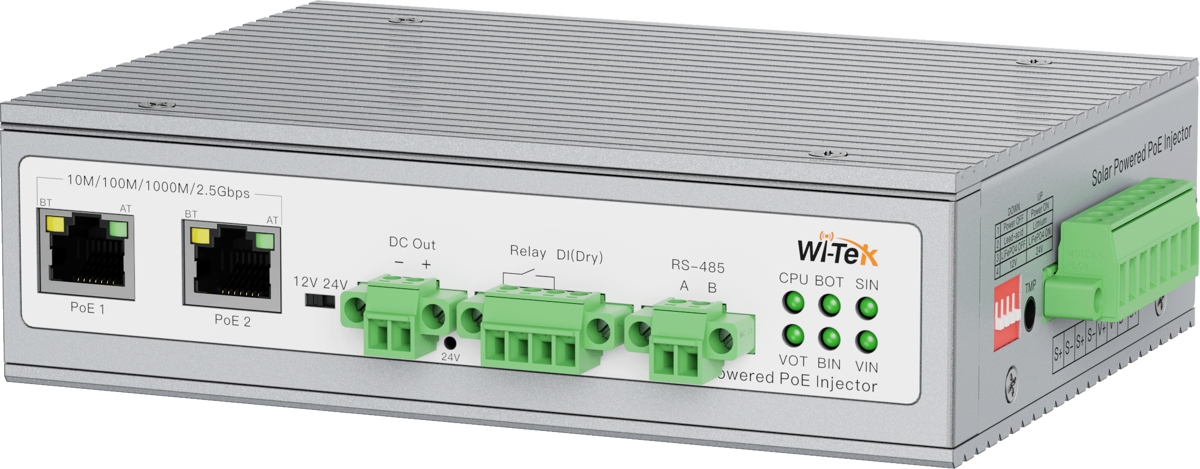

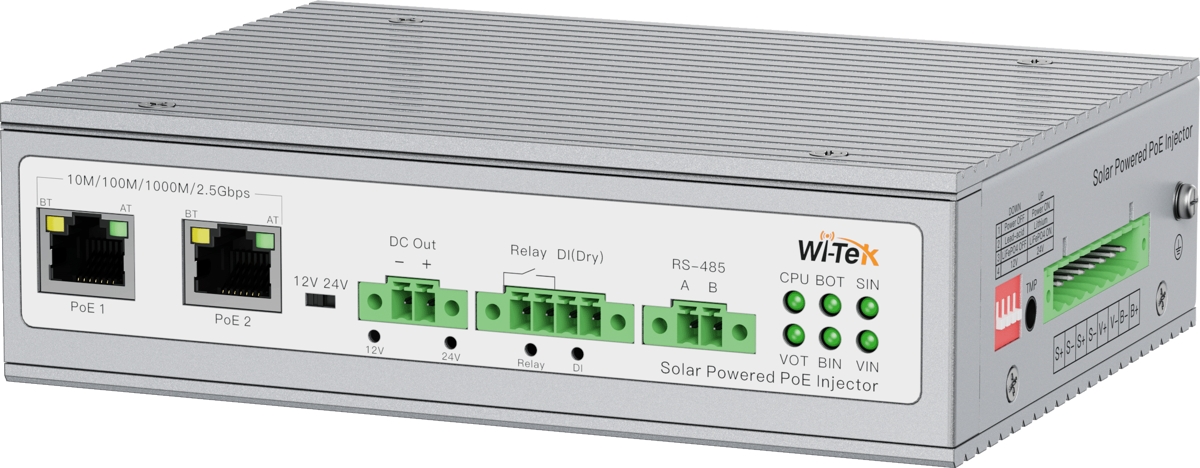

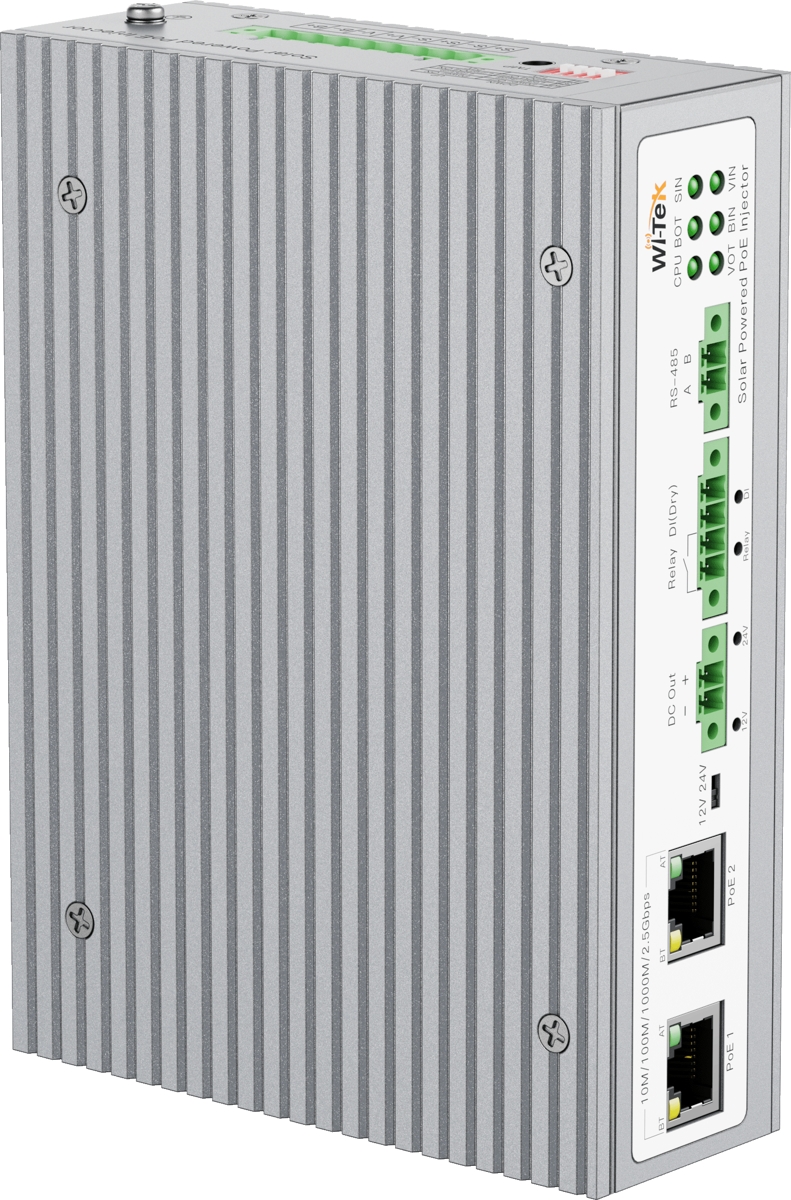

Wi-Tek WI-PS402-UPS-I Solar 2.5G PoE Injector

Product description

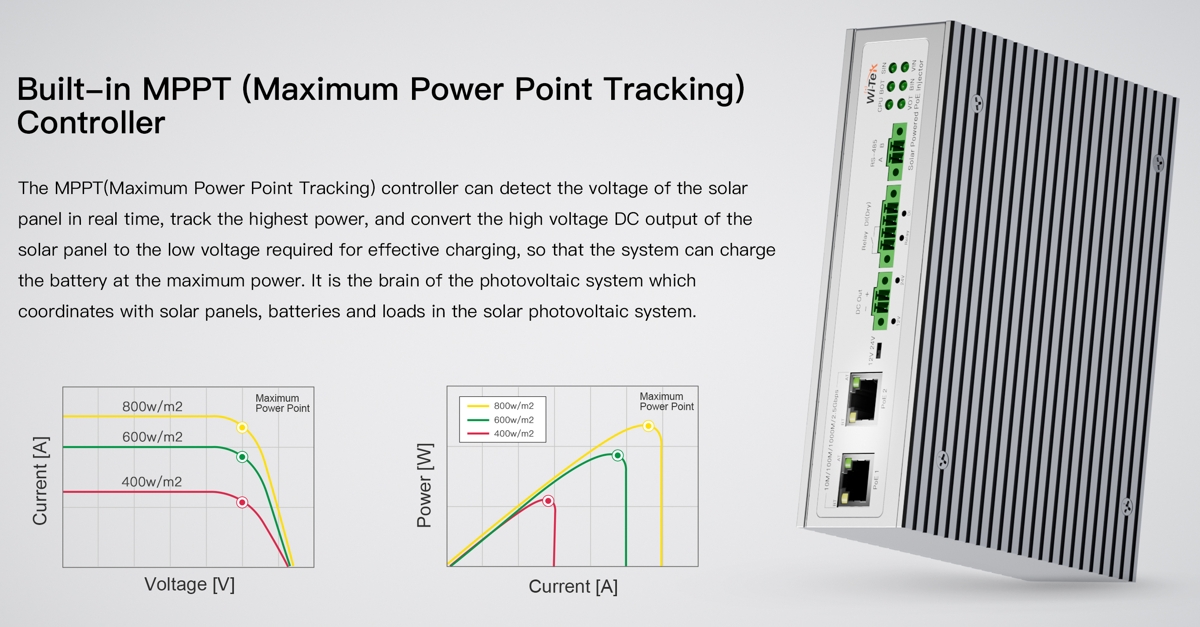

Wi-Tek WI-PS402-UPS-I is a solar powered PoE injector with UPS functionality featuring (2) 2.5G PoE++ ports. The integrated MPPT controller optimizes solar panel performance by monitoring voltage in real time and ensuring efficient battery charging. It manages power flow between solar panels, the battery, and connected loads, allowing the system to operate on solar energy during the day and on battery power at night. The switch consumes <5W (without PoE load and DC output).

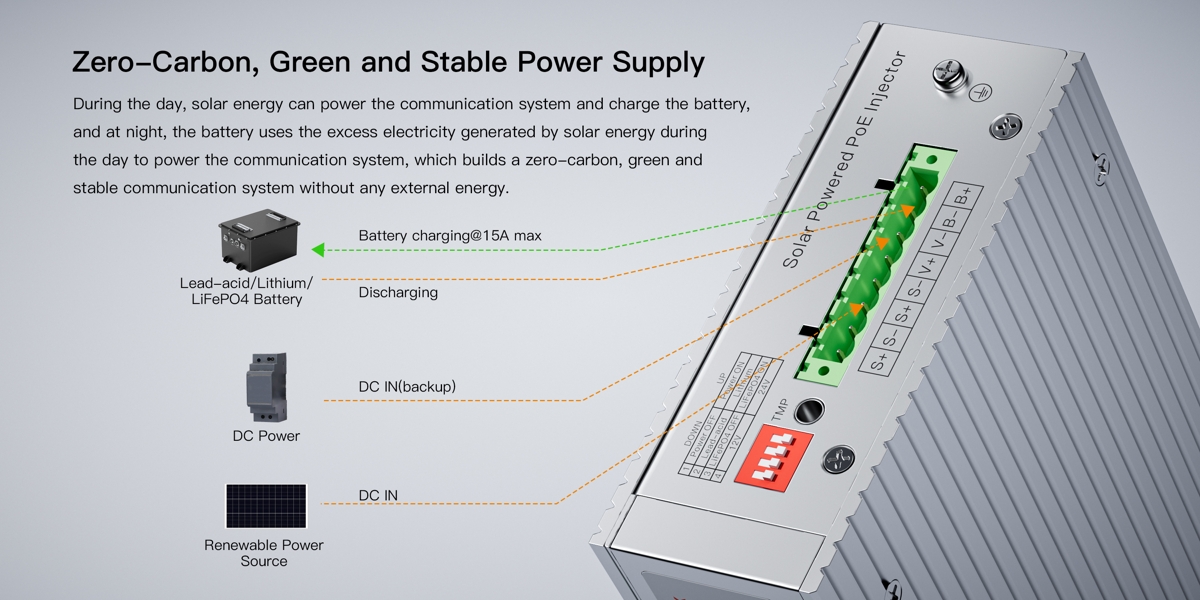

The injector supports both solar and DC power, making it suitable for hybrid or backup systems (solar + mains power). However, the solar input cannot power the injector independently without a connected battery. The maximum charging current is 15A.

Key features

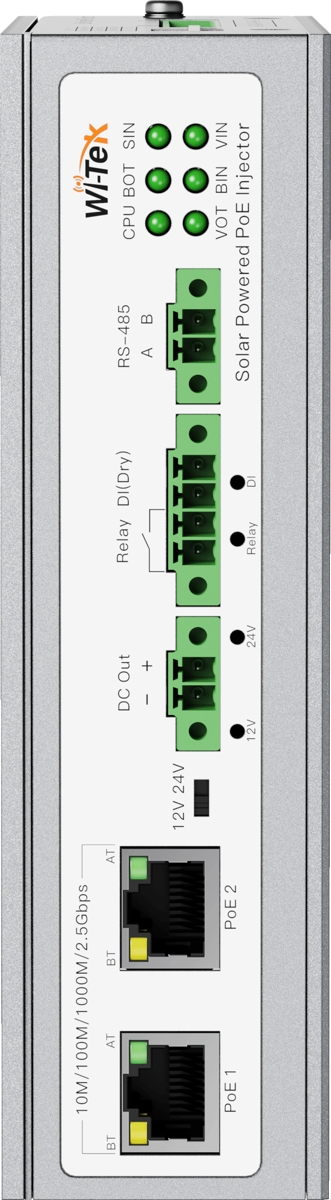

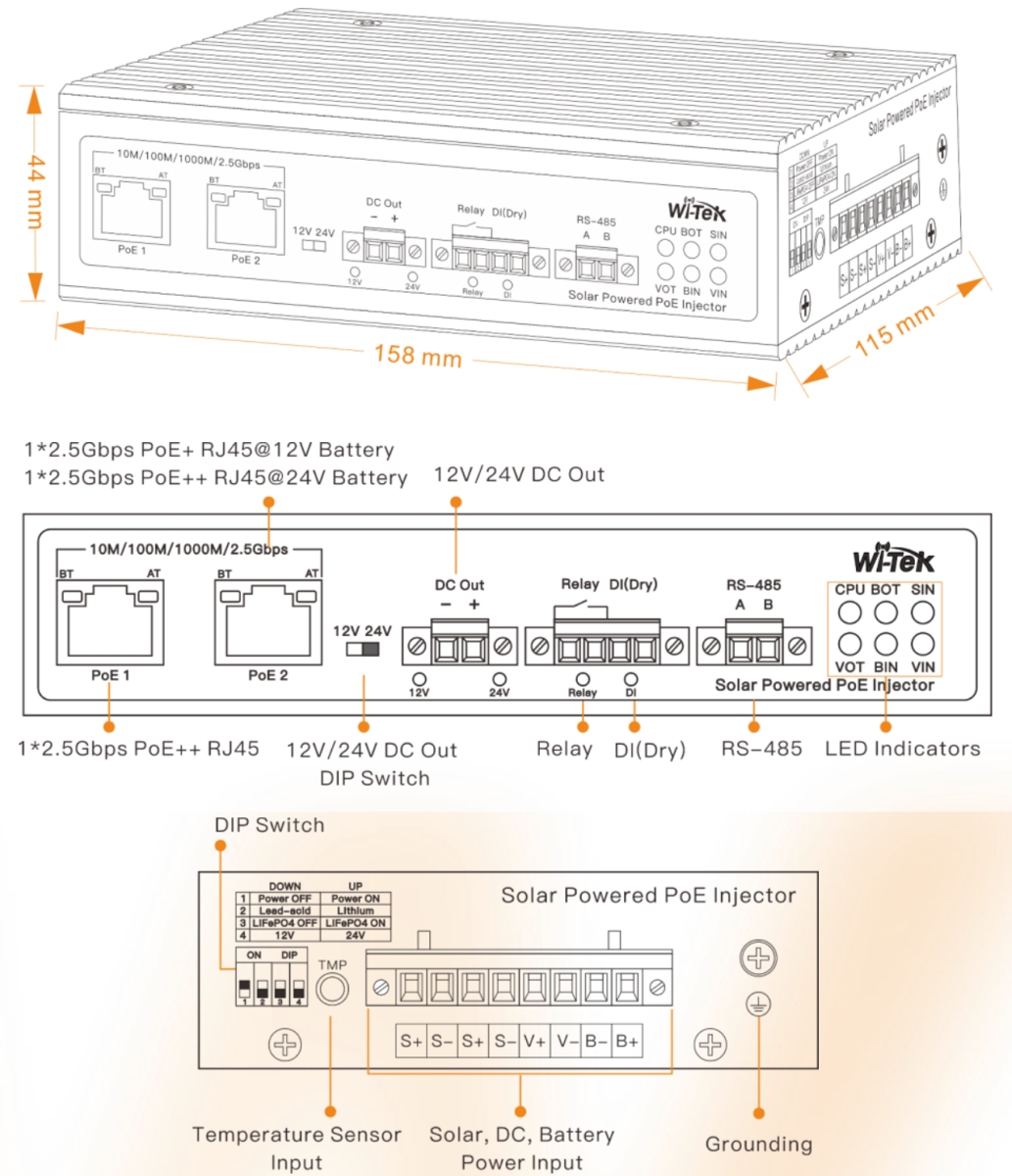

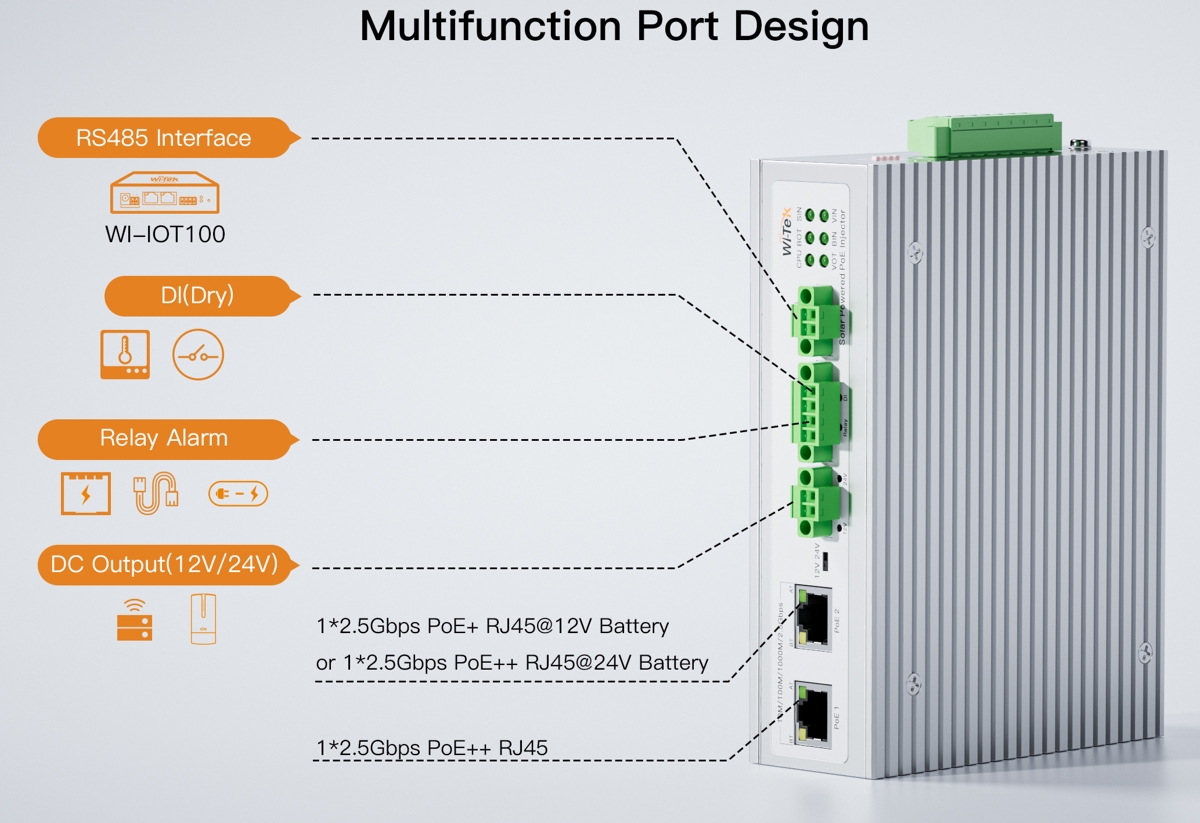

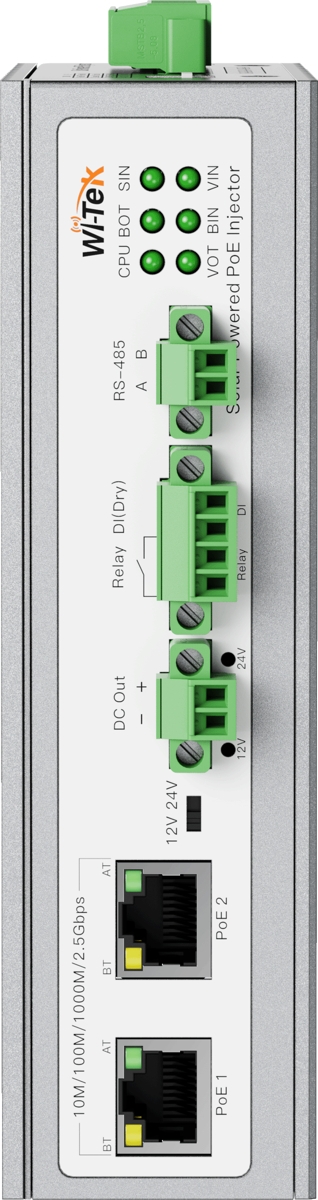

• (2) 2.5G PoE++ ports
• Cloud management via Wi-Tek Cloud - provides efficient, simple, and secure remote device management *(requires connection through the WI-IOT100 cloud controller)
• Configurable relay output for remote switching

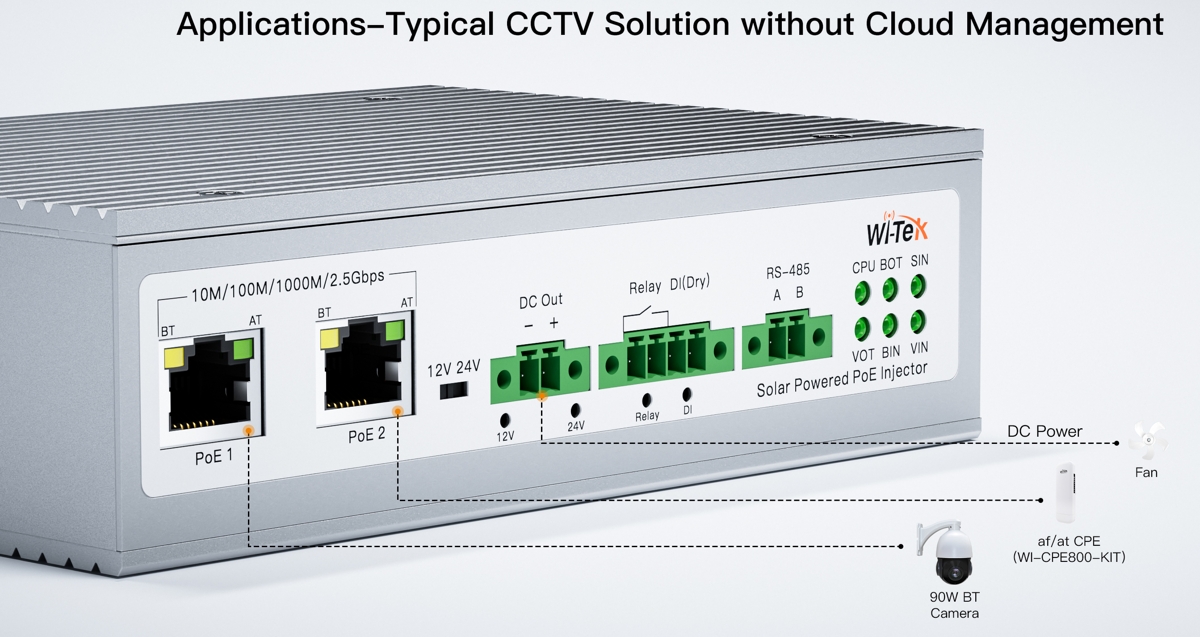

• 12/24 VDC output for external power supply
• Digital input (DI dry contact) for passive status detection

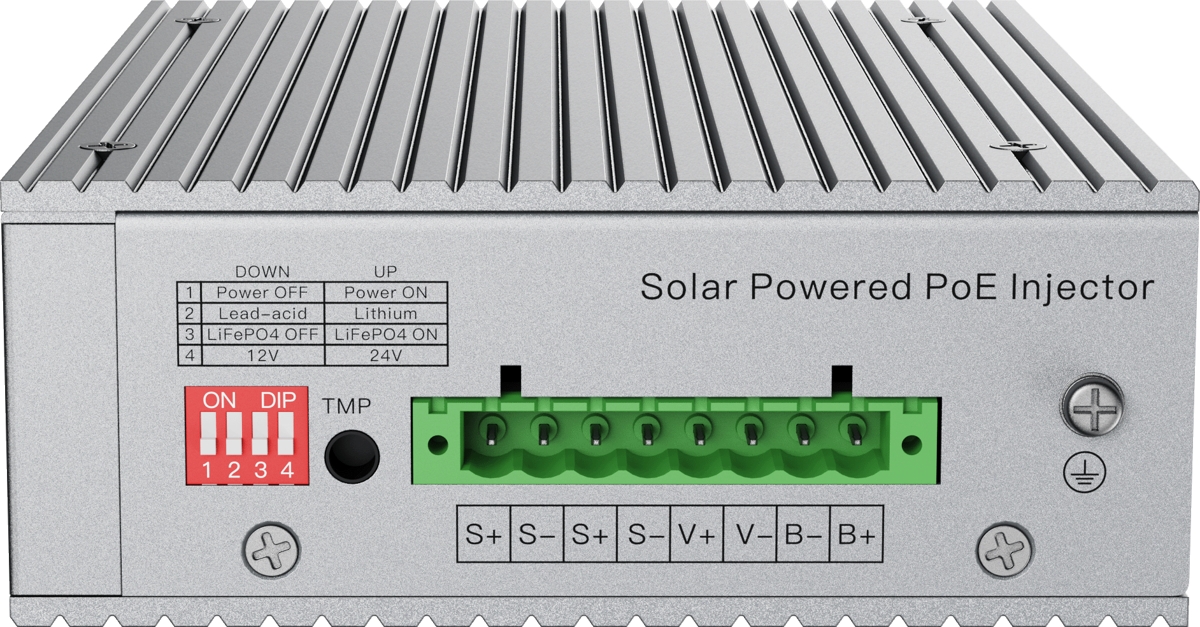

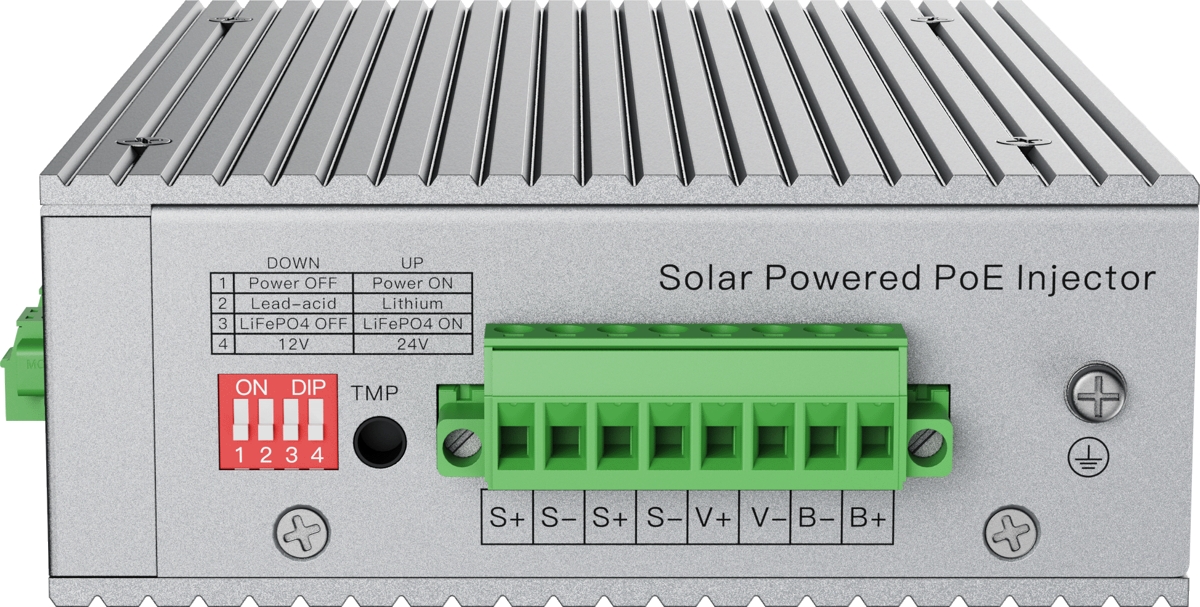

• Side DIP switch sets the battery type (see table in the quick installation guide)

Package contents

• Device
• Screwdriver
• Quick Installation Guide
