Mimosa C6x - Bazar
Your price excl. VAT
158.39 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 158.46 EUR |
| Your price incl. VAT (21%) | 191.74 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Mimosa |
|
|---|---|---|
| Code | B10160101-1 | |
| Part No. | B1-100-00111(C6x) | |
| Warranty | 12 months | |
You have a choice of 3 variantscompare all
100-00127(X2C Adapter/M)
31.88 EUR excl. VAT
38.82 EUR incl. VAT
Expected 20.12.2025
100-00092(FlexiMount XL)
11.11 EUR excl. VAT
13.44 EUR incl. VAT
Expected 14.7.2025
100-00086(N5-X12)
16.26 EUR excl. VAT
19.92 EUR incl. VAT
Expected 20.12.2025
100-00088(N5-X20)
75.24 EUR excl. VAT
91.28 EUR incl. VAT
Not in stock
100-00089(N5-X25)
100.75 EUR excl. VAT
122.15 EUR incl. VAT
Expected 14.7.2025
100-00087(N5-X16)
27.74 EUR excl. VAT
33.81 EUR incl. VAT
Expected 14.7.2025
B-100-00089(N5-X25)
84.32 EUR excl. VAT
102.27 EUR incl. VAT
In Stock
100-00090(N5-X20)
292.07 EUR excl. VAT
353.65 EUR incl. VAT
Not in stock
B-100-00113(A6)
1 593.59 EUR excl. VAT
1 928.33 EUR incl. VAT
In Stock
100-00124(N5-X30)
421.01 EUR excl. VAT
509.66 EUR incl. VAT
Expected 14.7.2025
TPA-AMU-V2
12.82 EUR excl. VAT
15.58 EUR incl. VAT
In Stock
100-00127(X2C Adapter/M)
31.88 EUR excl. VAT
38.82 EUR incl. VAT
Expected 20.12.2025
B-100-00087(N5-X16)
22.06 EUR excl. VAT
26.93 EUR incl. VAT
In Stock
B1-100-00113(A6)
1 420.40 EUR excl. VAT
1 718.77 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.73 EUR excl. VAT
4.51 EUR incl. VAT
In Stock
Parameters
Download
Video
GPSR
Technical parameters
Wireless features
Wireless frequency:
5 GHz
WiFi standards:
Mimosa SRS, WiFi Interop
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
2402
Tx power 5GHz [dBm]:
27
Security:
128bit AES
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Internal antennas:
4
Antenna gain [dBi]:
8
Connectors and Interfaces
RF connectors:
Twist-on port (Mimosa)
LAN speed:
(1) 10/100/1000Mbps
Gigabit LAN:
Yes
Power
Power over Ethernet:
24V DC
PoE type:
PoE-In (only)
Max. power consumption [W]:
20
Physical characteristics
Protection class:
IP67
Purpose:
Outdoor
Operating temperature [°C]:
-40 up to 55
Weight [g]:
700
Width [mm]:
113
Height [mm]:
178
Depth [mm]:
67
Software
Operating mode:
Client, Bridge
IPv6 support:
Yes
Video
Product description

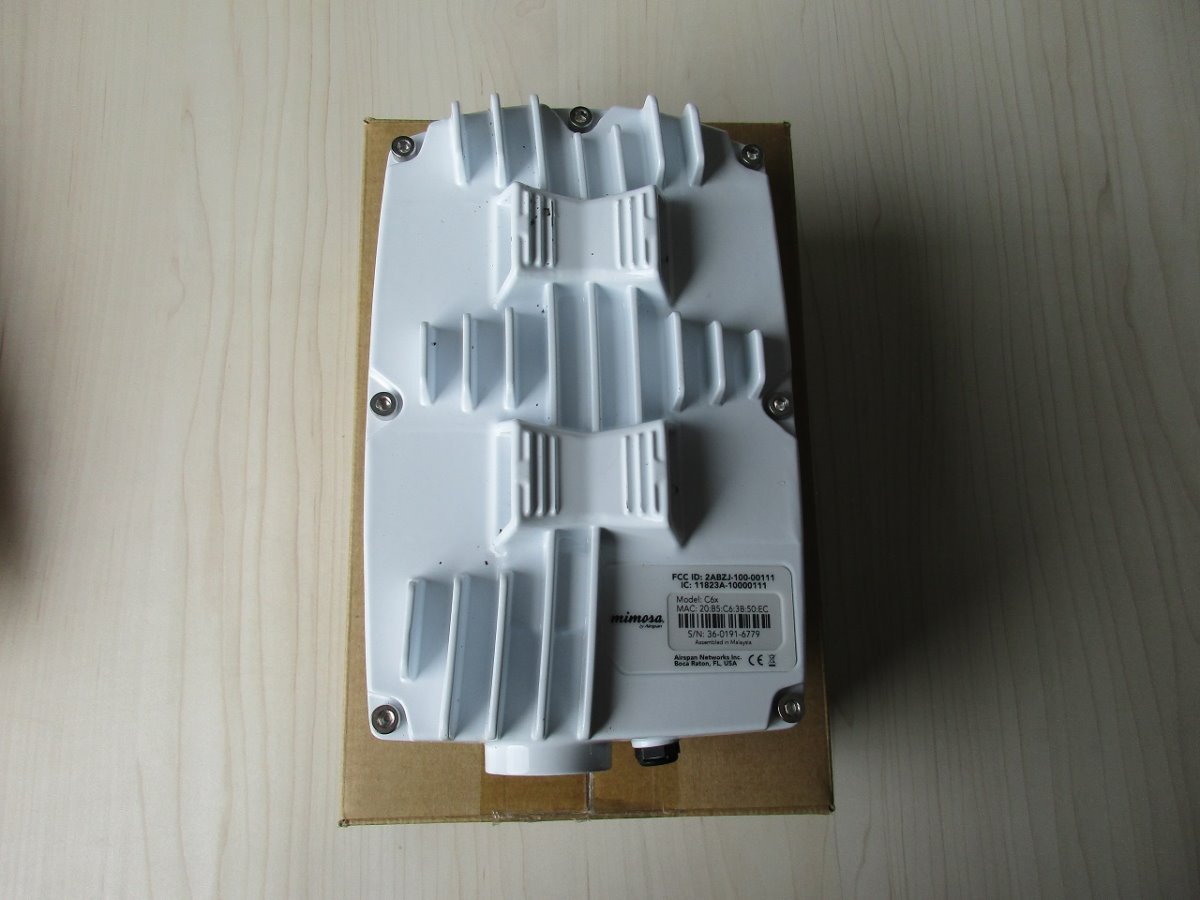

The product is fully functional and used at the exhibition. It may not contain complete accessories or original packaging.
The product was used for outdoor testing (14 days). So there are visible signs of assembly.

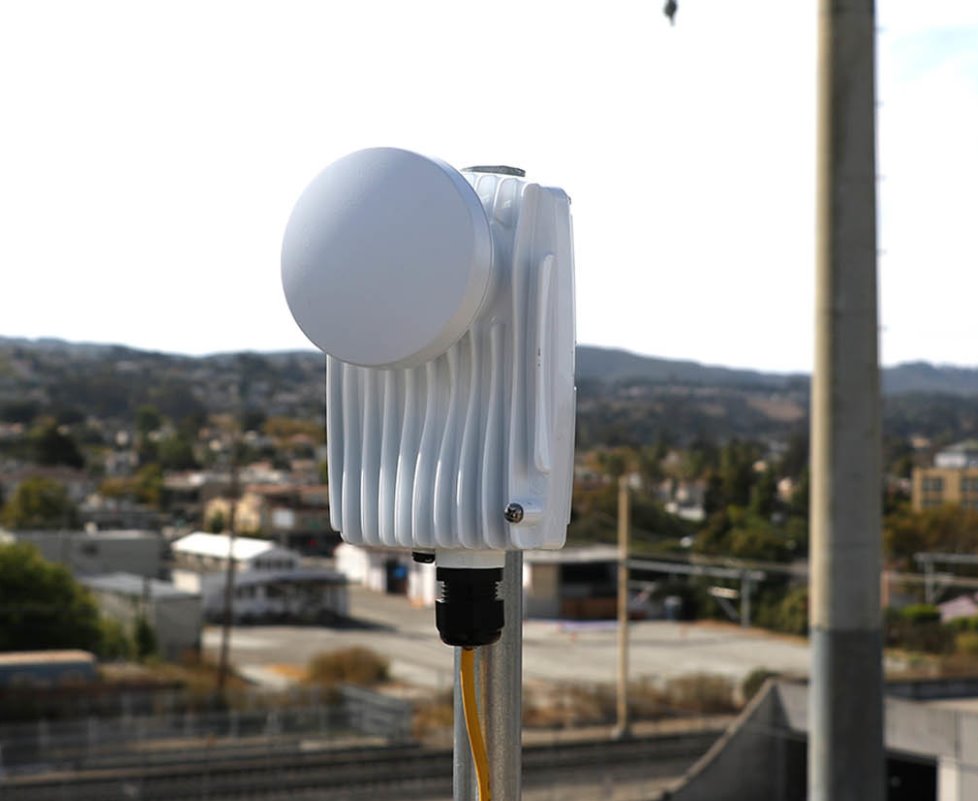

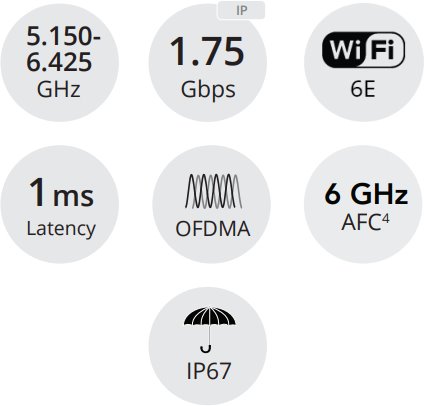

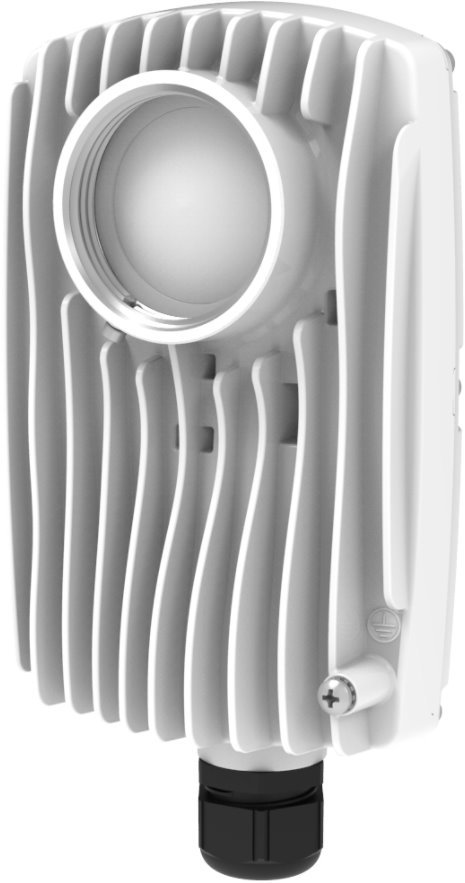

Mimosa C6x is an outdoor client and PtP (starting with FW 3.3.1) unit in a robust chassis with high resistance to ambient interference, IP67 protection with integrated antenna with gain 8 dBi, the possibility of mounting a directional antenna from a wide range (12 to 25 dBi), support Wi-Fi 6E OFDMA technology (built on 802.11ax), including older Wi-Fi5/6 standards. The unit has a 2×2 MIMO radio part with a modulation speed of 2402 Mbps at 160 MHz and is able to operate in the frequency band 5150 to 6425 MHz. For network connection, the C6x unit has one Gigabit Ethernet with passive PoE support 24 V.
The long-awaited firmware for the C6x unit is here!
Version 3.3.1 now allows using the units in PtP mode, and based on operational testing, speeds of up to 1.9Gbps can be achieved! *
You can download FW 3.3.1 from our website. You will always find the latest FW version on the Mimosa website.
* Achievable speeds depend on the level of interference from nearby networks and local regulatory conditions. The link was tested in real operation by Reliance Jio (an Indian telecom operator), achieving a speed of 1.92Gbps over a distance of 300m and a speed of 1.2Gbps over a distance of 5km.
Key Features

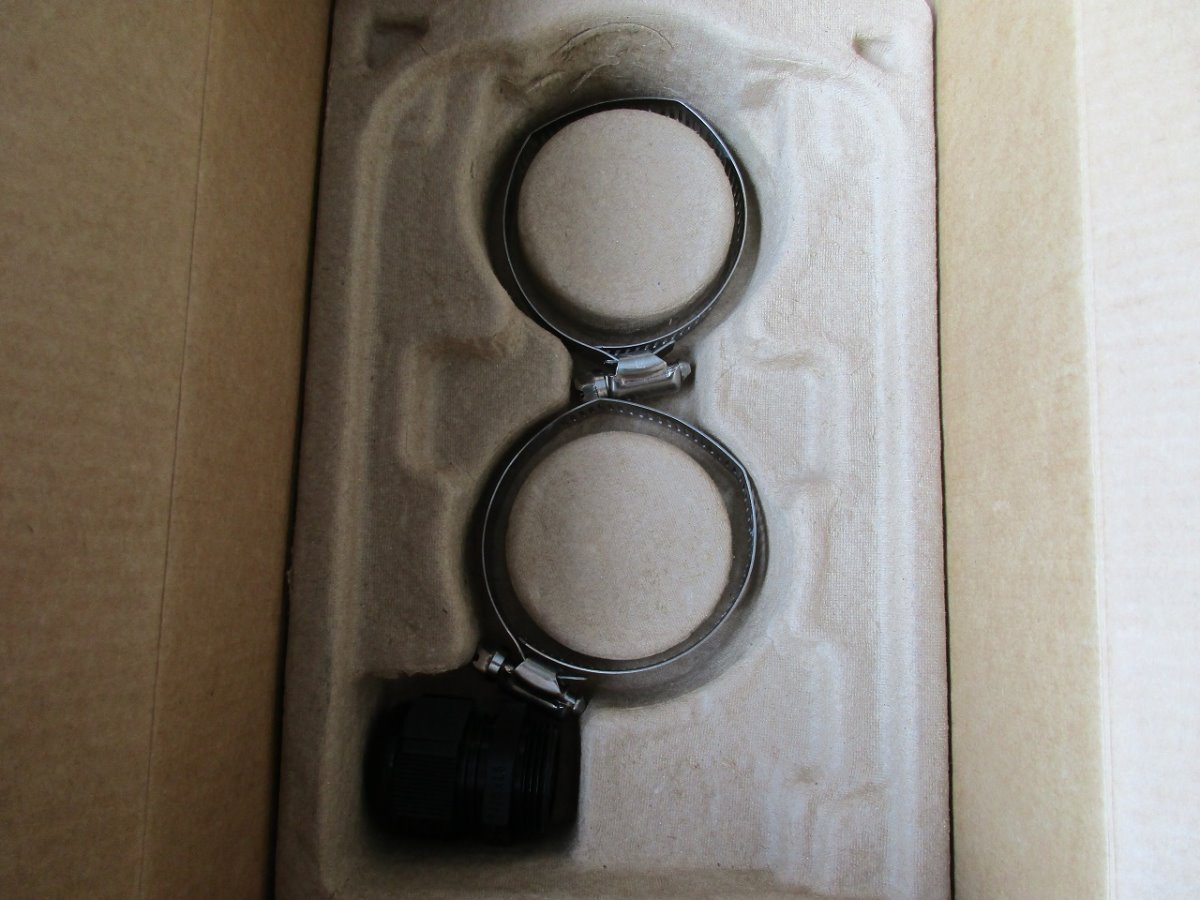

Package Contents
Download
Datasheet Firmware 3.3.1 (PTP support)GPSR
