Teltonika ATRM50 5G Router for Transportation, M12 connectors
Your price excl. VAT
759.91 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 759.98 EUR |
| Your price incl. VAT (21%) | 919.58 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Teltonika |
|
|---|---|---|
| Code | 17720187 | |
| Part No. | ATRM50100000 | |
| Warranty | 24 months | |
PR1KC640
96.77 EUR excl. VAT
117.18 EUR incl. VAT
Expected 11.8.2025
PR1KS536
8.70 EUR excl. VAT
10.61 EUR incl. VAT
In Stock
PR14RD35
5.53 EUR excl. VAT
6.93 EUR incl. VAT
In Stock
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.74 EUR excl. VAT
4.53 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Number of USB ports:
1
Wireless features
Wireless frequency:
2.4 + 5 GHz (dual band), LTE, 3G (GSM), 4G (GSM), 5G (GSM)
WiFi standards:
802.11n, 802.11ac, 802.11b/g, 802.11ac - wave2
MU-MIMO:
Yes
Transmission speed - 5GHz [Mb/s]:
866
Transmission speed - 2.4GHz [Mb/s]:
300
Security:
WPA, WPA2, WPA3
2.4GHz MIMO:
2 x 2
5GHz MIMO:
2 x 2
Type of antenna:
Detachable
Detachable antennas:
7
Integrated 4G/LTE radio part:
Yes
4G/LTE bands support:
(1) 2100 MHz, (3) 1800 MHz, (7) 2600 MHz, (38) 2600 MHz, (40) 2300 MHz, (41) 2500 MHz, (42) 3500 MHz, (43) 3700 MHz, (71) 600 MHz
5G bands support:
(n1) 2100 MHz, (n3) 1800 MHz, (n7) 2600 MHz, (n38) 2600 MHz, (n40) 2300 MHz, (n41) 2500 MHz, (n77) 3700 MHz, (n78) 3500 MHz, (n71) 600 MHz
Connectors and Interfaces
WAN speed:
(1) 10/100/1000Mbps
RF connectors:
(2) RSMA female, (5) SMA female
LAN speed:
(3) 10/100/1000Mbps
SIM slot:
Yes
SIM slots quantity:
2
GPS modul:
Yes
Power
Power type:

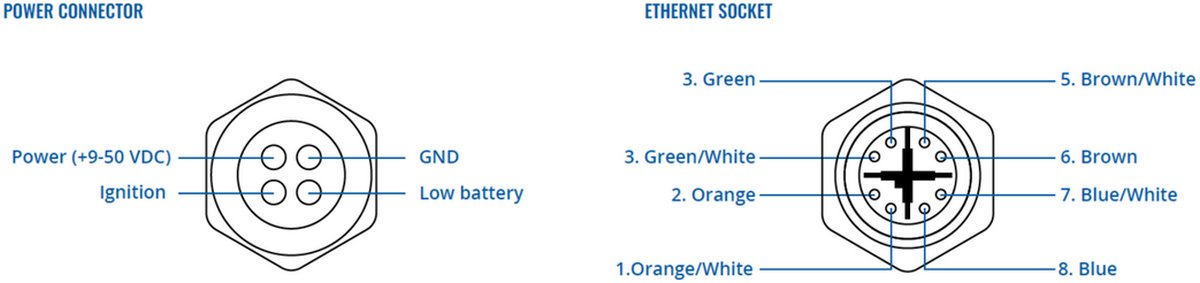

M12 A code 4-pin male connector
Max. power consumption [W]:
16
Power via connector/terminal:
9 .. 50V DC
Physical characteristics
Protection class:
IP30
Design:
Desktop, Industry
Purpose:
Indoor
Buttons:
Reset
Operating temperature [°C]:
-40 up to 75
Weight [g]:
550
Width [mm]:
167
Height [mm]:
46
Depth [mm]:
112
Hardware
CPU:
MIPS1004Kc
CPU frequency [MHz]:
880
Software
Supported VPN:
PPTP, L2TP, IPSec, OpenVPN, WireGuard, ZeroTier, GRE, Tinc
Operating mode:
Client, AP Router, Access Point, Cellular router
Management:
Web management, SSH, Teltonika RMS
Operating system:
RutOS (OpenWrt based Linux OS)
IPv6 support:
Yes
Default IP address:
192.168.1.1
Default login and password:
admin / (preset password, see label/engraving)
Product description

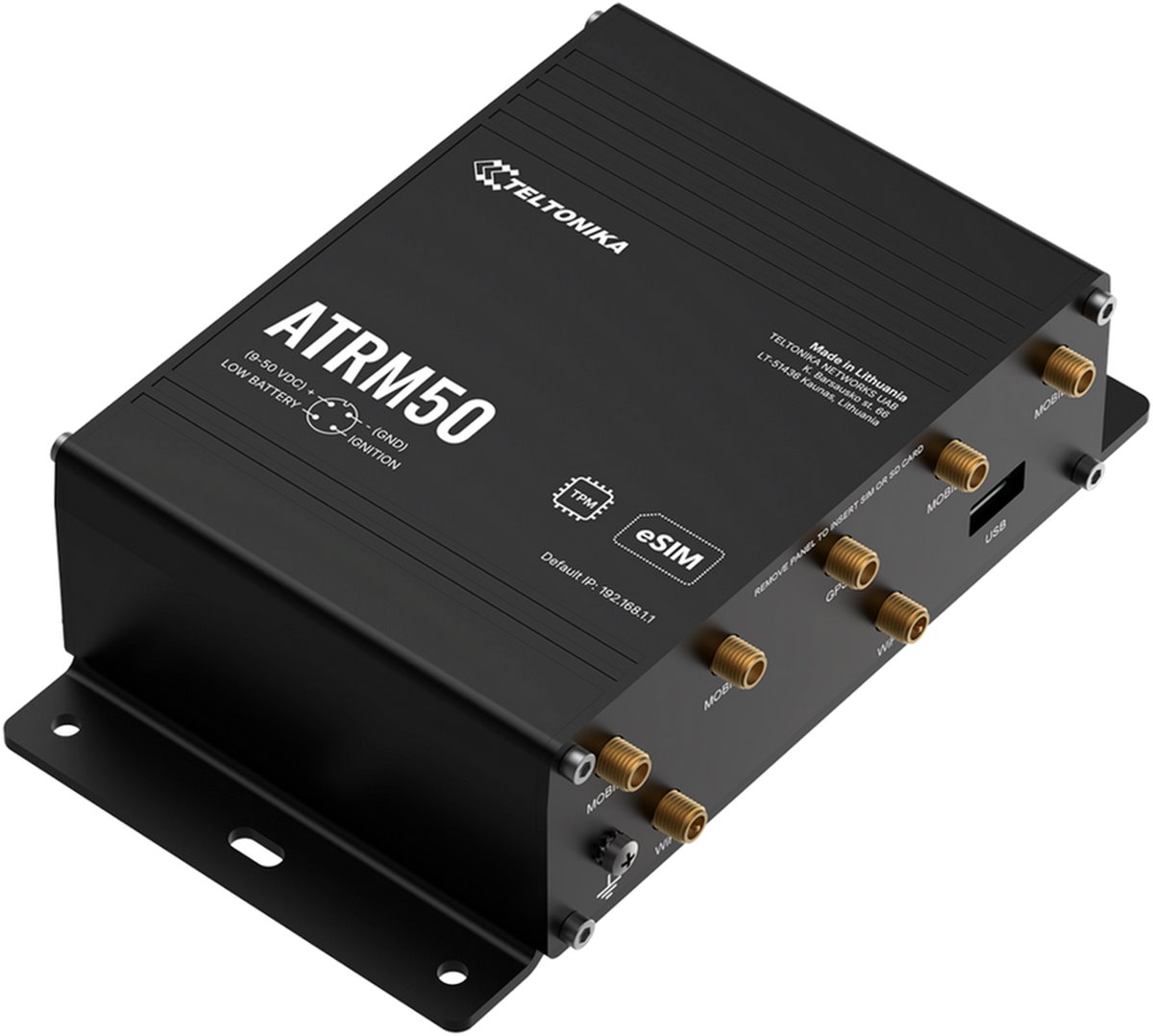

The ATRM50 is a rugged 5G router built for transportation, featuring 4× M12 Gigabit Ethernet ports and M12 power input for durable, secure connections. It delivers ultra-high cellular speeds up to 3.4 Gbps and supports dual SIM with eSIM™ for seamless failover. Certified to EN 45545-2 and EN 50155 standards, the ATRM50 is engineered to meet the rigorous safety and reliability requirements of railway systems—while also being a strong fit for other demanding transportation environments. The router comes with GNSS, an integrated mounting bracket, and is compatible with RMS for efficient on-site and remote management.
Key features

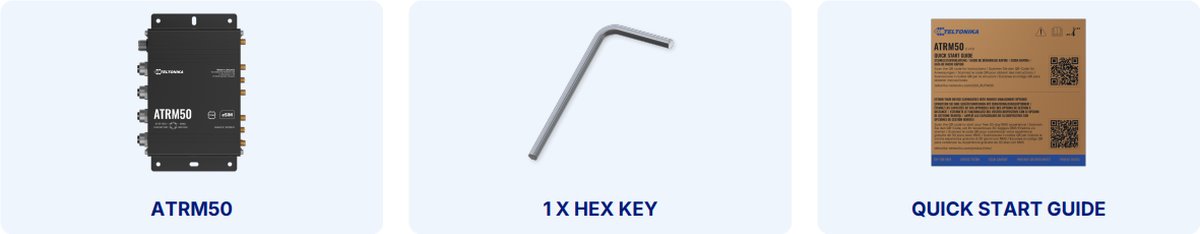

Package contents
Download
Datasheet Link to Quick Start Guide User ManualGPSR
