Ubiquiti Pro XG 48 PoE switch
Your price excl. VAT
2 003.62 EUR
| Recycling fee | 0.07 EUR |
|---|---|
| Your price with RF | 2 003.69 EUR |
| Your price incl. VAT (21%) | 2 424.46 EUR |
| blank |
Availability
at our branches
at our branches
| Manufacturer |
Ubiquiti |
|
|---|---|---|
| Code | 10904519 | |
| Part No. | USW-Pro-XG-48-PoE | |
| Warranty | 24 months | |
You have a choice of 4 variantscompare all
PCU5E-1YW-MS
0.62 EUR excl. VAT
0.75 EUR incl. VAT
In Stock
PCU5E-5-MSC
3.70 EUR excl. VAT
4.48 EUR incl. VAT
In Stock
Parameters
Download
GPSR
Technical parameters
Connectors and Interfaces
LAN speed:
(16) 2.5G/1G/100M/10M + (32) 10G/5G/2.5G/1G/100M/10M
Optical interfaces:
(4) 1/10/25Gbps
Other features:
Touchscreen
Power
Power type:
Mains power (230V)
PoE type:
PoE-Out (only)
PoE-Out standards:
802.3af, 802.3at, 802.3bt
Redundant power supply:
Yes
PoE Out ports:
48
PoE budget [W]:
1080
Max. power consumption [W]:
200
Power via connector/terminal:
230V AC
Physical characteristics
Design:
Rackmount
Fans:
Yes
Chassis design:
Metal
Buttons:
Reset
Operating temperature [°C]:
-5 up to 40

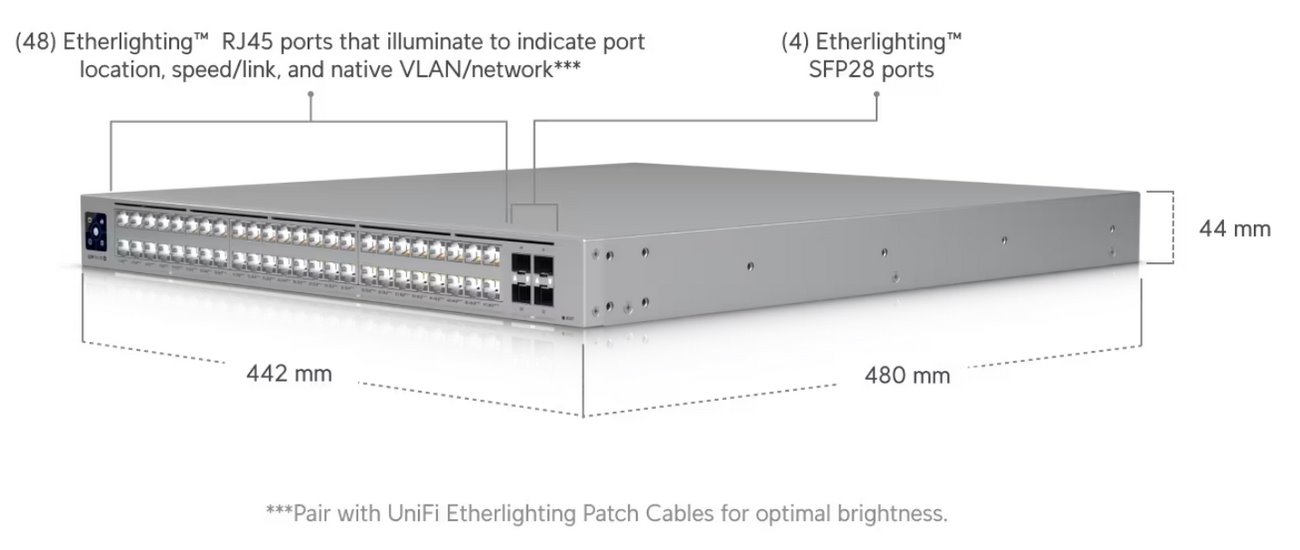

Width [mm]:
442
Height [mm]:
44
Depth [mm]:
480
General
Switchning capacity [Gbps]:
920
MAC address table:
128000
Packet forwarding rate [Mpps]:
684
Software
Management:
UniFi Network
Features:
VLAN, DHCP snooping, L2, L3
Default IP address:
192.168.1.20, Dynamic from DHCP
Default login and password:
ubnt / ubnt
Product description

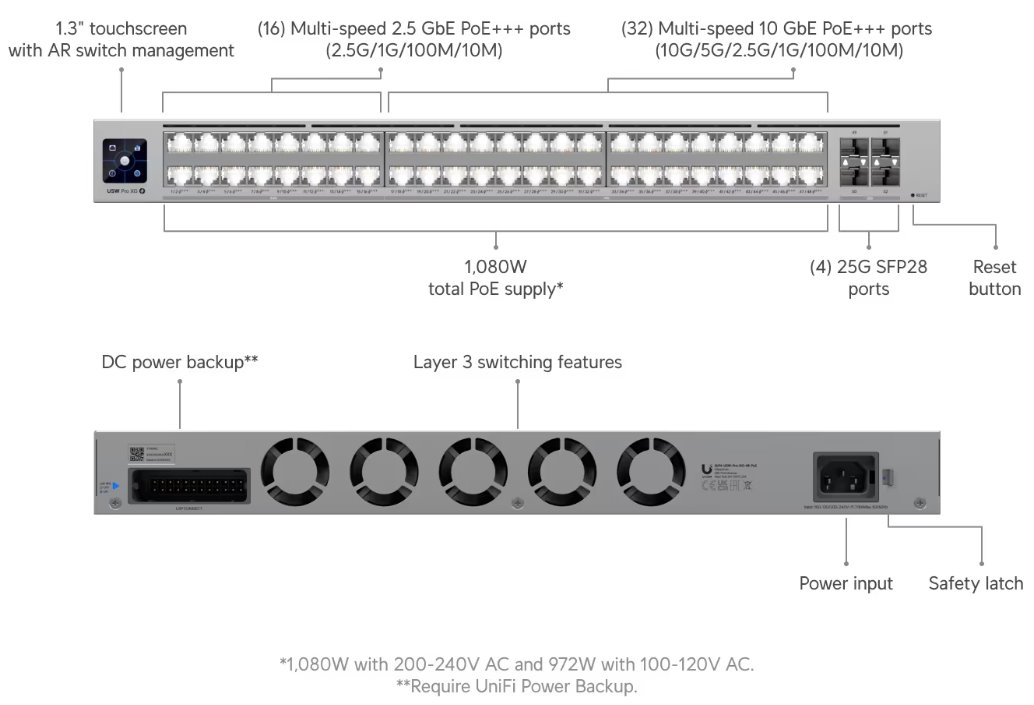

The UniFi Switch USW-Pro-XG-48-PoE is a managed L3 PoE switch with a switching capacity of 920 Gbps, (16) 2.5-Gigabit LAN, (32) 10-Gigabit LAN ports and four SFP28 (25G/10G/1G) ports. All Ethernet ports support PoE+++ 802.3af/at/bt PoE-Out with an output power of up to 90W/port and a total PoE budget of 1080 W. The ports feature Etherlighting, allowing you to illuminate ports with colors to show port location, speed/connection, and VLAN. The switch is powered via 230V AC, and the USP RPS DC port serves as a backup in case of primary power failure. Maximum power consumption including PoE is 1280W.
Key Features
Management via UniFi Network Server
The USW-Pro-XG-48-PoE does not have a web-based management interface but is centrally managed using the UniFi Network Server with support for the UniFi mobile app. It offers an extensive suite of advanced L2 and L3 switching protocols and features, including per-port operation modes (switching, mirroring, or aggregation). The UniFi Network Server and mobile app allow administrators to configure and monitor virtually all switch functions via a graphical user interface from anywhere.

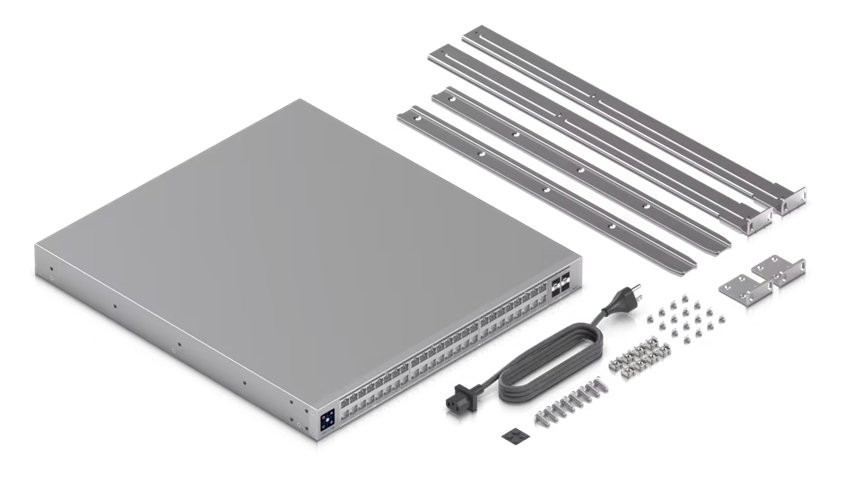

Package Contents
Download
Datasheet Qucik GuideGPSR
