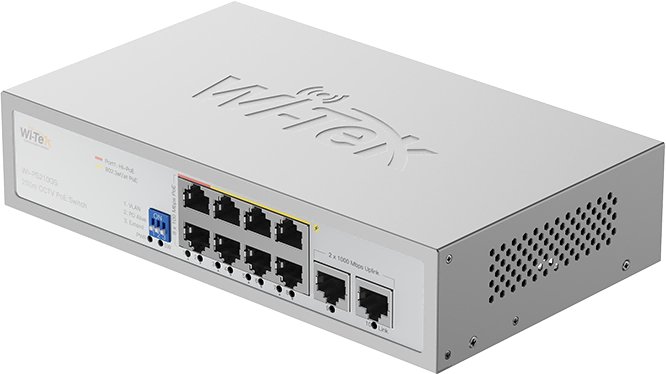

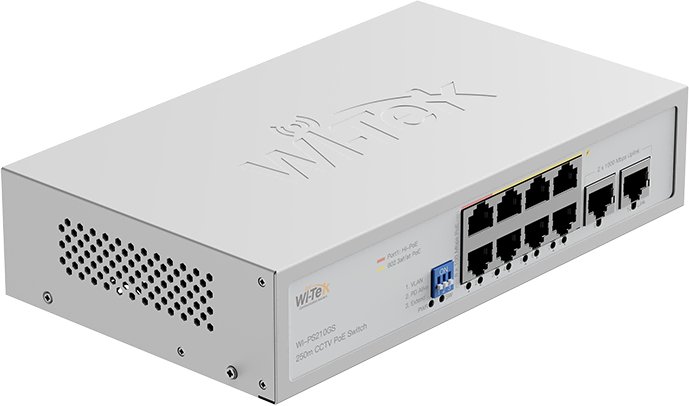

Wi-Tek WI-PS210GS (V2) PoE switch, 8x PoE

Product description

Wi-Tek WI-PS210GS (V2) is an unmanaged PoE switch with (10) ports in a combination of (2) 1Gbps UP-link ports and (8) 100Mbps PoE-OUT ports. The first PoE-OUT port supports powering devices with up to 60 W per port thanks to Hi-PoE technology, while the remaining seven PoE-OUT ports provide PoE 802.3af/at up to 30 W per port. The total PoE budget is 95 W. The switch is ideal for applications where you need to connect and power devices such as IP cameras (including PTZ) or IP phones.

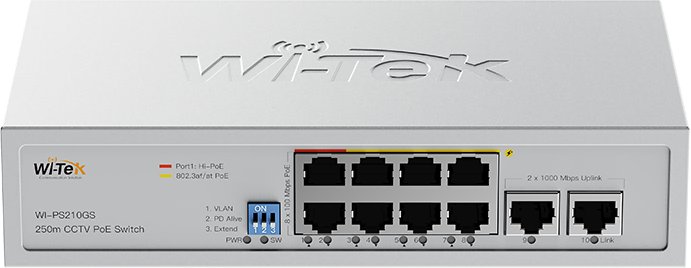

DIP Switch for Mode Selection

The DIP switch on the front of the switch allows you to select modes so that the switch can adapt to the needs of your network:

• 1. VLAN: Port isolation – PoE ports can send data only to the up-link port.
• 2. PD Alive: PoE watchdog that can detect and restart non-responsive devices powered via PoE.
• 3. Extend: The transmission distance of PoE ports can reach up to 250 m when the link speed is reduced to 10 Mbps.

Package Contents

• Device
• Power cable
• Quick Installation Guide
