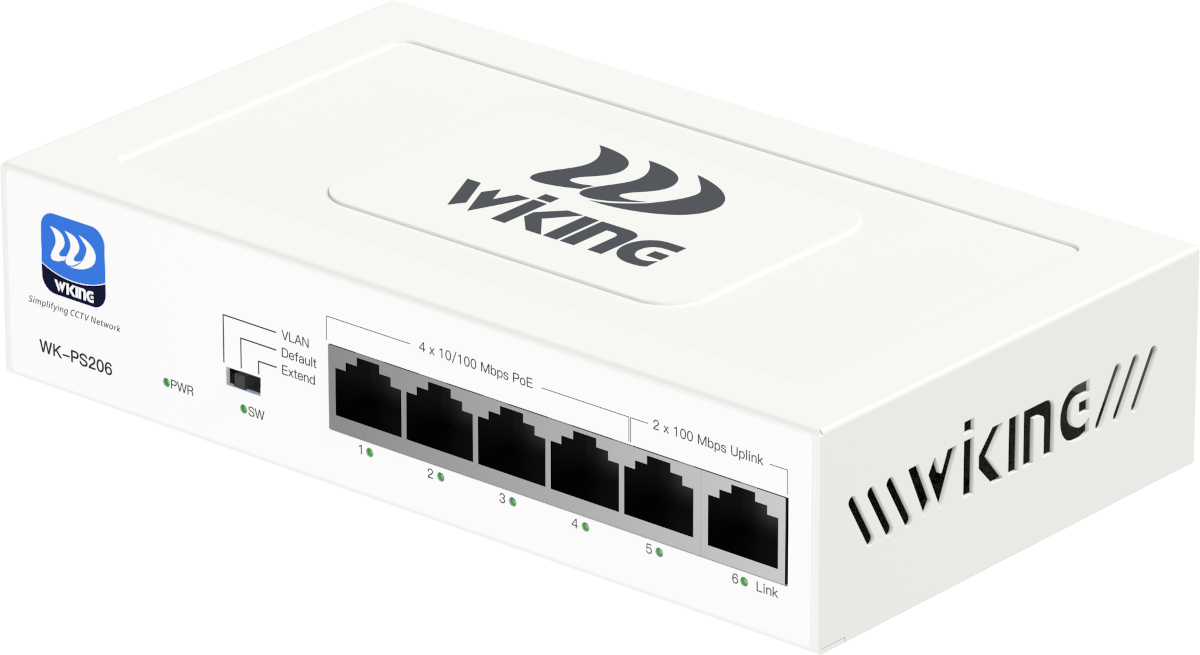

Wiking WK-PS206 PoE switch, 6x LAN/4x PoE, 45W

Product description

The WK-PS206 is a compact and cost-effective 100Mbps PoE switch, ideal for small to medium-sized surveillance systems or IP networks. It offers 4 PoE ports supporting IEEE 802.3af/at (up to 30W per port) and 2 uplink ports for connecting to the backbone network. With features like VLAN, Extend mode, and PoE watchdog, it delivers a smart and reliable networking solution. It’s the perfect choice for users looking for a simple and functional way to power and transmit data to surveillance systems, IP phones, or Wi-Fi access points without the need for extra splitters or configuration.

Key Features:

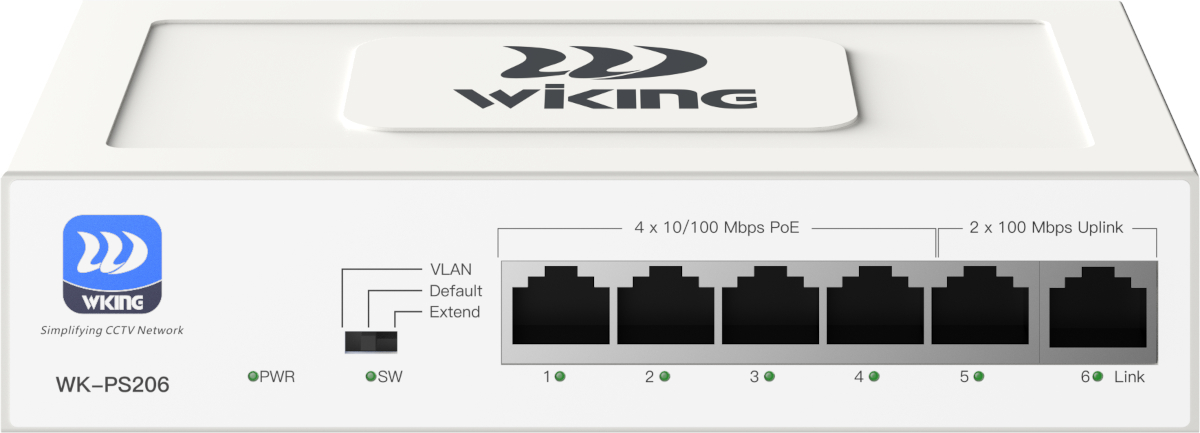

• 4× PoE ports (10/100 Mbps) supporting 802.3af/at standards – up to 30W per port, total PoE budget 45W
• 2× uplink ports (10/100 Mbps) for connection to network or NVR
• Extend mode – data and power transmission up to 250 meters (speed reduced to 10Mbps)
• VLAN mode – port isolation for enhanced network security
• PD Alive (PoE watchdog) – automatically restarts unresponsive IP devices
• Fanless silent design – ideal for offices, hotels, and quiet environments

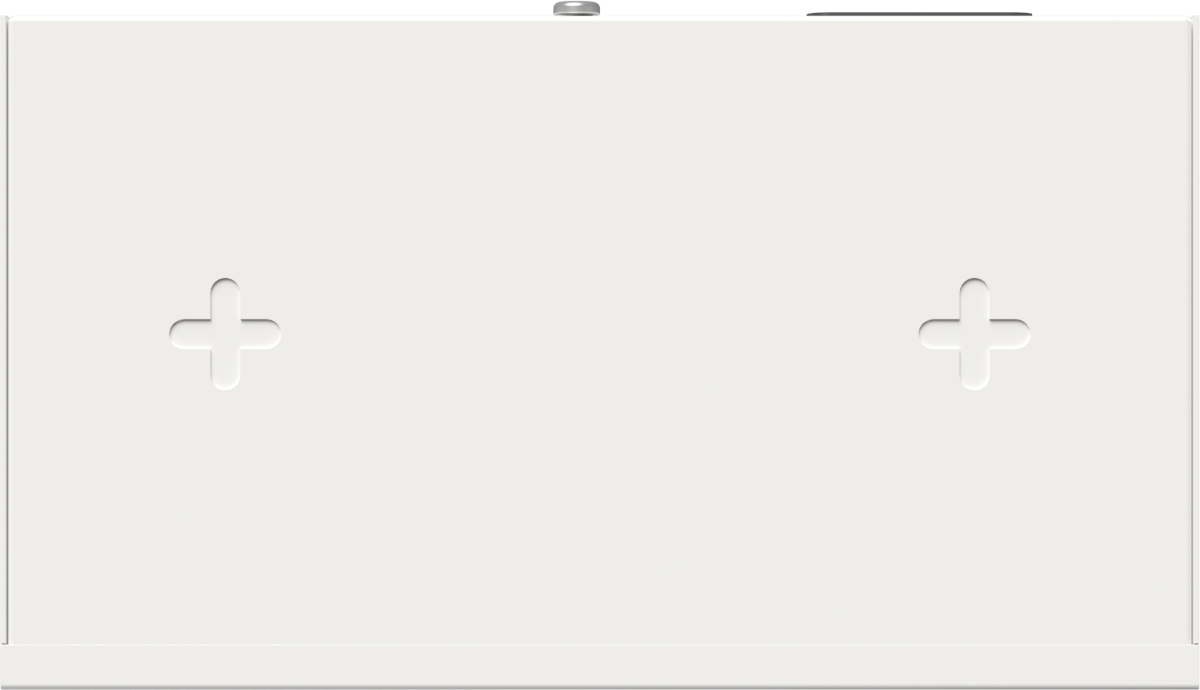

• Compact metal casing – suitable for desktop or wall mounting

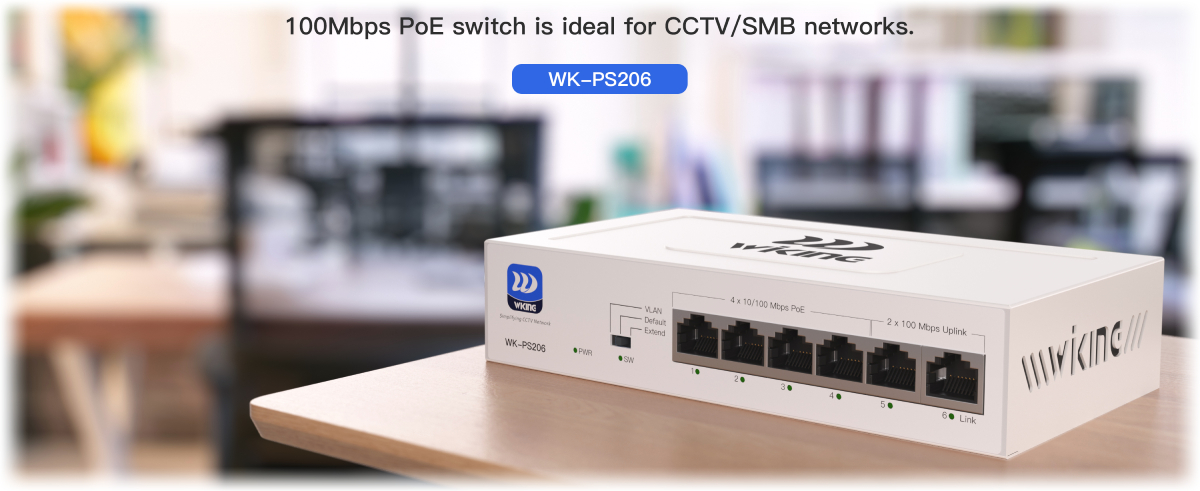

A Switch for Every Office

Compact size, silent operation, easy to use – an ideal network solution for modern workspaces.

Port Isolation for a Stable, Interference-Free Network

In VLAN mode, individual PoE ports are isolated and can only communicate with the uplink ports. This prevents unnecessary broadcast traffic between devices, protecting the network from so-called "broadcast storms" and improving reliability and data security.

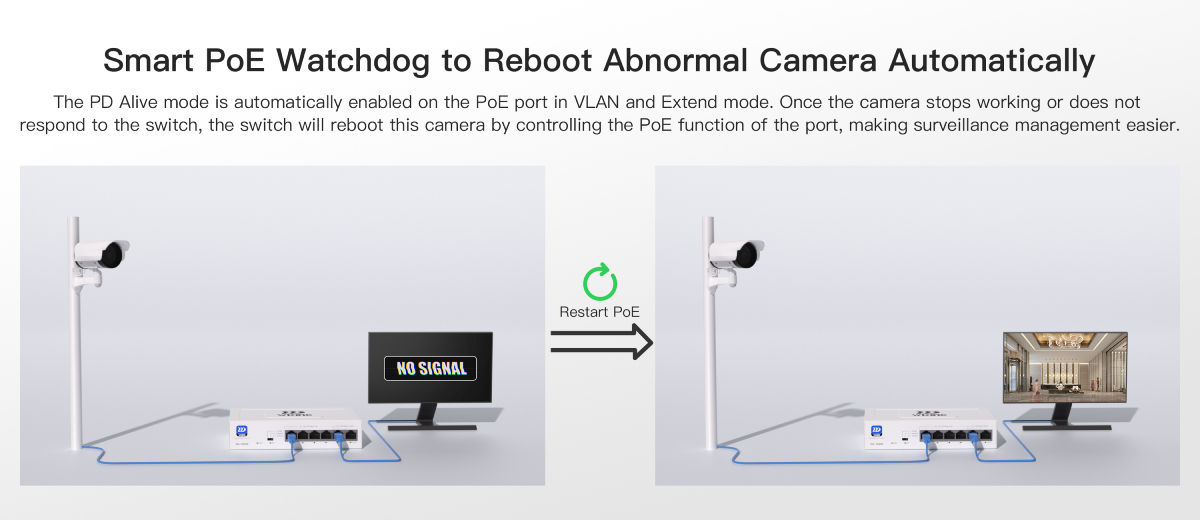

Smart PoE Watchdog – Camera Offline? The Switch Restarts It Automatically

The PD Alive function automatically detects if a connected device (e.g., IP camera) is responding. If not, the switch will power-cycle the port to restart the device. This ensures continuous surveillance system operation without the need for manual intervention.

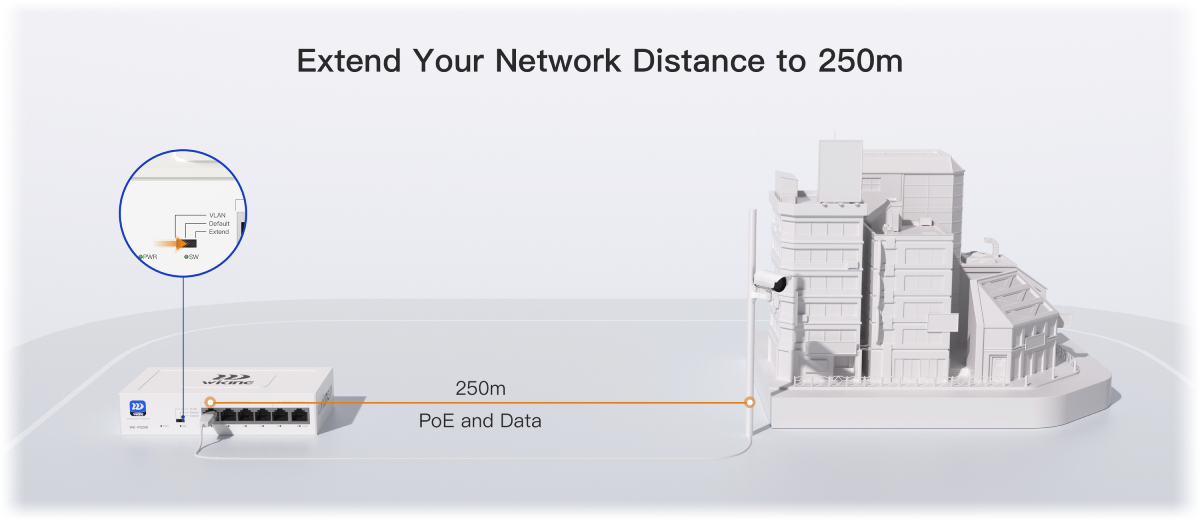

PoE Range Extension up to 250m

In Extend mode, the switch can transmit power and data up to 250 meters (at reduced speed of 10 Mbps). Perfect for deploying cameras across large areas where standard PoE’s 100m limit would be insufficient.

Fanless and Silent – Perfect for Office Use

Thanks to its fanless passive cooling, the switch operates completely silently. It’s ideal not just for racks, but also for placement on office desks, receptions, or in small businesses.

Package Contents:

• PoE switch WK-PS206
• 230 VAC power cable
• Quick installation guide
