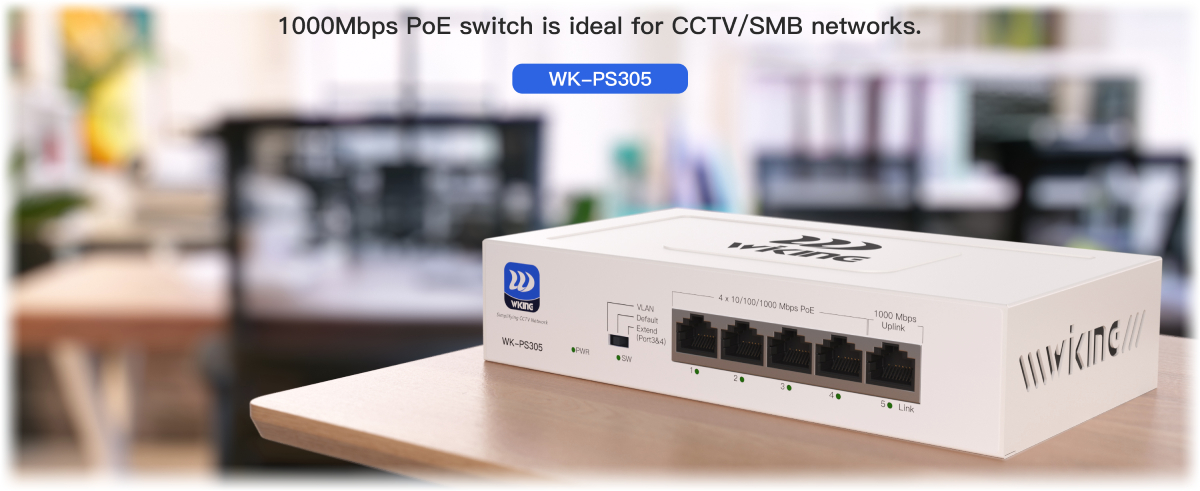

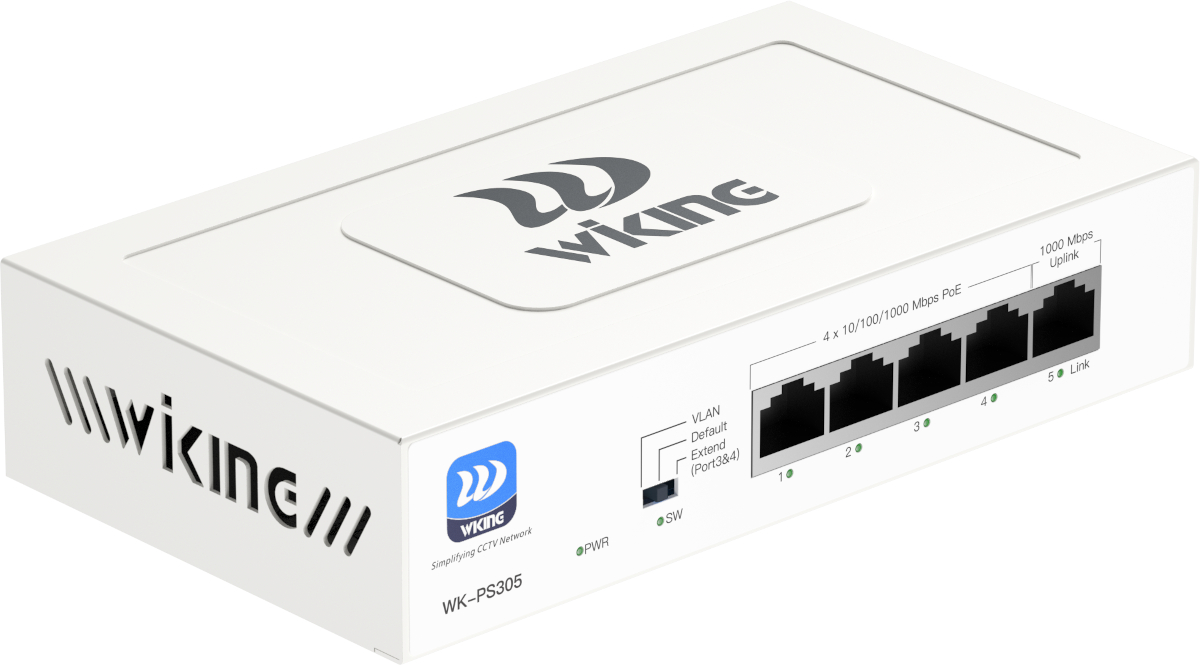

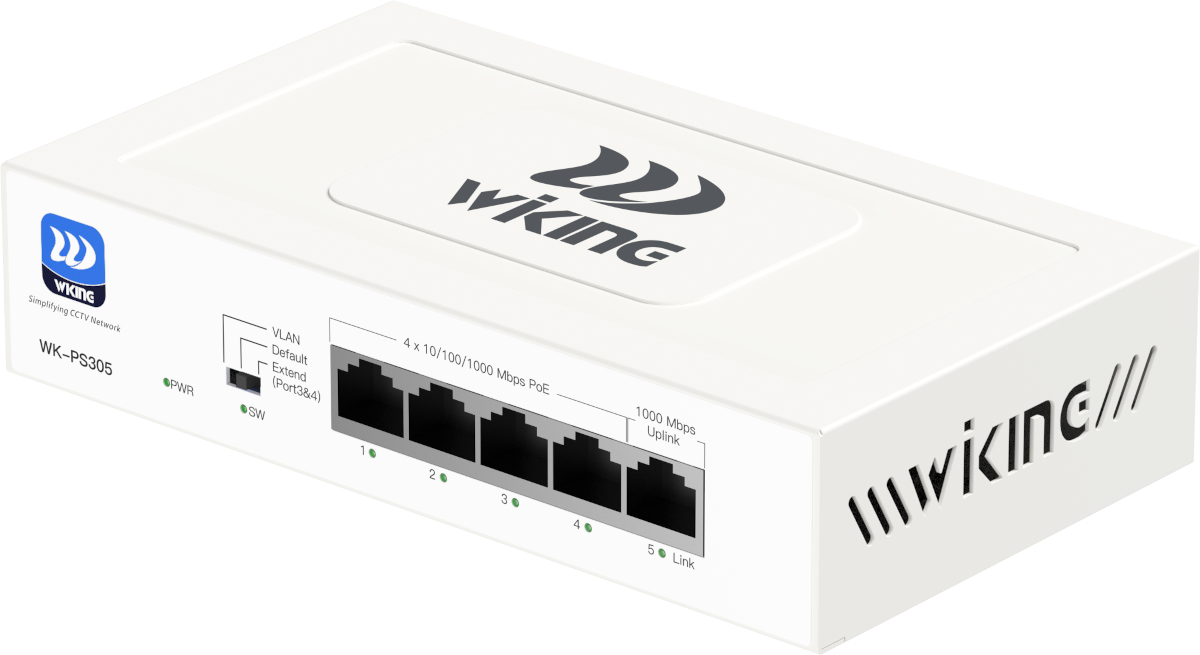

Wiking WK-PS305 PoE switch, 5x LAN/4x PoE, 1Gb, 45W

Product description

The WK-PS305 is a compact and cost-effective 1Gbps PoE switch, ideal for small to medium-sized surveillance systems or IP networks. It features 4 PoE ports supporting IEEE 802.3af/at (up to 30W per port) and 1 uplink port for connection to the backbone network. With smart features such as VLAN, Extend mode, and PoE watchdog, it provides a reliable and intelligent solution for network infrastructure. It’s an ideal choice for users seeking a simple and functional solution for powering and transmitting data to surveillance systems, IP phones, or Wi-Fi access points without the need for additional splitters or configuration.

Key Features:

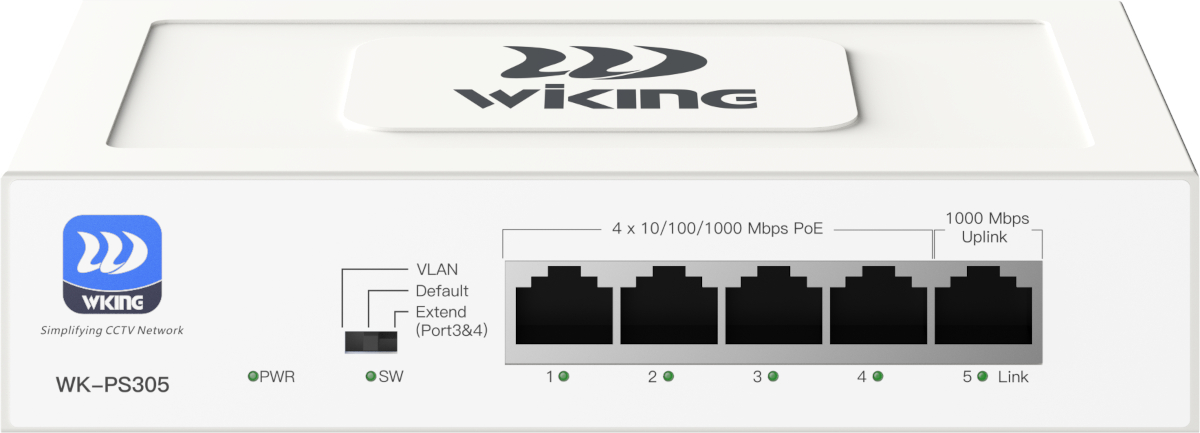

• 4× PoE ports (10/100/1000 Mbps) supporting 802.3af/at standards – up to 30W per port, total PoE budget 45W
• 1× uplink port (10/100/1000 Mbps) for network or NVR connection
• Extend mode – data and power transmission up to 250 meters (speed limited to 10Mbps), valid for ports no. 3 and 4 only
• VLAN mode – isolation between PoE ports for enhanced network security
• PD Alive (PoE watchdog) – automatic restart of unresponsive IP devices
• Silent fanless design – ideal for offices, hotels, and other quiet environments

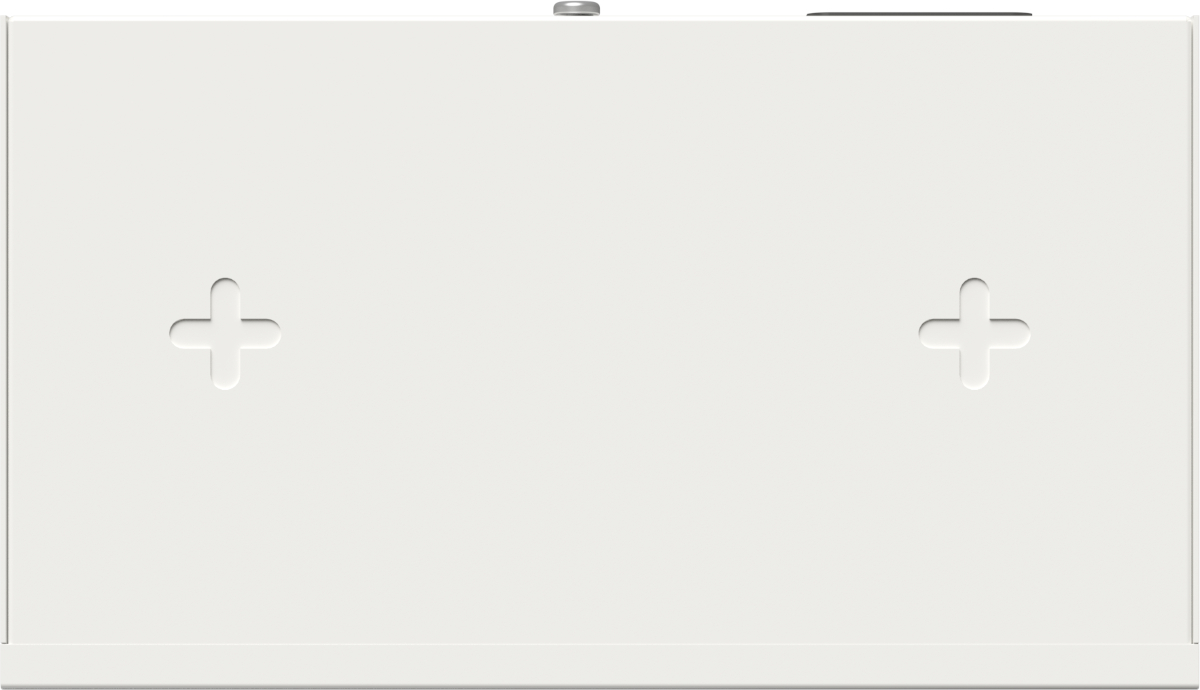

• Compact metal housing – suitable for desktop placement or wall mounting

A Switch for Every Office

Compact size, silent operation, easy to use – the ideal networking solution for a modern work environment.

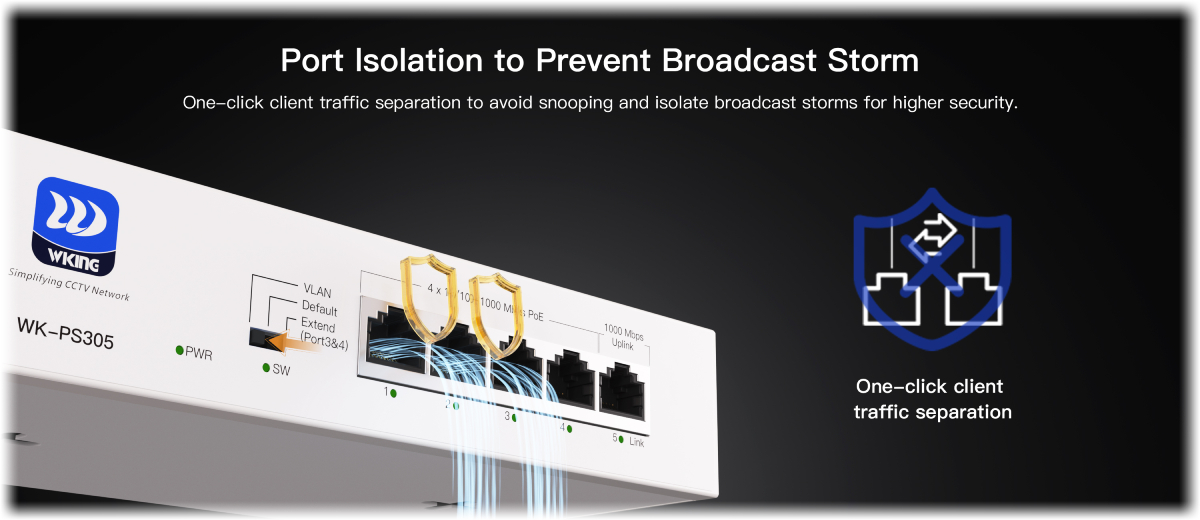

Port Isolation for a Stable, Interference-Free Network

In VLAN mode, individual PoE ports are isolated and can communicate only with the uplink port. This prevents unwanted broadcast traffic between devices, protecting the network from overload caused by "broadcast storms" and increasing overall reliability and security of transmission.

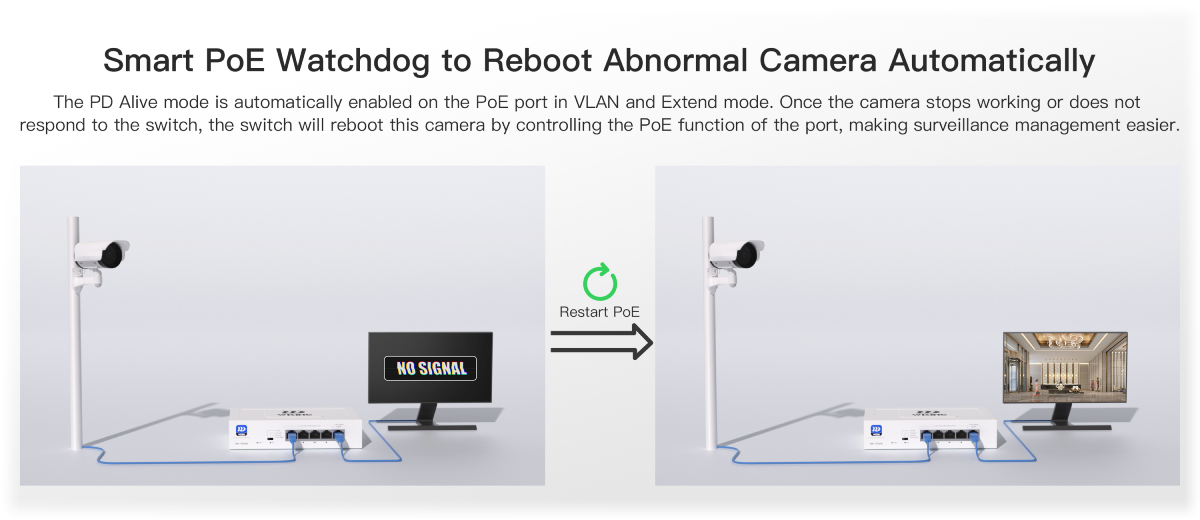

Smart PoE Watchdog – Camera Offline? The Switch Automatically Restarts It.

The PD Alive function automatically detects whether the connected device (e.g., IP camera) is responsive. If the camera stops responding, the switch will automatically power it off and on again. This ensures uninterrupted operation of the surveillance system without administrator intervention.

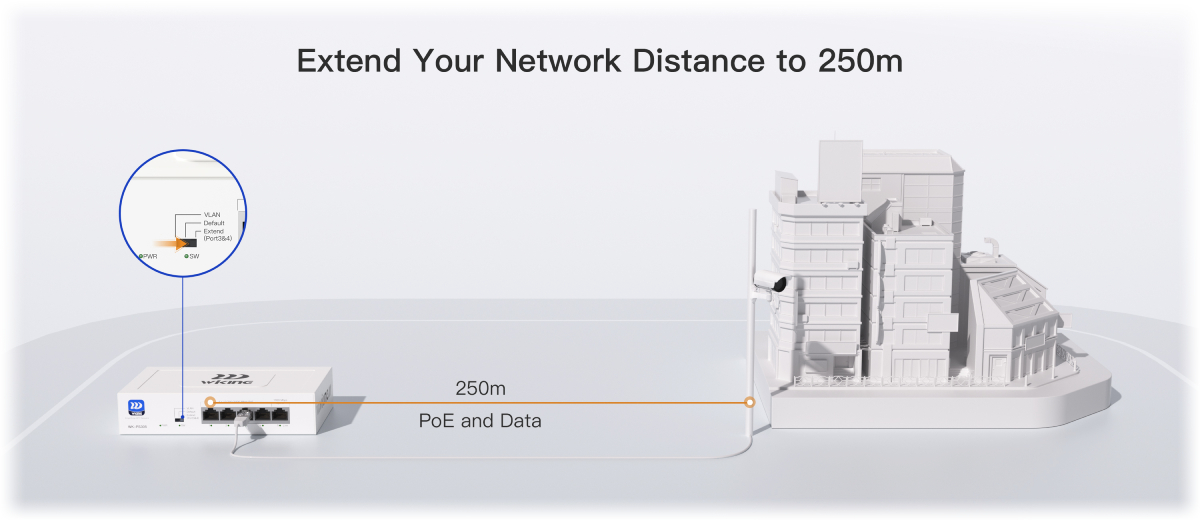

Extend PoE Range up to 250m (Only for Ports No. 3 and 4)

In Extend mode, the switch can supply power and data to a device up to 250 meters away (with a speed limit of 10 Mbps). This is ideal for deploying cameras in larger areas where standard PoE is limited to 100m.

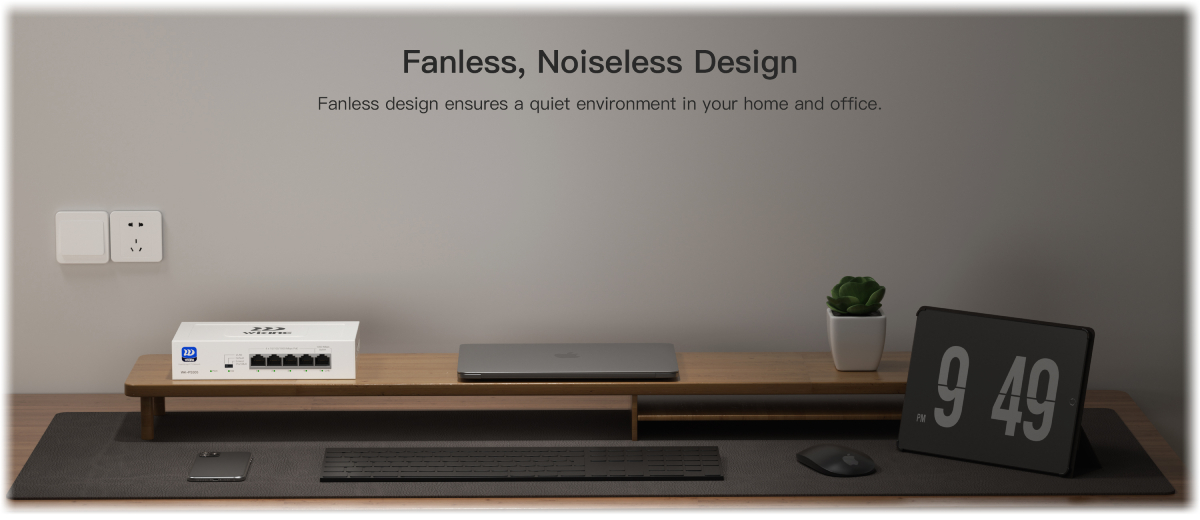

Fanless and Quiet – Perfect for Office Use

Thanks to fanless passive cooling, the switch is completely silent. It is suitable not only for installation in racks but also for placement directly on a desk in an office, reception, or small business.

Package Contents:

• PoE switch WK-PS305

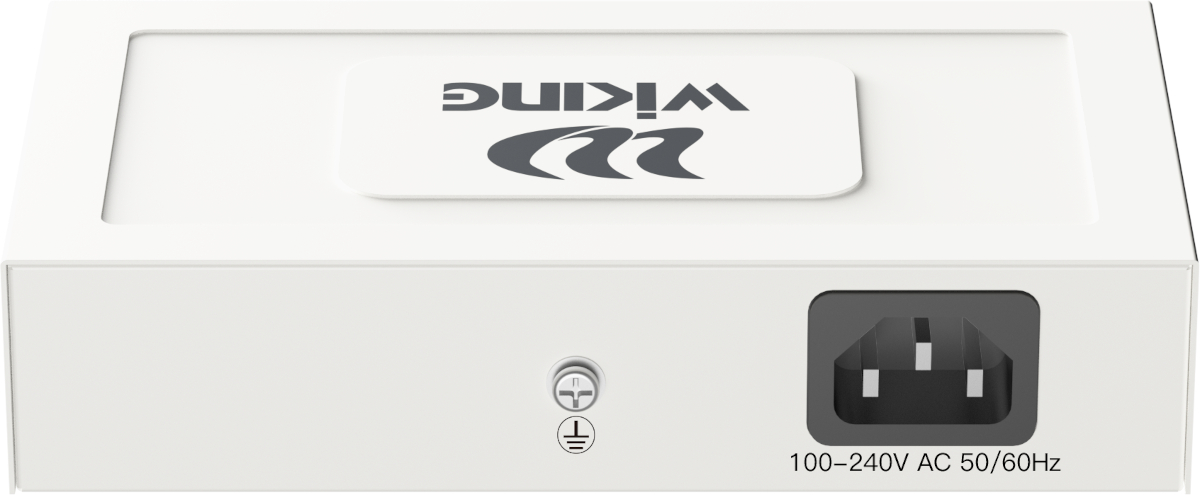

• 230 VAC power cable
• Quick installation guide
